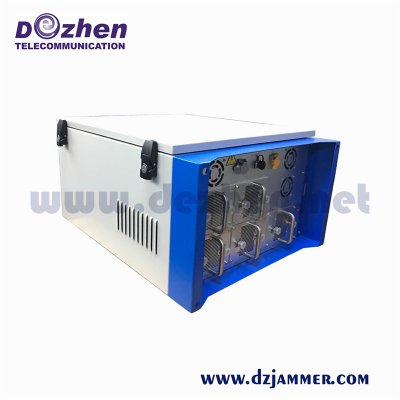

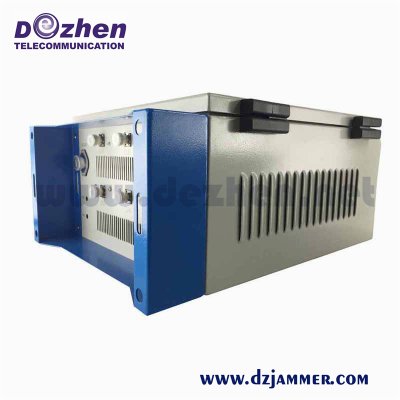

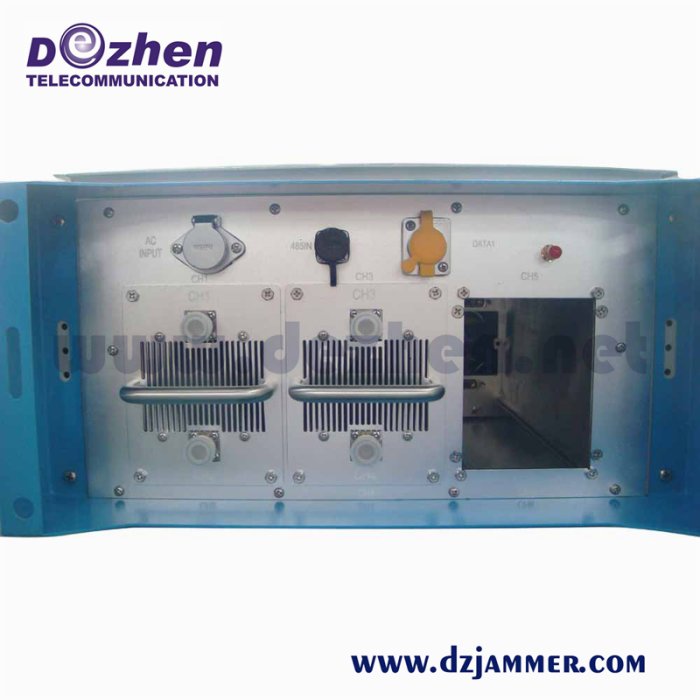

Wireless Control 6 Bands 530W 4G Phone Signal Jammer up to 600m
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Waterproof Outdoor Signal Jammer |
| Channel Number | 6 |
| Each Bands Power | 100W |
| Total Output Power | 530W |
| Jamming Range | 25-300m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product Description
Prisons Jammers up to 6 bands 530W with wireless control system. Jamming up to 600m
Especially for prisons and other large sensitive locations such as military or governmental compounds.
It can also use in Oil and Gas Storage Facilities and fields, Security Services, Military Units, Secret Services, Museums, Factory, Border Patrol and Drug Enforcement, Customs, etc.
- Remote PC control with software to Turn each jammer, each band or the whole jammer system ON/OFF, VSWR Alarm in a wireless setup (RF module). Each unit offers a key lock support & mounting hardware
Advantages & Features
1. Each unit can jam up to 6 frequency bands simultaneously.
2. Continuous operation even in hot climates with no time limit
3. Design for outdoor installation.
4. Secure design to avoid sabotage.
5. Antenna type options - Omni or directional antennas.
6. Selection of antennas to provide more flexibility regarding jamming coverage.
7. PC remote control
6 Bands up to 600m:
| CDMA-800 850-894Mhz 100W, |
| GSM-900 935-960MHz 100W, |
| 2G 1900 1805-1990MHz 100W, |
| 3G 2110-2170MHz 100W |
| 2620-2670MHz: 30W or 800MHz:100W |
| 1520-1670MHz: 30W or 2400-2500MHz:30W |
Total RF output power 530W
Option:
| 450-470MHz 50W, |
| WiFi 2400-2500MHz:30W |
| GPS L1 1575MHz:30W |
| 4G LTE 2620-2690MHz:30W |
| VHF 130-180MHz :50W, |
| UHF 420-480MHz:50W |
6 Bands External Antenna
Power Supply AC220V/ 110V DC27-28V
Power consumption 100/200Watts
Jamming Range 400M or 600M
Based on back ground signal strength<=-75dBm
Operation 24 hrs / 7 days a week
Dimension 72 x 45 x 32 cm Weight 42 Kg.
RF Range - Adjustable
Product Installation Standard UL (E190582) CSA (LR 112971 Level 3)
• Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.• Heat sink designing combing with the fans to make system in a cooling status.
• Special technology to prevent interference between each frequency band.
• Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
• Frequency bands and output power selectable.
• Each frequency band controlled by independent RF ON/OFF switches.
• Power of each frequency band can be adjustable independently.
• Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
• Antenna type options, directional or Omni-directional antennas option.
• Easy operation and installation.
• Keep for upgrade module installation.
• Working 24 hours/365days continuously.
Wireless Control System: Jail Jammer System Software
1) Each unit have a control I/O Board (RF module) with hard relays (for alarm trigger) via wireless output for 2-8 data transmission to control of all functions of each unit.- to be controlled via software program on remote PC workstation by wireless
2) Each Unit be able to send Alert to the remote control PC workstation by wireless, if any of the RF frequency bands fails individually from each of the units (VSWR Alarm: Antennas Lost Connection, Module Failure)
3) All units have individual digital ID to identify them through the PC workstation.
4) The wireless data will travel to converter in main office and then convert to RS232 so it can then communicates with a PC workstation computer.
5) The software can Turn On/Off, each band, each jammer or the whole jammer system
6) Jammer Unit housing unit is waterproof and heat sink
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year :5% of total for each years. |
