Waterproof High Power 2G 3G 4G WIFI Cell Phone Jammer (for Prison) Jamming rang up to 300 meters
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Waterproof Outdoor Signal Jammer |
| Channel Number | 12 |
| Each Bands Power | 50W |
| Total Output Power | 600W |
| Jamming Range | 25-300m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Key Specifications/ Special Features:
Product Description

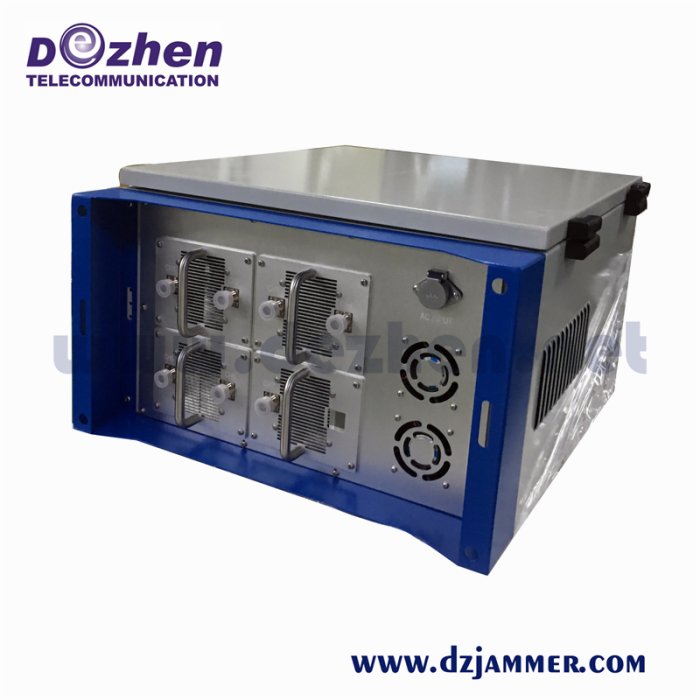

The 8 Bands Waterproof Adjustable High Power Phone Jammer for Prison is specially customized to accommodate a fully integrated broad band jamming system which provides the ultimate solution for Prison Military and Police convoys or VIP protection. The 8 modules are controlled separately and they also can work simultaneously.
Each module with antenna can be used as a single jammer. The prison jammer is waterproof and portable, the jammer case is our patent design, it can be installed in desert and more rain of bad weather. The Frequency band is optional. And the high power jammer is with excellent heat dispersion.
Main Function
• High-power portable multi-band jammer.
• Fully modular compact design with extremely high efficiency cooling system provides system stability even in extreme climate conditions. The modular design also facilitates easy maintenance, repairs and upgrades.
• Jam up to six different jamming modules simultaneously, covering up to 20 different frequency bands.
• Increased total RF output power up to 400 Watts.
• Equipped with a wired remote control unit. The operator can ON/OFF each module through the wired remote control.
• Fully portable trolley-type case for easy transportation and rapid deployment.
• Supplied by AC mains or DC power source.
• The jamming system has an active smart cooling system in a continuous working cycle.
• Based on our general design, we can further customize our systems for client-specific scenarios both for military and civil applications in order to provide the best individualized solution.
• Upgraded jamming signal source (DDS technology) to provide utmost efficiency.(option)
• Field programmability for rapid adjustment to frequency and output power. (option)
• Remote control can control each module working frequency, output power, etc. (option)
• Backup battery system and generator system are optional. (option)
Specifications
Output InterfaceRF Frequency Band(MHz)ApplicationRF Output Power (Watt)
Affect frequency:
CH1 -CDMA/GSM: 851-960MHz
CH2 -DCS: 1805-1880MHz
CH3 -PCS: 1920-1990MHz
CH4 -3G: 2110-2170MHz
CH5 -4G LTE: 725-770MHz(US)
CH6 -4G LTE: 790-826MHz(EU)
CH7 -4G Wimax: 2345-2400MHz(US)
CH8 -4G Wimax: 2620-2690MHz(EU)
CH9 -WiFi: 2400-2500MHz
Total RF Power :400Watt, Max: 450Watt
Power supply :AC220V
Shielding area: 50-300m according to signal density of mobile network
Cooling System :Systematic Smart Cooling System
System Protection :VSWR, Over-voltage, Over-current
Jamming Source: PLL Source Te
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year :5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
