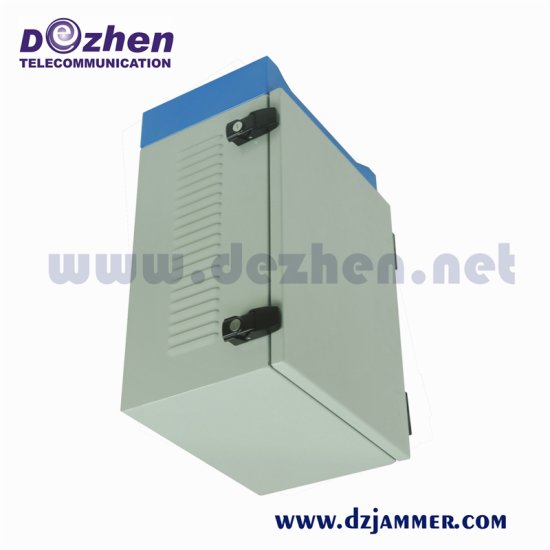

VIP Protection Security Waterproof Outdoor High Power GSM 3G 4G 5G Cell Phone Signal Jammer
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Waterproof Outdoor Signal Jammer |
| Channel Number | 12 |
| Each Bands Power | 50W |
| Total Output Power | 600W |
| Jamming Range | 25-300m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product Description:
A big merit of this rockmount high power cell phone signal jammer is that each band can adjust RF power output level or turn off without influencing the other bands' operation.
The original antenna is external double channel directional panel antennas and you can select antennas to provide more flexibility regarding jamming coverage. The jamming coverage of this jammer is so strong that the jamming range could reach 500m, but the jamming range is also determined by the strength of signal in given area.
Specification:
Affected Frequency Ranges: (12bands option)
| Output Interface | Output Frequency | RF Output watt |
| CH1 | 20-80mhz | 100W |
| CH2 | 80-200MHz | 100w |
| CH3 | 200-500MHz | 100w |
| CH4 | 500-1000MHz | 50w |
| CH5 | 1000-1500MHz | 50w |
| CH6 | 1500-2000MHz | 50w |
| CH7 | 2000-2500MHz | 50w |
| CH8 | 2500-3000MHz | 50w |
| CH9 | 850-960MHz | 50w |
| CH10 | 1805-1880MHz | 50w |
| CH11 | 1880-1990MHz | 50w |
| CH12 | 2010-2125MHz | 50w |
| Total output power | 600~1200W | |
| Jamming range | up to 500m,still depends on the strength signal in given area | |
| Jammer Module Number | 12 | |
| External double channel directional panel antennas | all the TX frequency covered down link only | |
| Power supply | 50 to 60Hz, 100 to 240V AC | |
| With AC adapter | (AC100-240V-DC27V) | |
| Dimension | 420×480×130 mm | |
| Design | Customized Jammer | |
| HS Code | 8543709200 | |
| Packing | Neutral Packing | |
We could supply customized service by your detail requirements about frequencies setting. All 6-12
Frequency modules we can mix very flexibly.
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Application:
Built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,
SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,hostage negotiations,border control,etc...
Monitor software function: (Option)
· Remote control switches of each machine.
· Remote viewing each machine working state.
· The power output of each machine remote adjustment.
· Remote viewing offline log of each machine.
· Mail receiving each machine working state.
· The system can set permissions to log on.
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
Accessories
High Power Cell Phone Signal Jammer
Antennas
Power cable
