Product Description:
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Waterproof Outdoor Signal Jammer |
| Channel Number | 12 |
| Each Bands Power | 50W |
| Total Output Power | 600W |
| Jamming Range | 25-300m |
| Application | Military Units, Prison, Police, Bomb Disposal |

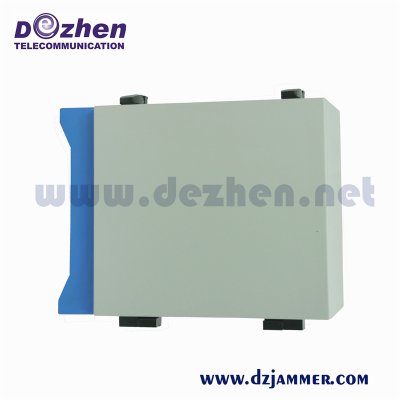

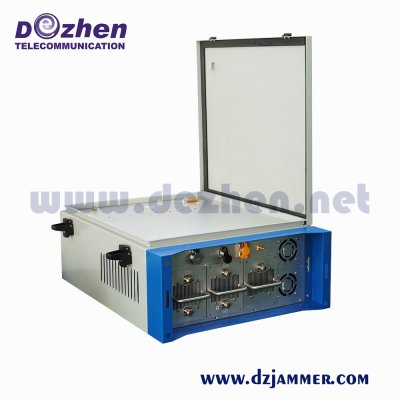

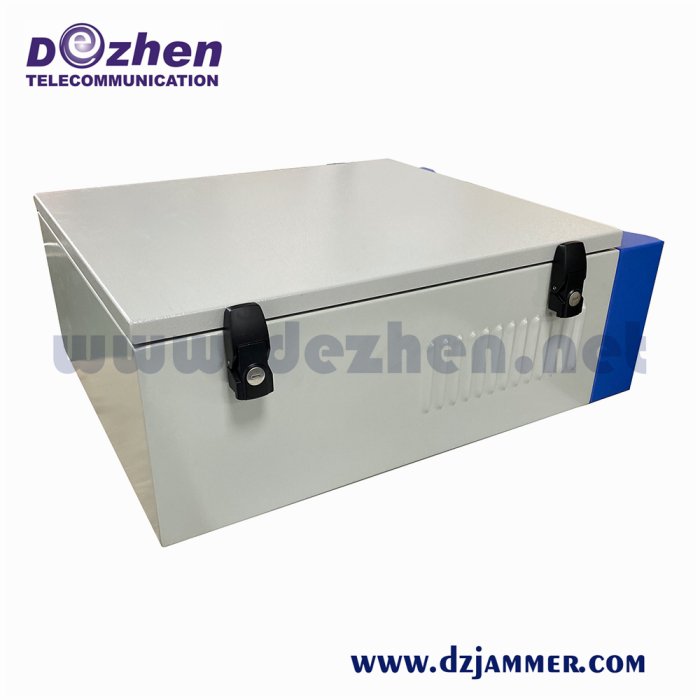

Military 12 Bands Full Frequency VIP Protection Security High Power Waterproof Outdoor Jammer
Product Description:
Equipped with special high gain directional planar antenna or fiberglass omni-directional whip antenna,the jammer can effective block CDMA/GSM/DCS /3G/ LTE/WIMAX / Wifi /GPS.
Use the overseas advanced chip and technology . With independent modular design, it keeps high operation efficiency, and avoid mutual interference.
100 watts per band, total RF power 600 watts, also with power adjustable switches to control the radius range.
It is suitable for prisons, detention houses, military bases, large oil fields and all other outdoor places where need the signal to block.
Specification:
Affected Frequency Ranges: (12bands option)
| Output Interface | Output Frequency | RF Output watt |
| CH1 | 20-80mhz | 100W |
| CH2 | 80-200MHz | 100w |
| CH3 | 200-500MHz | 100w |
| CH4 | 500-1000MHz | 50w |
| CH5 | 1000-1500MHz | 50w |
| CH6 | 1500-2000MHz | 50w |
| CH7 | 2000-2500MHz | 50w |
| CH8 | 2500-3000MHz | 50w |
| CH9 | 850-960MHz | 50w |
| CH10 | 1805-1880MHz | 50w |
| CH11 | 1880-1990MHz | 50w |
| CH12 | 2010-2125MHz | 50w |
| Total output power | 600~1200W | |
| Jamming range | up to 500m,still depends on the strength signal in given area | |
| Jammer Module Number | 12 | |
| External double channel directional panel antennas | all the TX frequency covered down link only | |
| Power supply | 50 to 60Hz, 100 to 240V AC | |
| With AC adapter | (AC100-240V-DC27V) | |
| Dimension | 420×480×130 mm | |
| Design | Customized Jammer | |
| HS Code | 8543709200 | |
| Packing | Neutral Packing | |
We could supply customized service by your detail requirements about frequencies setting. All 6-12
Frequency modules we can mix very flexibly.
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Application:
Built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,hostage negotiations,border control,etc...
It can be applied that the common used telecommunication frequency will be blocked when the Police arrest the criminals in order to prevent the criminals gang or Police insider leaking the confidence through the wireless equipments ,so that the arrest collapsed. It also make the criminals not be able to remotely control the bomb in the key entrance of the building so that Police can quickly access to the building and round up the criminals to avoid the casualties.
Protecting the boarder and army patrol from the attack of road- side bomb RCIED denotated by the
terrorists.
It can be used to prevent terrorists remotely controlling the bomb bursting points in military protection zone,government buildings and some other important places. It can also make the criminals hidden in the military protection zone not communicate with the outside gang to leak the confidence.
Monitor software function: (Option)
Remote control switches of each machine.
Remote viewing each machine working state.
The power output of each machine remote adjustment.
Remote viewing offline log of each machine.
Mail receiving each machine working state.
The system can set permissions to log on.
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
Accessories
- High Power Cell Phone Signal Jammer
- Antennas
- Power cable
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
