VIP Protection Security Durable Waterproof Outdoor Jammer High Power Cell Phone Signal Jammer
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Waterproof Outdoor Signal Jammer |
| Channel Number | 12 |
| Each Bands Power | 50W |
| Total Output Power | 600W |
| Jamming Range | 25-300m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product Description:

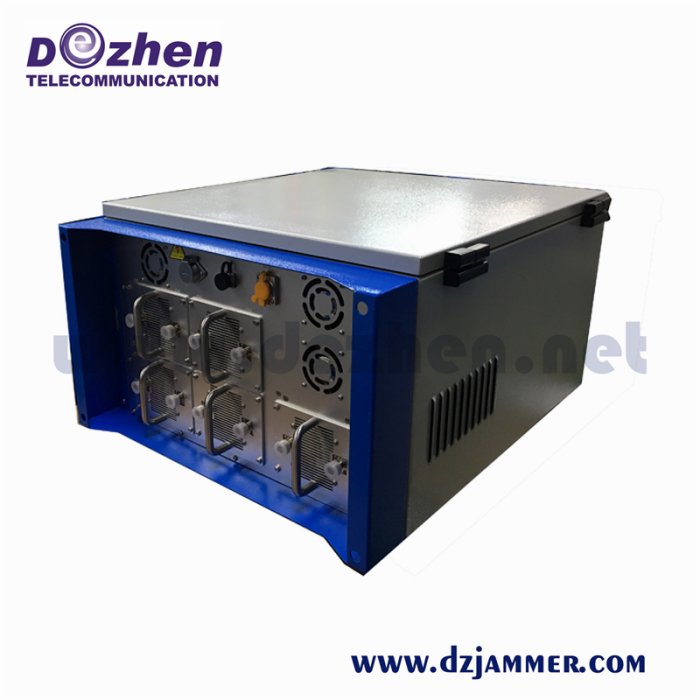

A big merit of this rockmount high power cell phone signal jammer is that each band can adjust RF power output level or turn off without influencing the other bands' operation.
Outdoor Waterproof Jamming System is specially designed for blocking all RF cellular networks and all kinds of cellular standard in the world, includes 2g/3g/4g/5g/ WIFI 2.4g & 5.8g with waterproof function to provide you privacy, security and peace in all ways. It has been used widely in prisons/Jails and schools in many countries.
Specification:
Affected Frequency Ranges: (12bands option)
| Output Interface | Output Frequency | RF Output watt |
| CH1 | 20-80mhz | 100W |
| CH2 | 80-200MHz | 100w |
| CH3 | 200-500MHz | 100w |
| CH4 | 500-1000MHz | 50w |
| CH5 | 1000-1500MHz | 50w |
| CH6 | 1500-2000MHz | 50w |
| CH7 | 2000-2500MHz | 50w |
| CH8 | 2500-3000MHz | 50w |
| CH9 | 850-960MHz | 50w |
| CH10 | 1805-1880MHz | 50w |
| CH11 | 1880-1990MHz | 50w |
| CH12 | 2010-2125MHz | 50w |
| Total output power | 600~1200W | |
| Jamming range | up to 500m,still depends on the strength signal in given area | |
| Jammer Module Number | 12 | |
| External double channel directional panel antennas | all the TX frequency covered down link only | |
| Power supply | 50 to 60Hz, 100 to 240V AC | |
| With AC adapter | (AC100-240V-DC27V) | |
| Dimension | 420×480×130 mm | |
We could supply customized service by your detail requirements about frequencies setting.
All 6-12 Frequency modules we can mix very flexibly.
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Features
1. Specially equipped with IP65 Waterproof and solid housing for all weather protection.
2. Supports Remote control for switching ON/OFF Jammer
3. Each Jammer can jam up to 8 frequencies simultaneously.

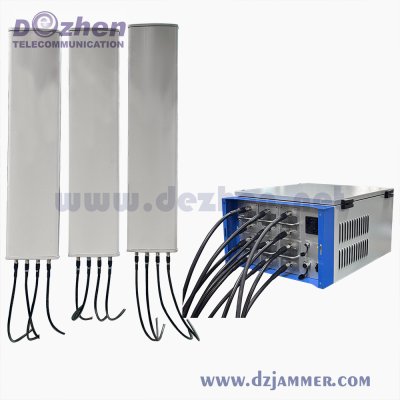

4. Supports high gain directional antennas for covering long range as far as possible
5. Supports Remote Access Control (computer internet software control) for controlling each band power. Failure alarms and running time.
Jammer Failure Alarms: Such as the cabinet opened maliciously, RF cables cut off deliberately, Modules failure,Temperature problems,the failure alarms will be sent to software.
Accessories
- High Power Cell Phone Signal Jammer
- Antennas
- Power cable
