Product description:
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Waterproof Outdoor Signal Jammer |
| Channel Number | 10 |
| Each Bands Power | 30W |
| Total Output Power | 300W |
| Jamming Range | 25-300m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Key Specifications/ Special Features:
Product description:

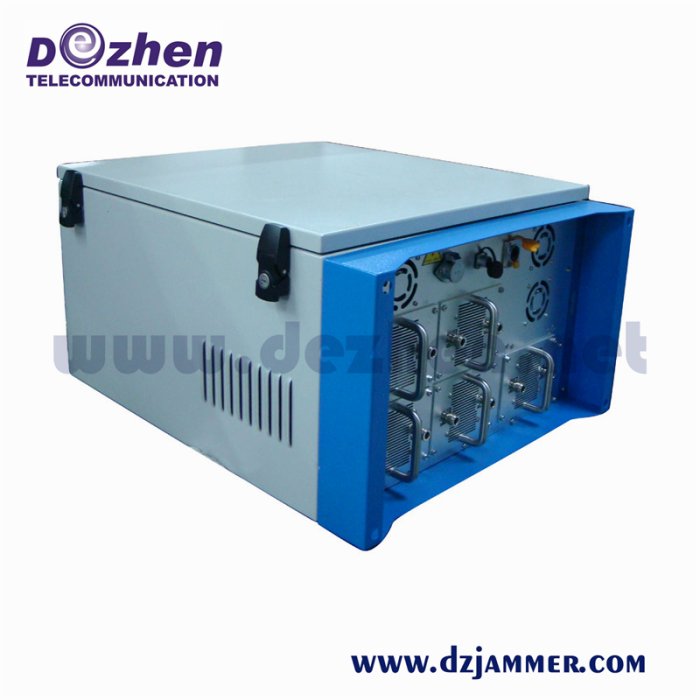

The wide-Bands Waterproof Adjustable High Power Phone Jammer for Prison is specially customized to accommodate a fully integrated broad band jamming system which provides the ultimate solution for Prison Military and Police convoys or VIP protection. The 8 modules are controlled separately and they also can work simultaneously.
Each module with antenna can be used as a single jammer. The prison jammer is waterproof and portable, the jammer case is our patent design, it can be installed in desert and more rain of bad weather. The Frequency band is optional. And the high power jammer is with excellent heat dispersion.
Specification
Affect frequency:
CH-CDMA: 851-960MHz
CH-GSM: 925-960MHz
CH-DCS: 1805-1880MHz
CH-PCS: 192-1990MHz
CH-3G: 2110-2170MHz
CH-4G LTE: 725-770MHz(US) or 790-826MHz(EU)
CH-4G Wimax: 2300-2400MHz(US) or 2620-2690MHz(EU)
CH-5G LTE : 3200-3600 MHz
CH-5G LTE : 3600-4200MHz
CH-WiFi2.4g: 2400-2500MHz
- Total output power: 300W
- Jamming range: up to 100-300m, the jamming radius still depends on the strength signal in given area
- Power supply: AC110-240V,
- Housing: Waterproof & shockproof design suitable indoor or outdoor use
- Dimension: 56*46*57 cm
- Full set weight: 45.00kg
Support below function:
- On/Off remote control and other options is available
- Light signals
-On/off state
-State of major failure.
- Working temperature:-20°c to +60°
- Wall mounting kit
- Omnidirectional antennas(and sectoral in the case of optional installation)
Applications
Products Application Fields
High quality jammers widely use in Military Units, Prison, Police, Bomb Disposal and Security Services.
It can also be used in places like Prison, Gas Stations, Guard, Schools, Churches, Invigilate Meeting Room, Library, Hospitals, Theater, Class Room and other important places and situations.
Advantages and Features:
• Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
• Heat sink designing combing with the fans to make system in a cooling status.
• Special technology to prevent interference between each frequency band.
• Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
• Frequency bands and output power selectable.
• Each frequency band controlled by indepen
Machine Monitor software function:
· Remote control switches of each machine.
· Remote viewing each machine working state.
· The power output of each machine remote adjustment.
· Remote viewing offline log of each machine.
· Mail receiving each machine working state.
· The system can set permissions to log on.
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year :5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
