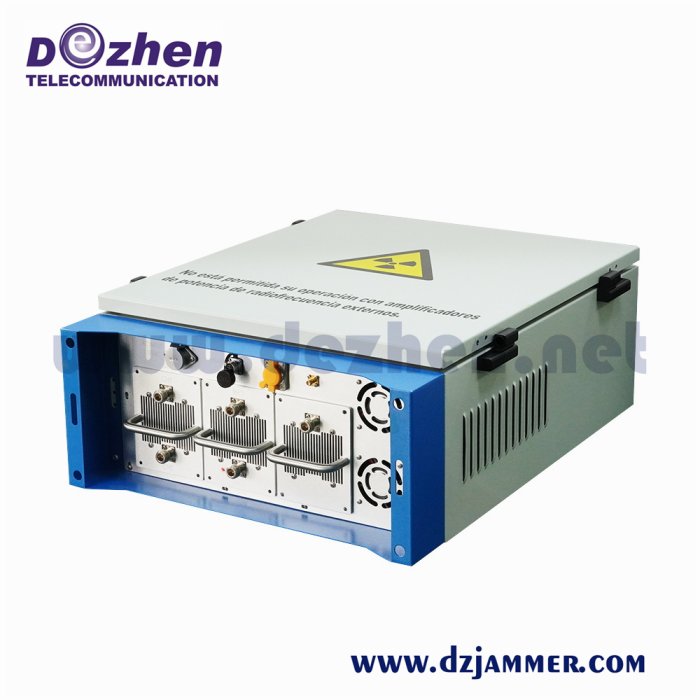

Durable VIP Protection Security Military High Power Cell Phone Signal Waterproof Outdoor Jammer
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Waterproof Outdoor Signal Jammer |
| Channel Number | 12 |
| Each Bands Power | 50W |
| Total Output Power | 600W |
| Jamming Range | 25-300m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product Description:
Outdoor Waterproof Jamming System is specially designed for blocking all RF cellular networks and all kinds of cellular standard in the world, includes 2g/3g/4g/5g/ WIFI 2.4g & 5.8g with waterproof function to provide you privacy, security and peace in all ways. It has been used widely in prisons/Jails and schools in many countries.
Mainly used in examination rooms, prisons, gas stations, mobile phone bombs, oil depots, LPG stations, detention centers, interrogation rooms, courts,Reform-through-labour teams, conference rooms, movie theaters, churches, libraries, school dormitories;
Specification:
Affected Frequency Ranges: (12bands option)
| Output Interface | Output Frequency | RF Output watt |
| CH1 | 20-80mhz | 100W |
| CH2 | 80-200MHz | 100w |
| CH3 | 200-500MHz | 100w |
| CH4 | 500-1000MHz | 50w |
| CH5 | 1000-1500MHz | 50w |
| CH6 | 1500-2000MHz | 50w |
| CH7 | 2000-2500MHz | 50w |
| CH8 | 2500-3000MHz | 50w |
| CH9 | 850-960MHz | 50w |
| CH10 | 1805-1880MHz | 50w |
| CH11 | 1880-1990MHz | 50w |
| CH12 | 2010-2125MHz | 50w |
| Total output power | 600~1200W | |
| Jamming range | up to 500m,still depends on the strength signal in given area | |
| Jammer Module Number | 12 | |
| External double channel directional panel antennas | all the TX frequency covered down link only | |
| Power supply | 50 to 60Hz, 100 to 240V AC | |
| With AC adapter | (AC100-240V-DC27V) | |
| Dimension | 420×480×130 mm | |
We could supply customized service by your detail requirements about frequencies setting. All 6-12 Frequency modules we can mix very flexibly.
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Features
1. UPS and battery backup in case of mains power failure for option.
2. ON/OFF each modules separately by computer software.
3. For the cellular phone jamming, only block the downlink frequencies, not disturb the uplink to keep the BTS normal running.
4. Supports high gain directional antennas for covering long range as far as possible
5. Specially equipped with IP65 Waterproof and solid housing for all weather protection.
6. Supports Remote control for switching ON/OFF Jammer
7. Each Jammer can jam up to 8 frequencies simultaneously.
8. Supports Remote Access Control (computer internet software control) for controlling each band power. Failure alarms and running time.
Jammer Failure Alarms: Such as the cabinet opened maliciously, RF cables cut off deliberately, Modules failure,Temperature problems, the failure alarms will be sent to software.
R&D Group in USA
We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.
Manufacturer in CHINA
A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.
We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer, 3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed. We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
