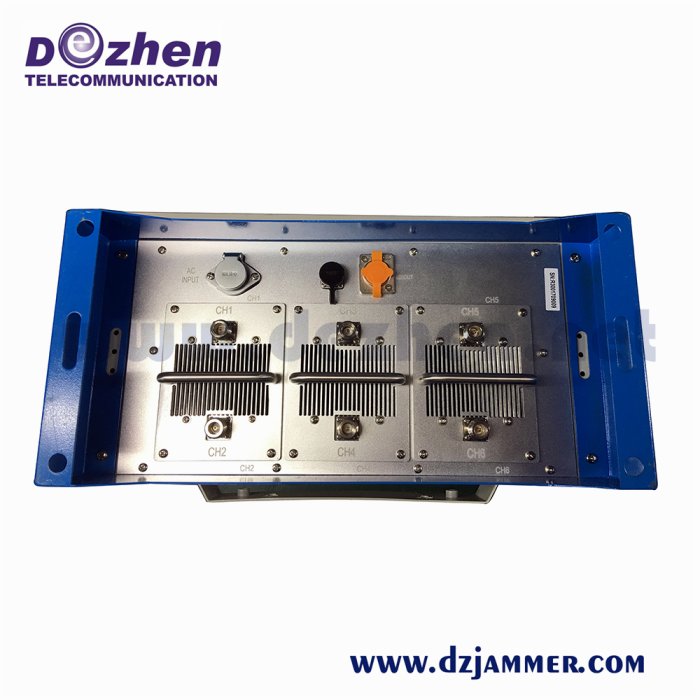

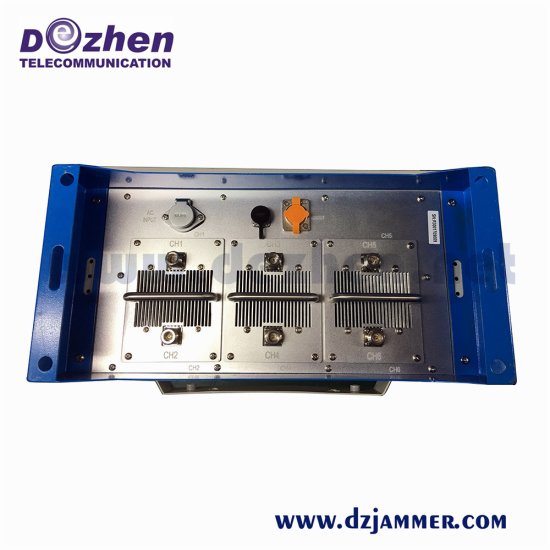

Black Color Cell Phone Jamming Device Military Directional Antennas 300W Output Power
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Waterproof Outdoor Signal Jammer |
| Channel Number | 6 |
| Each Bands Power | 50W |
| Total Output Power | 300W |
| Jamming Range | 2-80m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product Description:
The jamming distance up to 300 meters,this high power signal jammer is very competative.
This is a high power efficient jamming device can be used to block unwanted signals in occasions such as VIP convoy protection, military rehearse, municipal hall, police check point, prison, disposal bombs, as well as vehicle mounted to block remote controlled explosive devices.
Features:
1,Import component, slow starting circuit design and can avoid mechanical switch generated spark phenomenon, high level of integration and working stabilization
2,Perfect self-protective function, when the equipment overheating, output over power, VSWR ect fault warning, the jammer will auto turn-off which have fault module, to avoid the jammer damage.
3,Ethernet IP Remote Monitoring System available
4,RF module alarm type: Temperature alarm, Over power alarm, Standing wave alarm.
5,Built-in efficient rechargeable battery can be used for 2 hours after fully charged;
Specifications:
| Output Interface | Output Frequency |
| CH1 | CDMA: 851-960MHz |
| CH2 | GSM: 925-960MHz |
| CH3 | DCS: 1805-1880MHz |
| CH4 | PCS: 1880-1990MHz |
| CH5 | 3G: 2110MHz-2170MHz |
| CH6 | 4G Wimax: 2300-2400MHz |
| Jammed Signal Freqency: | CDMA,GSM,DCS,PCS,3G,4G |
| Type: | Waterproof jammer |
| Output Channel: | 6 output channels |
| Antenna: | Omni Antenna |
| Transmission Power: | Integrated Equipment:300W, each channel:50W |
| Parameter Shielding Range: | 25-300 meters (depending on the distance of base station in an open filed) |
| Jammer Module Number | 6 |
| HS Code: | 8543709200 |
| Packing: | Box |
| Dimension (not including antennae): | 30 *45 *15cm |
| Technical Parameters: | |
| Net Weight | 25kg |
| Total Weight | 30 kg Aviation Case included |
| Ambient Temperature | -10ºC - +50ºC |
| Relative Humidity | ≤80% |
| Power Consumption | ≤360W |
| Power Input | AC100~240V,DC24V |
| Battery | 24V,30AH,Built-in standby battery can used for 90~180 minutes |
| Antenna Parameters | Omni antennas,gain:4~5dBi |
| Switch Control | Manually |
| Equipment Chassis | Metallic Paint |
| Cooling system | Active "smart" with integrated incoming air filter |
| Antennae type: | External high gain Omni directional Antenna |
We could supply customized service by your detail requirements about frequencies setting. All 6
Frequency modules we can mix very flexibly.
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Application:
Bomb squads, VIP protection, protection of convoys, Military forces, SWAT teams, police forces, anti-drug units, riot control units
R&D Group in USA
We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.
Manufacturer in CHINA
A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.
We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer, 3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed. We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
