Product Description
Frequency Range | 20-6000MHz/700-2600MHz |
Frequency: | CDMA/GSM/3G Cellphone |
Jammer Type | Waterproof Outdoor Signal Jammer |
Channel Number | 6 |
Each Bands Power | 50W |
Total Output Power | 300W |
Jamming Range | 25-300m |
Application | Military Units, Prison, Police, Bomb Disposal |

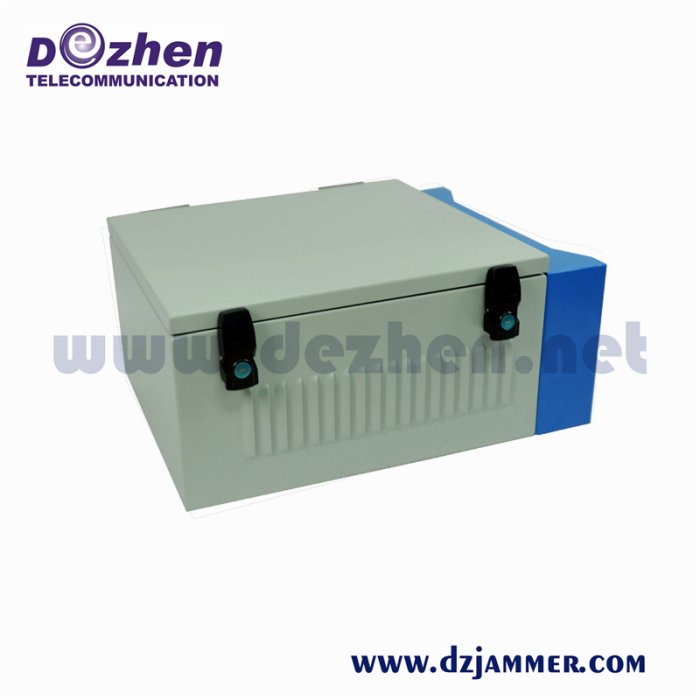

Product Description:
Outdoor Waterproof Jamming System is specially designed for blocking all RF cellular networks and all kinds of cellular standard in the world, includes 2g/3g/4g/5g/ WIFI 2.4g & 5.8g with waterproof function to provide you privacy, security and peace in all ways. It has been used widely in prisons/Jails and
schools in many countries.
Specification:
Affected Frequency Ranges: (12bands option)
Output Interface | Output Frequency | RF Output watt |
CH1 | 20-80mhz | 100W |
CH2 | 80-200MHz | 100w |
CH3 | 200-500MHz | 100w |
CH4 | 500-1000MHz | 50w |
CH5 | 1000-1500MHz | 50w |
CH6 | 1500-2000MHz | 50w |
CH7 | 2000-2500MHz | 50w |
CH8 | 2500-3000MHz | 50w |
CH9 | 850-960MHz | 50w |
CH10 | 1805-1880MHz | 50w |
CH11 | 1880-1990MHz | 50w |
CH12 | 2010-2125MHz | 50w |
Total output power | 600~1200W | |
Jamming range | up to 500m,still depends on the strength signal in given area | |
Jammer Module Number | 12 | |
External double channel directional panel antennas | all the TX frequency covered down link only | |
Power supply | 50 to 60Hz, 100 to 240V AC | |
With AC adapter | (AC100-240V-DC27V) | |
Dimension | 420×480×130 mm | |
Design | Customized Jammer | |
HS Code | 8543709200 | |
Packing | Neutral Packing |
We could supply customized service by your detail requirements about frequencies setting. All 6-12 Frequency modules we can mix very flexibly.
CDMA 800: | 851-894MHz |
GSM 900: | 925-960MHz |
DCS 1800: | 1800-1880MHz |
PHS 1900: | 1920-1990MHz |
3G 2100(UMTS): | 2110-2170MHz |
WIFI 2.4G Bluetooth: | 2400-2500MHz |
WiFi3.6G: | 3500-3600MHz |
Wi-Fi5.2G: | 5100-5500MHz |
WIFI 5.8G | 5725-5850MHz |
4G/LTE 700M: | 725-770MHz(US) |
4G/LTE 800M: | 790-826MHz(EU) |
4G Wimax: | 2300-2400MHz(US) |
4G Wimax: | 2620-2690MHz(EU) |
GPS/L1: | 1500-1600MHz |
GPS/L2: | 1200-1300MHz |
GPS/L3: | 1300-1400MHz |
GPS/L4: | 1100-1200MHz |
VHF: | 135-174MHz |
UHF: | 400-470MHz |
Lojack: | 167-175MHz |
RF315: | 315MHz |
RF433: | 433MHz |
RF868: | 868MHz |
Monitor software function: (Option)
Remote control switches of each machine.
Remote viewing each machine working state.
The power output of each machine remote adjustment.
Remote viewing offline log of each machine.
Mail receiving each machine working state.
The system can set permissions to log on.
Application:
It can be applied that the common used telecommunication frequency will be blocked when the Police arrest the criminals in order to prevent the criminals gang or Police insider leaking the confidence through the wireless equipments ,so that the arrest collapsed. It also make the criminals not be able to remotely control the bomb in the key entrance of the building so that Police can quickly access to the building and round up the criminals to avoid the casualties.
It can be used to prevent terrorists remotely controlling the bomb bursting points in military protection zone,government buildings and some other important places. It can also make the criminals hidden in the military protection zone not communicate with the outside gang to leak the confidence.
Terms and conditions:
Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
Payment Terms | 40% advance, 40% after one month,20% before shipping. |
Terms of Delivery | FOB HONGKONG/ USA. |
Warranty | 36 months. |
Software Updates | Free software updates will be provided for a period of 36 months. |
Extended Warranty | After 4th Year : 5% of total for each years. |
Accessories
High Power Cell Phone Signal Jammer
Antennas
Power cable
R&D Group in USA
We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.
Manufacturer in CHINA
A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.
We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer, 3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed. We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
