Basic Info.
Frequency Range | 20-6000MHz/700-2600MHz |
Frequency: | CDMA/GSM/3G Cellphone |
Jammer Type | Waterproof Outdoor Signal Jammer |
Channel Number | 6 |
Each Bands Power | 50W |
Total Output Power | 300W |
Jamming Range | 25-300m |
Application | Military Units, Prison, Police, Bomb Disposal |
Product Description

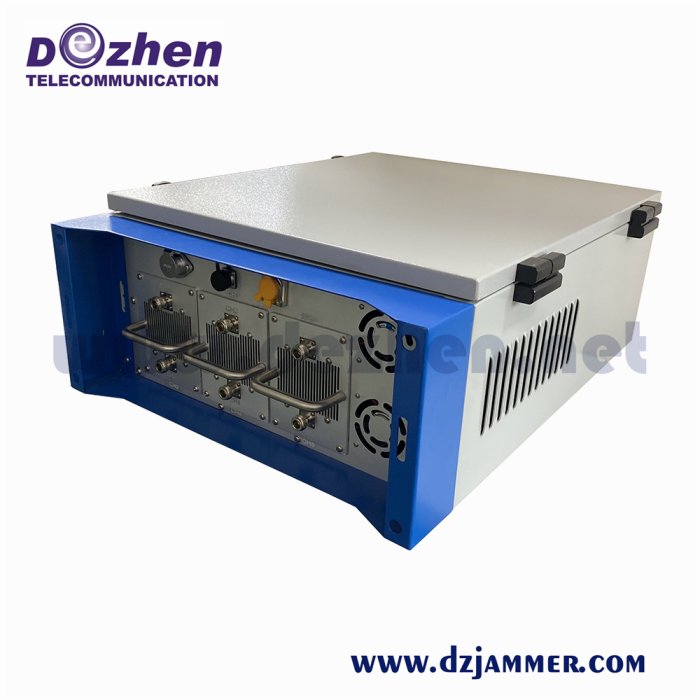

300W Military GSM 3G 4G Cell Phone Signal Jammer Outdoor High Power Waterproof Jammer
We have four types frequenices optional of this high power cell phone signal jammer.Different from theexisting only 4 channels in the market,this new waterprodf outdoor jammer has 6 channels which can meet the rasing of frequncies.
This type is for cell phone frequncies. With jamming distance up to 300 meters,this high power signal jammer is very competative.
This is a high power efficient jamming device can be used to block unwanted signals in occasions such as VIP convoy protection, military rehearse, municipal hall, police check point, prison, disposal bombs, as well as vehicle mounted to block remote controlled explosive devices.
Features:
1, Specially used for anti-terrorism, EOD, bomb-disposal, force filed work, etc;
2, Large coverage for 6 channels frequencies and other customized output;
3,Backpack design for portable carry and flexible operation. Specially applicable for emergency, transitions, temporary control requirements;
4,Built-in efficient rechargeable battery can be used for 2 hours after fully charged;
5,Camoflage customized backpack convenient to install and operate;
6,Metallic paint chassis box, pressure-resistant and durable;
7, Built-in efficient cooling fans and cooling fin ensure the product work stable in a long service time.
Specifications:
Output Interface | Output Frequency |
CH1 | CDMA: 851-960MHz |
CH2 | GSM: 925-960MHz |
CH3 | DCS: 1805-1880MHz |
CH4 | PCS: 1880-1990MHz |
CH5 | 3G: 2110MHz-2170MHz |
CH6 | 4G Wimax: 2300-2400MHz |
Jammed Signal Freqency: | CDMA,GSM,DCS,PCS,3G,4G |
Type: | Waterproof jammer |
Output Channel: | 6 output channels |
Antenna: | Omni Antenna |
Transmission Power: | Integrated Equipment:300W, each channel:50W |
Parameter Shielding Range: | 25-300 meters (depending on the distance of base station in an open filed) |
Jammer Module Number | 6 |
HS Code: | 8543709200 |
Packing: | Box |
Dimension (not including antennae): | 30 *45 *15cm |
Technical Parameters: | |
Net Weight | 25kg |
Total Weight | 30 kg Aviation Case included |
Ambient Temperature | -10ºC - +50ºC |
Relative Humidity | ≤80% |
Power Consumption | ≤360W |
Power Input | AC100~240V,DC24V |
Battery | 24V,30AH,Built-in standby battery can used for 90~180 minutes |
Antenna Parameters | Omni antennas,gain:4~5dBi |
Switch Control | Manually |
Equipment Chassis | Metallic Paint |
Cooling system | Active "smart" with integrated incoming air filter |
Antennae type: | External high gain Omni directional Antenna |
We could supply customized service by your detail requirements about frequencies setting. All 6 Frequency modules we can mix very flexibly.
CDMA 800: | 851-894MHz |
GSM 900: | 925-960MHz |
DCS 1800: | 1800-1880MHz |
PHS 1900: | 1920-1990MHz |
3G 2100(UMTS): | 2110-2170MHz |
WIFI 2.4G Bluetooth: | 2400-2500MHz |
WiFi3.6G: | 3500-3600MHz |
Wi-Fi5.2G: | 5100-5500MHz |
WIFI 5.8G | 5725-5850MHz |
4G/LTE 700M: | 725-770MHz(US) |
4G/LTE 800M: | 790-826MHz(EU) |
4G Wimax: | 2300-2400MHz(US) |
4G Wimax: | 2620-2690MHz(EU) |
GPS/L1: | 1500-1600MHz |
GPS/L2: | 1200-1300MHz |
GPS/L3: | 1300-1400MHz |
GPS/L4: | 1100-1200MHz |
VHF: | 135-174MHz |
UHF: | 400-470MHz |
Lojack: | 167-175MHz |
RF315: | 315MHz |
RF433: | 433MHz |
RF868: | 868MHz |
Application:
Built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,hostage negotiations,border control,etc...
Terms and conditions:
Delivery Time Schedule |
Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
Payment Terms |
40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
Terms of Delivery |
FOB HONGKONG/ USA. |
Warranty |
36 months. |
Software Updates |
Free software updates will be provided for a period of 36 months. |
Extended Warranty |
After 4th Year :5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
