Product Description
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Waterproof Outdoor Signal Jammer |
| Channel Number | 6 |
| Each Bands Power | 50W |
| Total Output Power | 300W |
| Jamming Range | 2-80m |
| Application | Military Units, Prison, Police, Bomb Disposal |

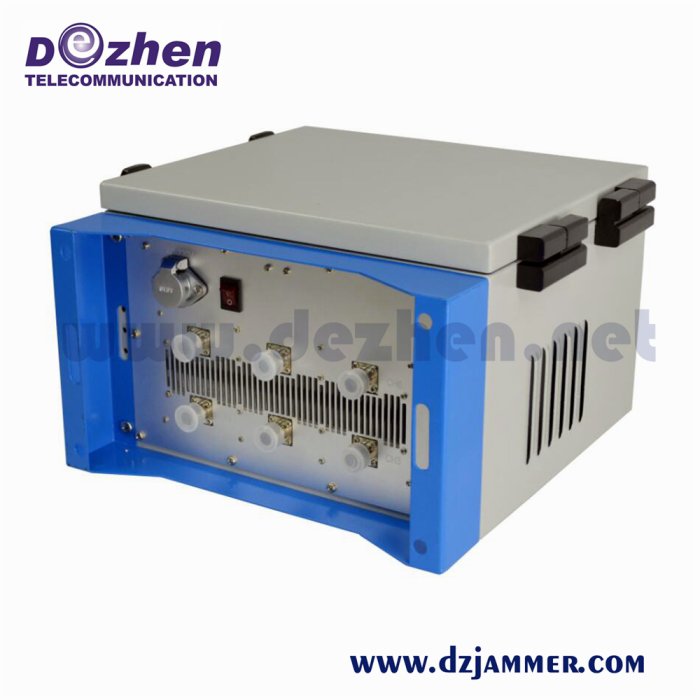

Waterproof Cell Phone Jamming Device , 4G 5G Cell Phone Reception Blocker 300 Watt
Product Description:
The cell phone Signal Shield is a versatile signal blocker that can be installed indoors and supported outdoors because its enclosure is waterproof, with a built-in fan and a good cooling system.
Also we have four types frequenices optional of this high power cell phone signal jammer.Different from the existing only 4 channels in the market,this new waterprodf outdoor jammer has 6 channels which can meet the rasing of frequncies.
This type is for cell phone frequncies. With jamming distance up to 300 meters,this high power signal jammer is very competative.
Features:
1, Large coverage for 6 channels frequencies and other customized output;
2, ON/OFF each modules separately by computer software.
3,Built-in efficient rechargeable battery can be used for 2 hours after fully charged;
4,Heat sink designing combing with the fans to make system in a cooling status.
5,Secure design to avoid sabotage.
Specifications:
|
Output Interface |
Output Frequency |
|
CH1 |
CDMA: 851-960MHz |
|
CH2 |
GSM: 925-960MHz |
|
CH3 |
DCS: 1805-1880MHz |
|
CH4 |
PCS: 1880-1990MHz |
|
CH5 |
3G: 2110MHz-2170MHz |
|
CH6 |
4G Wimax: 2300-2400MHz |
|
Jammed Signal Freqency: |
CDMA,GSM,DCS,PCS,3G,4G |
|
Type: |
Waterproof jammer |
|
Output Channel: |
6 output channels |
|
Antenna: |
Omni Antenna |
|
Transmission Power: |
each channel:50W |
|
Parameter Shielding Range: |
25-300 meters (depending on the distance of base station in an open filed) |
|
Jammer Module Number |
6 |
|
HS Code: |
8543709200 |
|
Packing: |
Box |
|
Dimension (not including antennae): |
30 *45 *15cm |
|
Technical Parameters: |
|
|
Net Weight |
25kg |
|
Total Weight |
30 kg Aviation Case included |
|
Ambient Temperature |
-10ºC - +50ºC |
|
Relative Humidity |
≤80% |
|
Power Consumption |
≤360W |
|
Power Input |
AC100~240V,DC24V |
|
Battery |
can used for 90~180 minutes |
|
Antenna Parameters |
Omni antennas,gain:4~5dBi |
|
Switch Control |
Manually |
|
Equipment Chassis |
Metallic Paint |
|
Cooling system |
Active "smart" with integrated incoming air filter |
|
Antennae type: |
External high gain Omni directional Antenna |
All 6 Frequency modules we can mix very flexibly.
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Application:
anti-terrorism units,anti-drag units,anti-riot force,meeting halls,infantry,military security force,SWAT team,bomb squad, the EOD team,checkpoints,hostage negotiations,border control,etc...
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
R&D Group in USA
We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.
Manufacturer in CHINA
A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.
We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer, 3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed. We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
