Antennas Details:
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Waterproof Outdoor Signal Jammer |
| Channel Number | 10 |
| Each Bands Power | 50W |
| Total Output Power | 600W |
| Jamming Range | 25-300m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Key Specifications/ Special Features:
Product Description

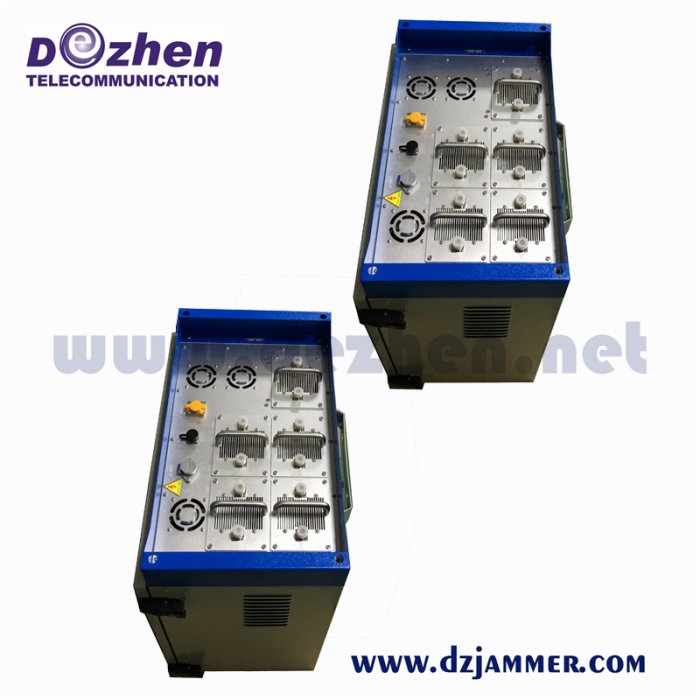

The Waterproof Adjustable High Power Phone Jammer for Prison is specially customized to accommodate a fully integrated broad band jamming system which provides the ultimate solution for Prison Military and Police convoys or VIP protection. The 10 modules are controlled separately and they also can work simultaneously.

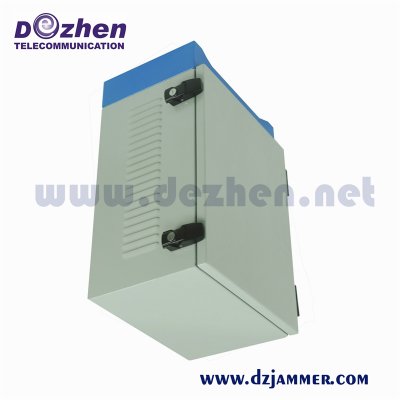

Each module with antenna can be used as a single jammer. The prison jammer is waterproof and portable, the jammer case is our patent design, it can be installed in desert and more rain of bad weather. The Frequency band is optional. And the high power jammer is with excellent heat dispersion.
Main Function
• High-power portable multi-band jammer.
• Fully modular compact design with extremely high efficiency cooling system provides system stability even in extreme climate conditions. The modular design also facilitates easy maintenance, repairs and upgrades.
• Jam up to six different jamming modules simultaneously, covering up to 20 different frequency bands.
• Increased total RF output power up to 800 Watts.
• Equipped with a wired remote control unit. The operator can ON/OFF each module through the wired remote control.
• Fully portable trolley-type case for easy transportation and rapid deployment.
• Supplied by AC mains or DC power source.
• The jamming system has an active smart cooling system in a continuous working cycle.
• Based on our general design, we can further customize our systems for client-specific scenarios both for military and civil applications in order to provide the best individualized solution.
• Upgraded jamming signal source (DDS technology) to provide utmost efficiency.(option)
• Field programmability for rapid adjustment to frequency and output power. (option)
• Remote control can control each module working frequency, output power, etc. (option)
• Backup battery system and generator system are optional. (option)
Specifications
Output InterfaceRF Frequency Band(MHz)ApplicationRF Output Power (Watt)
Affect frequency:
| CH1 | CDMA : 850-894 MHz |
| CH2 | GSM : 920-960 MHz |
| CH3 | DCS : 1800-1880 MHz |
| CH4 | PCS : 1920-1990 MHz |
| CH5 | 3G : 2100-2180 MHz |
| CH6 | WIFI : 2400-2480 MHz |
| CH7 | 4G LTE (US.725-770MHz) or (EU.790-826MHz) |
| CH8 | 4G Wimax (US.2345-2400MHz) or (EU.2620-2690MHz) |
| CH9 | GPS L1 : 1575.42 Mhz |
| CH10 | Lojack : 167-173 Mhz |
Total RF Power :800Watt,
Power supply :AC220V
Shielding area: 100-500m according to signal density of mobile network
Cooling System :Systematic Smart Cooling System
System Protection :VSWR, Over-voltage, Over-current
Jamming Source: PLL Source Te
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 100% advance,paypal,WU, etc. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
