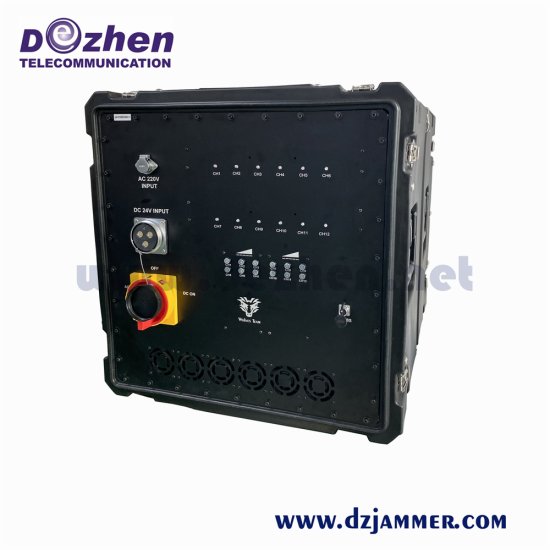

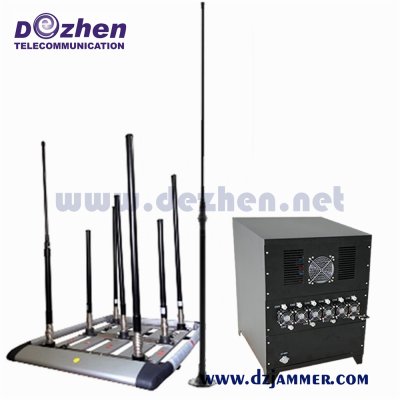

    Waterproof Portable RF Signal 11 bands Vehicle antenna Cell Phone Signal Jammer 600 Watt

    Price:

    • Model: DZ808VP-11
    • Shipping Weight: 75kg
    • 1000 Units in Stock


    Quantity Discounts

    Store Quantity Discount Policy

    QuantityDiscount
    5 - 1910%
    20 - 4915%
    50 - 9920%
    100 - 19925%
    200 + 30%
    * The way the Order Total modules work is that they show up at checkout time
    (complete orders today,deliverd around 30/12/2024)
    Details

     Waterproof Portable RF Signal 11 bands Vehicle antenna Cell Phone Signal Jammer 600 Watt

    Frequency Range 20-6000MHz/700-2600MHz
    Frequency: CDMA/GSM/3G Cellphone
    Jammer Type Vehicle Bomb Jammer
    Channel Number 11
    Each Bands Power 50W
    Total Output Power 600W
    Jamming Range 10-200m
    Application Military Units, Prison, Police, Bomb Disposal

    Product Description

    Waterproof Portable RF Signal Vehicle Bomb Jammer Cell Phone Signal Jammer With DDS Convoy Jamming System

    Product description :

    This device is not only bomb jammers, but also high power portable DDS convoy jamming system, portable RF jammer,portable vehicle bomb jammer.

    This jammer can implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.

    It can cove all RF communication Frequencies between 20MHz to 3600MHz continuously and  simultaneously.

    Features:

    1. High-power portable multi-band jammer.

    2. Field programmability for rapid adjustment frequence with output Watt.

    3. Modular construction for easy maintenance,repair and upgrade.

    4. Jammer up to five different jamming modules simultaneously,and cover up to 10 different frequency bands.

    5. Each module with LED display to show its working frequency ,output power and etc.

    6. 250-300 watt total RF output power.

    7. Equipped with a remote control unit. The operator can ON/OFF each module through the wired remote controller.

    8. Fully portable trolley-type case.

    9. Internal battery, AC mains or DC power.

    10. External LED display to indicate the batterylevel.

    11. Designed with external backup battery input, adapted to external battery. Facilitating to change the battery timely for field use.

    Technical Specifications

    11 bands for option: The frequencies can be from 20-6000MHZ

    Output Interface Frequency Range Out Power  RF Output dBm
    CH1 20-108MHz Wireless ,FM Radio 100W
    CH2 135-174MHz Wilkie-talkie(VHF) 100W
    CH3 300-400MHz Remote Control, Drone 100W
    CH4 400-470MHz Wilkie-talkie(UHF),Car alarm 100W
    CH5 851-894MHz CDMA 100W
    CH6 925-960MHz GSM 100W
    CH7 1570-1580MHz GPSL1 50W
    CH8 1805-1920MHz DCS,PCS 100W
    CH9 2110-2170MHz WCDMA 50W
    CH10 2400-2485MHz WIFI,Drone,Bluetooth 50W
    CH11 5725-5850MHz WIFI,Drone 50W
    Jamming Radius: 50-800M, the jamming radius still depends on the strength signal in given area
    HS Code: 8543709200
    Total output power: 600~1200W
    Power  Consumption: 330W
    Type: Vehicle Bomb Jammer
    Dimension: 640×540×550 mm
    Packing: Box
    Signal Jammer for 20 - 6000MHz Cell Phone Signal Jammer
    Power supply:  AC110  240V
    Weight: 75 Kg
    Humidity: 5%-95%
    Working Temp: -20ºC to +55ºC

    RF Characteristics:

    RF Characteristics Description
    Output Power 915 Watts
    Internal Modulation FM Hopping Frequency
    Signal Source VCO Synthesized
    Power Supply AC110-240V,24V or 48V DC
    Modules Per Unit 11
    Contol ON/OFF with Switch
    Monitoring Adjusted output power by DIP switch
    Antenna External- Omni-directional for 360°
    Power Amplifier Protectors Full VSWR Protector
    Operating Hours Unlimited

    Applicable Area:

    • Mainly used in examination rooms, prisons, gas stations, mobile phone bombs, oil depots, LPG stations, detention centers, interrogation rooms, courts,

    • Reform-through-labour teams, conference rooms, movie theaters, churches, libraries, school dormitories;

    • Special security and confidential occasions (confidential office, negotiation room, mobile vehicles, mobile political and business dignitaries guarding the scene;

    • All kinds of military sites and other prohibited places to use mobile phones.

    Terms and conditions:

    Delivery Time Schedule Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
    Payment Terms 40% advance, 40% after one month,20% before shipping.
    Terms of Delivery FOB HONGKONG/ USA.
    Warranty 36 months.
    Software Updates Free software updates will be provided for a period of 36 months.
    Extended Warranty After 4th Year : 5% of total for each years.

    Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.

    Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .

    R&D Group in USA

    We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.

    Manufacturer in CHINA

    A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.

    We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer,  3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed. We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
    Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
