Tetra 5G Full Bands Walky-Talky Bomb Cell Phone Signal Jammer
Frequency Range | 20-6000MHz/700-2600MHz |
Frequency: | CDMA/GSM/3G Cellphone |
Jammer Type | Vehicle Bomb Jammer |
Channel Number | 12 |
Each Bands Power | 50W |
Total Output Power | 600W |
Jamming Range | 10-100m |
Application | Military Units, Prison, Police, Bomb Disposal |
Product description:
Military / Police / Government / Convoy Portable RCIED Jammer 12 bands
Applications :
Anti-terror units, Bomb squads, VIP protection, Convoys protection, Military forces, SWAT teams, Police forces, Anti-drug units, Riot-control units, Embassies protection, Roadblock protection, Checkpoint protection
It is designed for Protect military and country leaders VIP team,EOD,police investigation and arrestprisons,government buildings, wireless remote bomb and some occasions for a temporary protection to respond to some emergencies.
Affected Frequency Ranges:(12 bands )
CH1 20-100 Radio Control Toys; Alarms 50w |
CH2 100-200 Walky-talky(VHF) 50W |
CH3 200-350 Walky-talky(UHF300) 50w |
CH4 350-500 Walky-Talky400 Car Alarm 50w |
CH5 500-1000 Cellular CDMA/TDMA,Walky-Talky (UHF800/900) 50w |
CH6 CDMA/GSM: 851-960MHz 50w |
CH7 DCS/PCS: 1805-1990MHz 100w |
CH8 3G: 2110-2170 Cellular UMTS/WCDMA(3G) 100w |
CH9 4G LTE: (US.725-770MHz) or (Europe:790-826MHz) 100W |
CH10 4GWIMAX:(US. 2345-2400MHz) or (Europe: 2620-2690MHz) 100W |
CH11 5G :3200-3600MHz/ 3200-3800MHz |
CH11 GPS 1520-1580 GPS&Satellite; Thuraya; Iridium; Odyssey; GlobalStar; Inmarsat; Aces; Elipso 50W |
CH12 WIFI2.4: 2400-2500mhz WLAN & Bluetooth & Wifi 50w |
Total RF Power |
Max: 1000Watt |
Power supply |
AC110-240V |
Shielding area |
100-1000m @ according to signal density of mobile network |
Jammer Module Number |
12 |
Cooling System |
Systematic Smart Cooling System |
System Protection |
VSWR, Over-voltage, Over-current |
Jamming Source |
DSS Source Technology |
Remote Control (Option) |
Full System Operation Control |
Antenna Type |
High Gain Omnidirectional Antennas |
Number of Antennas |
12 |
Vehicle Platform |
Off-road four-wheel drive car |
Weight: |
45 Kg (approximately) just main unit not included antenna & all accessories |
Size (length × wind × high): |
690x690×390mm |
Humidity: |
30%-95% |
Running Temperature: |
-20 to +55 Celsius Degree |
Advantages and Features
• Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
• Heat sink designing combing with the fans to make system in a cooling status.
• Special technology to prevent interference between each frequency band.
• Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
• Frequency bands and output power selectable.
• Each frequency band controlled by independent RF ON/OFF switches.
• Power of each frequency band can be adjustable independently.
• Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
• Antenna type options, directional or Omni-directional antennas option.
• Easy operation and installation.
• Keep for upgrade module installation.
• Working 24 hours/365days continuously.
Main Function
• High-power portable multi-band jammer.
• Upgraded jamming signal source (DDS technology) to provide utmost efficiency.
• Field programmability for rapid adjustment to frequency and output power. (option)
• Fully modular compact design with extremely high efficient cooling system provides system stability even in extreme climate conditions. The modular design also facilitates easy maintenance, repairs and upgrades.
• Jam up to six different jamming modules simultaneously, covering up to 20 different frequency bands.
• Increased total RF output power up to 600 Watts.
• Remote control can control each module working frequency, output power, etc. (option)
• Equipped with a wired remote control unit. The operator can ON/OFF each module through the wired remote control.
• Fully portable trolley-type case for easy transportation and rapid deployment.
• Supplied by AC mains or DC power source.
• Backup battery system and generator system are optional. (option)
• The jamming system has an active smart cooling system in a continuous working cycle.
• Based on our general design, we can further customize our systems for client-specific scenarios both for military and civil applications in order to provide the best individualized solution.
Jammer is available in various models as per the frequency and output power. However these jammers can be customized as per the user requirements.

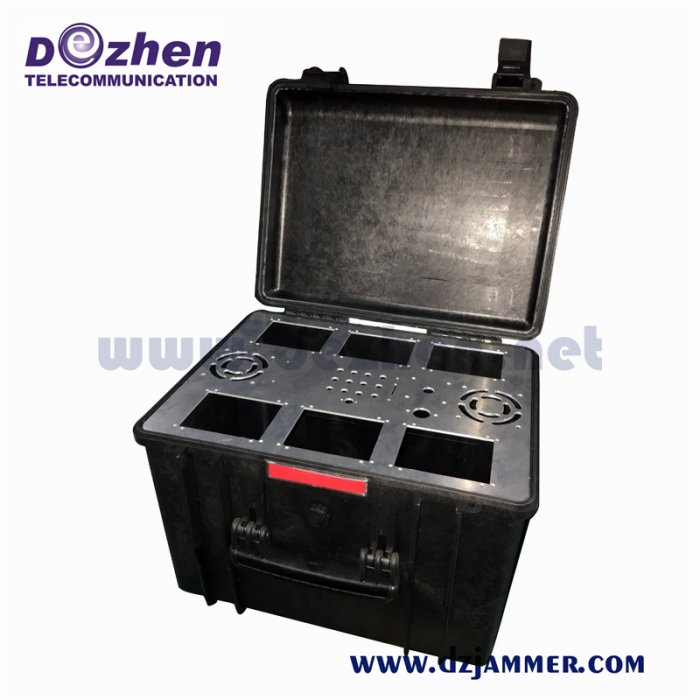

Portable case RCIED Jammer is a wide-band portable jamming system, designed for the protection of VIP's and groups of people from radio controlled improvised explosion by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks.
Briefcase Jammer transmits RF interference and creates a "Radio Frequency Protected Zone" around the object that prevents remote controlled bomb activation by various RF means in its vicinity with a sufficient jamming safety radius, in order to save lives and prevent serious injuries. Case Jammers are also deployed to guard forces in the field, Dignitaries and VIP's, checkpoint and border crossings, roadblocks, Embassies, Police and Government offices etc.
Case Jammer is available in various models as per the frequency and output power. However these jammers can be customized as per the user requirements
Monitor software function: (Option)
- Remote control switches of each machine.
- Remote viewing each machine working state.
- The power output of each machine remote adjustment.
- Remote viewing offline log of each machine.
- Mail receiving each machine working state.
- The system can set permissions to log on.
Terms and conditions:
Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
Payment Terms | 40% advance, 40% after one month,20% before shipping. |
Terms of Delivery | FOB HONGKONG/ USA. |
Warranty | 36 months. |
Software Updates | Free software updates will be provided for a period of 36 months. |
Extended Warranty | After 4th Year : 5% of total for each years. |
R&D Group in USA
We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.
Manufacturer in CHINA
A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.
We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer, 3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed. We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
