Product description :
Frequency Range | 20-6000MHz/700-2600MHz |
Frequency: | CDMA/GSM/3G Cellphone |
Jammer Type | Vehicle Bomb Jammer |
Channel Number | 11 |
Each Bands Power | 50W |
Total Output Power | 550W |
Jamming Range | 2-90m |
Application | Military Units, Prison, Police, Bomb Disposal |
Product description :
This device is not only bomb jammers, but also high power portable DDS convoy jamming system, portable RF jammer,portable vehicle bomb jammer. This jammer can implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
It can cove all RF communication Frequencies between 20MHz to 3600MHz continuously and simultaneously.
Features:
1. High-power portable multi-band jammer.
2. Field programmability for rapid adjustment frequence with output Watt.
3. Modular construction for easy maintenance,repair and upgrade.
4. Jammer up to five different jamming modules simultaneously,and cover up to 10 different frequency bands.
5. Each module with LED display to show its working frequency ,output power and etc.
6. 250-300 watt total RF output power.
7. Equipped with a remote control unit. The operator can ON/OFF each module through the wired remote controller.

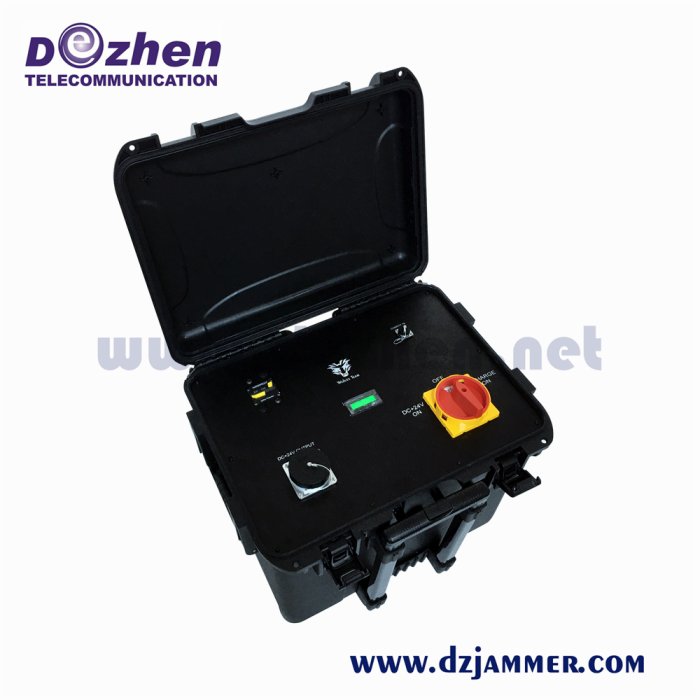

8. Fully portable trolley-type case.
9. Internal battery, AC mains or DC power.
10. External LED display to indicate the batterylevel.
11. Designed with external backup battery input, adapted to external battery. Facilitating to change the battery timely for field use.
Technical Specifications
11 bands for option: The frequencies can be from 20-6000MHZ
Output Interface |
Frequency Range |
Out Power |
RF Output dBm |
CH1 |
20-108MHz |
Wireless ,FM Radio |
100W |
CH2 |
135-174MHz |
Wilkie-talkie(VHF) |
100W |
CH3 |
300-400MHz |
Remote Control, Drone |
100W |
CH4 |
400-470MHz |
Wilkie-talkie(UHF),Car alarm |
100W |
CH5 |
851-894MHz |
CDMA |
100W |
CH6 |
925-960MHz |
GSM |
100W |
CH7 |
1570-1580MHz |
GPSL1 |
50W |
CH8 |
1805-1920MHz |
DCS,PCS |
100W |
CH9 |
2110-2170MHz |
WCDMA |
50W |
CH10 |
2400-2485MHz |
WIFI,Drone,Bluetooth |
50W |
CH11 |
5725-5850MHz |
WIFI,Drone |
50W |
Jamming Radius: |
50-800M, the jamming radius still depends on the strength signal in given area |
||
HS Code: |
8543709200 |
||
Total output power: |
600~1200W |
||
Power Consumption: |
330W |
||
Type: |
Vehicle Bomb Jammer |
||
Dimension: |
640×540×550 mm |
||
Packing: |
Box |
||
Signal Jammer for |
20 - 6000MHz Cell Phone Signal Jammer |
||
Power supply: |
AC110 240V |
||
Weight: |
75 Kg |
||
Humidity: |
5%-95% |
||
Working Temp: |
-20ºC to +55ºC |
RF Characteristics:
RF Characteristics | Description |
Output Power | 915 Watts |
Internal Modulation | FM Hopping Frequency |
Signal Source | VCO Synthesized |
Power Supply | AC110-240V,24V or 48V DC |
Modules Per Unit | 11 |
Contol | ON/OFF with Switch |
Monitoring | Adjusted output power by DIP switch |
Antenna | External- Omni-directional for 360° |
Power Amplifier Protectors | Full VSWR Protector |
Operating Hours | Unlimited |
Applicable Area:
• Mainly used in examination rooms, prisons, gas stations, mobile phone bombs, oil depots, LPG stations,detention centers, interrogation rooms, courts,
• Reform-through-labour teams, conference rooms, movie theaters, churches, libraries, school dormitories;
• Special security and confidential occasions (confidential office, negotiation room, mobile vehicles, mobile political and business dignitaries guarding the scene;
• All kinds of military sites and other prohibited places to use mobile phones.
Terms and conditions:
Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
Payment Terms | 40% advance, 40% after one month,20% before shipping. |
Terms of Delivery | FOB HONGKONG/ USA. |
Warranty | 36 months. |
Software Updates | Free software updates will be provided for a period of 36 months. |
Extended Warranty | After 4th Year : 5% of total for each years. |
R&D Group in USA
We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.
Manufacturer in CHINA
A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.
We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer, 3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed. We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
