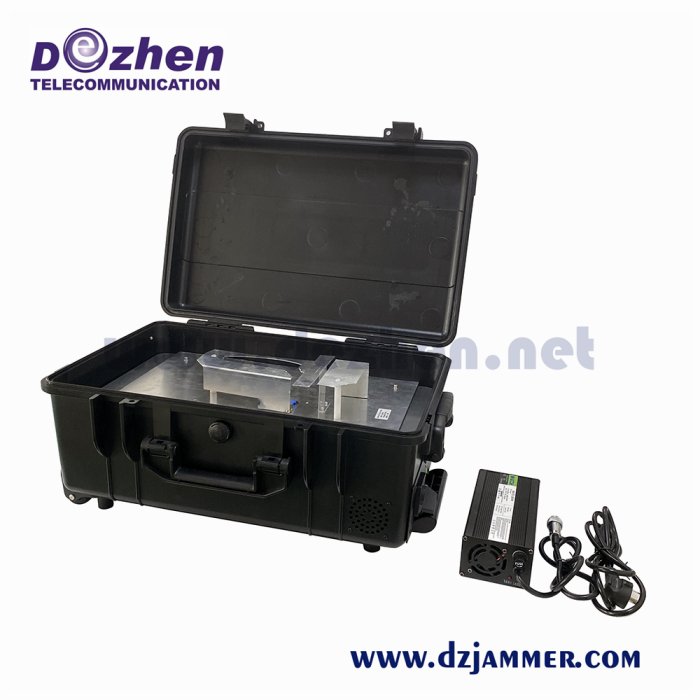

High Power DDS Convoy Jamming System With EOD Vehicle Bomb Jammer
Product description :
This type jammer is high power DDS convoy jamming system, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
It can cover,continuously and simultaneously, all the RF communication Frequencies 20MHz~3600MHz (20-6000MHz) which are most commonly used by terrorists to detonate road-side bombs (RCIEDs).Adopting the latest jamming technologies, WT700159 features ultra-high RF transmission power of 1300 watt, making a bigger shielding range around the vehicle.
Beyond the installation of the convoy protection device itself, the vehicle is customized with special RF protection for full protection of the driver and passengers.System management, including activation and controland operation is carried out through a wired remote control unit installed covertly inside the driver's console unit.
Features:
1. System operation can be performed in the driver's console unit. Each module can be ON/OFF. Backup battery or generator system can be optional.
2. Device body is no more than 90kg.
3. Continuously and simultaneously interference to the common used RF signals.
4. Equipped with high power generator to ensure excellent low noise operational capabilities.
5. Integrated backup battery system for continuous silent operation and fast start.
6. Integrated smart active cooling system to make sure the device working continuously.
7. Antenna is installed with a covert design.
8. Video camera with LCD monitor both inside and outside the vehicle provide rear viewing and monitoring.
Technical Specifications
| Type | Vehicle Bomb Jammer |
| Frequency Range | 20-3600MHz |
| Total RF Power | 1300Watt |
| Jamming Radius | 50-800M, the jamming radius still depends on the strength signal in given area |
| Channel Frequency Number | 15Bands, Max: 24Bands |
| Cooling System | Systematic Smart Cooling System |
| System Protection | VSWR, Over-voltage, Over-current, |
| Jamming Source | Digital Signal Source Synthesize Technology Adjust Frequency and Output Watt |
| Remote Control | Full System Operation Control With Battery Led display |
| Antenna Type | High Gain Omnidirectional Antennas |
| External Battery | 35AH/24-28VDC |
| Jammer Module | Each Jammer module with antenna can be used as a single jammer. All modules are controlled separately. |
| Jammer Size | 63×49.2×35.2cm |
| Jamming System Weight | 90 kg |
| Operating Temperature | -35°C ~ +80°C |
| Operating Humidity | Up to 80% |
| HS Code | 8543709200 |
| Packing | Box |
Applicable Area:
• Reform-through-labour teams, conference rooms, movie theaters, churches, libraries, school dormitories;
• Special security and confidential occasions (confidential office, negotiation room, mobile vehicles, mobile
political and business dignitaries guarding the scene;
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
