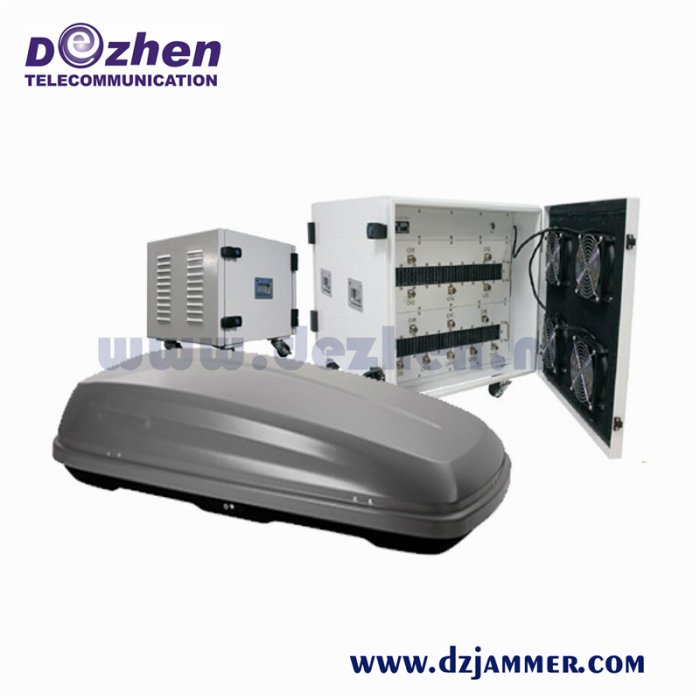

20-3000MHZ ,full frequencies bomb jammer/ vehicle jammer with wide coverage
Description:
20-3000MHZ,Using DDS Jamming technology to make the Frequency setting more precise With all the mobile signal bands ,and each band 100 watts to keep long distance. Highly Efficiency output power, long jamming radius
Slow start up design of circuit to make the device work stably.
Perfect Self Protection:
Over Heat protection – Thermal protection
Over current protection
High input Voltage and low Voltage protection
VSWR protection: against antenna miss-match including open and short circuit
Waterproof, protection against to rain
Specifications:
|
Channel |
Frequency Range |
Output Power |
|
CH1 |
500-1000 MHz |
50 dBm |
|
CH2 |
1000-1500 MHz |
50 dBm |
|
CH3 |
1500-2000 MHz |
50 dBm |
|
CH4 |
2000-2500 MHz |
50 dBm |
|
CH5 |
2500-3000 MHz |
50 dBm |
|
CH6 |
20-80 MHz |
50 dBm |
|
CH7 |
80-200 MHz |
51.3 dBm |
|
CH8 |
200-500 MHz |
51.3 dBm |
|
CH9 |
851-894 MHz |
51.3 dBm |
|
CH10 |
925-960 MHz |
51.3 dBm |
|
CH11 |
1805-1990 MHz |
51.3 dBm |
|
CH12 |
2110-2170 MHz |
51.3 dBm |
|
CH13 |
2400-2500 MHz |
50 dBm |
|
Power Supply:AC220V Jamming radius: 50-500M depending on the environment signal strength |
||
|
Power Consumption: 3900W Host Weight :79.5Kg Host Size(L×H×W)::660×480×520 mm Power Supply Weight:49.3Kg Power Supply Size:466×385×420 mm |
||
|
Humidity: 30%-95% Working temp: -10 to +55 degree Celsius |
||
Competitive Advantage:
1. with good cooling system, can operate for long time.
2. Using digital interference technology, overall effective suppression of target spectrum.
3. independent module design. Each module can separate switch,disassemble. So it is convenient for maintenance and update.
4. Use the wired control.With the control panel,we can adjust the output power and frequency in the boot state for each module.It is convenient for operating and personnel management.
5. Perfect Alarm System, fully protected circuit in case of disconnection of antennas.
Applications:
1. VIP convoy protection
2. Military camp
3. Government building
4. Police Checkpoints
5. Bomb disposal and vehicle mounting for military complexes.
6. Filed Operation activity
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
