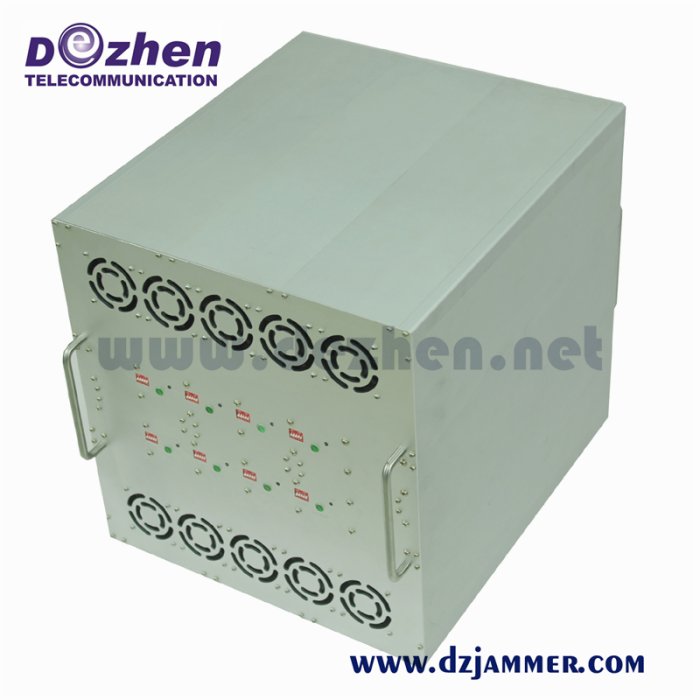

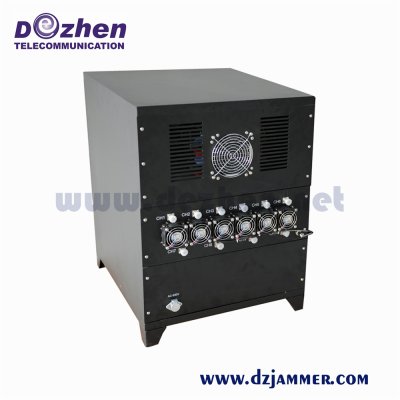

Customrized Portable Bomb Cell Phone Signal Jammer With Pelican Case
Frequency Range | 20-6000MHz/700-2600MHz |
Frequency: | CDMA/GSM/3G Cellphone |
Jammer Type | Vehicle Bomb Jammer |
Channel Number | 6 |
Each Bands Power | 50W |
Total Output Power | 300W |
Jamming Range | 10-150m |
Application | Military Units, Prison, Police, Bomb Disposal |
Product description :
This device is suitable to protect important leadership or VIP security, individual combat,SWAT teams,EOD teams,anti-terrorist units, antidrug units, bomb squad, security checkpoints, administrative law enforcement,hostage negotiations, border control and military security forces and other application areas.
Characteristics:
1. Each module is controlled separately.
2. This jammer with pelican case can add band frequency as customer's requirements.
3. It can be used in car with battery and can be fixed in special occasion.
4. The output power, jamming range and band frequency can be adjusted.
5. Use Pelican case, waterproof, shockproof, irrefrangible, dustproof and portable.
6. Two colors to choose (deep green or black)
7. Perfect Alarm System, Self Diagnostic Function
8. Automatically convert to Battery Power mode when AC Power Off (Min 2hours operating by Battery Power)
Advantages:
• Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
• Heat sink designing combing with the fans to make system in a cooling status.
• Special technology to prevent interference between each frequency band.
• Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
• Frequency bands and output power selectable.
• Each frequency band controlled by independent RF ON/OFF switches.
• Power of each frequency band can be adjustable independently.
• Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
• Antenna type options, directional or Omni-directional antennas option.
• Easy operation and installation.
• Keep for upgrade module installation.
• Working 24 hours/365days continuously.
Specifications:
Output Interface | Output Frequency |
CH1 | GSM800-900: 850-960MHz |
CH2 | GSM1800: 1805-1880MHz |
CH3 | GSM1900: 1920-1990MHz |
CH4 | 3G: 2110MHz-2170MHz |
CH5 | 4G LTE:725-770MHz(US) or 790-826MHz(EU) |
CH6 | 4G Wimax:2345-2400MHz(US) or 2620-2690MHz(EU) |
Type: | Bomb Signal Jammer |
Output Channel: | 6 channels |
Total output power | 360watt--500watt |
Jamming Range | Up to 500 meters (It depends on the signal strength in the given area) |
Jammer Module Number | 6 |
HS Code: | 8543709200 |
Packing: | Box |
Size: | 600× 630× 600 mm (L*W*H) |
Working time: | 24 hours/365days continuously. |
Weight: | Up to 35KG |
Control: | Wireless Management Control |
Power Adjustment: | Multi level potentiometer |
Power supply: | AC110-240V, DC-24V |
Cooling system: | Active "smart" with integrated incoming air filter |
Antennae type: | External high gain Omni directional Antenna |
Battery | 24V,30AH,Built-in standby battery can used for 90~120 minutes |
Frequency Ranges Selectable:
CDMA 800: | 851-894MHz |
GSM 900: | 925-960MHz |
DCS 1800: | 1800-1880MHz |
PHS 1900: | 1920-1990MHz |
3G 2100(UMTS): | 2110-2170MHz |
WIFI 2.4G Bluetooth: | 2400-2500MHz |
4G/LTE 700M: | 725-770MHz(US) |
4G/LTE 800M: | 790-826MHz(EU) |
4G Wimax: | 2300-2400MHz(US) |
4G Wimax: | 2620-2690MHz(EU) |
GPS/L1: | 1500-1600MHz |
GPS/L2: | 1200-1300MHz |
GPS/L3: | 1300-1400MHz |
GPS/L4: | 1100-1200MHz |
(Above are some Universal frequency bands, optional six channels)
Following is the standard parameters for this prison jammer,OEM/ODM and customized frequencies are accpetable as well.
Application:
Mainly used in Prisons and other large sensitive locations such as military or government buildings, the examination room, prisons, gas stations, to prevent mobile bombs, oil depots, liquefied petroleum gas stations, detention centers, interrogation rooms, courts, labor camps, conference rooms, theaters, churches, libraries, school dormitories, special security and confidential occasions To do, to discuss the room, mobile vehicles, mobile politicians and business dignitaries to defend the scene and other military powerhouse and other places prohibited the use of mobile phones.
Terms and conditions:
Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
Payment Terms | 40% advance, 40% after one month,20% before shipping. |
Terms of Delivery | FOB HONGKONG/ USA. |
Warranty | 36 months. |
Software Updates | Free software updates will be provided for a period of 36 months. |
Extended Warranty | After 4th Year : 5% of total for each years. |
