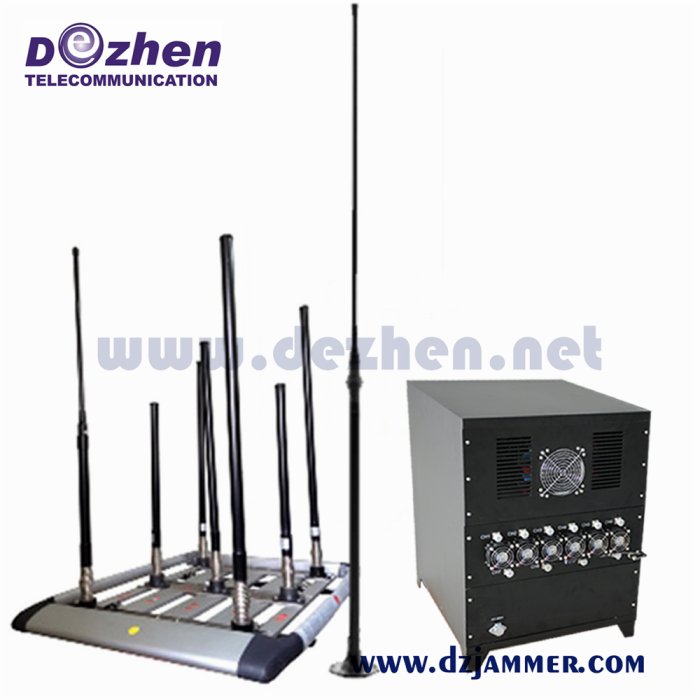

Product description:
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Vehicle Bomb Jammer |
| Channel Number | 13 |
| Each Bands Power | 50W |
| Total Output Power | 600W |
| Jamming Range | 2-90m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product Description:
High quality jammers widely use in Military Units, Prison, Police, Bomb Disposal and Security Services.
Protect military and VIP team from the road-side remote improvised explosive device (RCIED) attack detonated by the terrorists. Moreover, It can prevent terrorists using GPS location to track the vehicles efficiently.
Used for EOD. Before EOD, wireless telecommunication signals surrounding the bomb must be blocked effectively to prevent the terrorists detonating the the bomb through the wireless remote control devices and avoid the huge casualties.
It can be applied that the common used telecommunication frequency will be blocked when the Police arrest the criminals in order to prevent the criminals gang or Police insider leaking the confidence through the wireless equipments ,so that the arrest collapsed.
It also make the criminals not be able to remotely control the bomb in the key entrance of the building so that Police can quickly access to the building and round up the criminals to avoid the casualties.
Protecting the boarder and army patrol from the attack of road- side bomb RCIED denotated by the terrorists.
It can be used to prevent terrorists remotely controlling the bomb bursting points in military protection zone,government buildings and some other important places. It can also make the criminals hidden in the military protection zone not communicate with the outside gang to leak the confidence.
Specification
Affected Frequency Ranges:
| CH1 | -VHF radio,Lojack: 135-200MHz |
| CH2 | -Walky-Talky or Car Remote Control: 200-300MHz |
| CH3 | -(UHF Radio) Walky-Talky or Car Remote Control ,spy listen bug: 400-500MHz |
| CH4 | -Walky-Talky UHF Radio: 500-600MHz |
| CH5 | -Walky-Talky UHF Radio: 600-700MHz |
| CH6 | -RF Radio: 700-800MHz |
| CH7 | -GSM850/CDMA800: 850-894MHz |
| CH8 | -GSM900: 925-960MHz |
| CH9 | -GSM1800(DCS): 1805-1880MHz |
| CH10 | -GSM1900(PCS): 1920-1990MHz |
| CH11 | -3G2100(UMTS): 2110-2170MHz |
| CH12 | -4G LTE : 725-770MHz(US) or 790-826MHz(EU) |
| CH13 | -4G Wimax : 2300-2400MHz(US) or 2620-2690MHz(EU) |
- Total output power: 600-1200 watt
- Jamming range: 300-1000 Meters , the jamming radius still depends on the strength signal in given area
- External double channel directional panel antennas all the TX frequency covered down link only
- Power supply: 50 to 60Hz, 100 to 240V AC
- With AC adapter (AC100-240V-DC27V),
- Dimension: 420×480×550 mm
Advantages and Features
• Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
• Heat sink designing combing with the fans to make system in a cooling status.
• Special technology to prevent interference between each frequency band.
• Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
• Frequency bands and output power selectable.
• Each frequency band controlled by independent RF ON/OFF switches.
• Power of each frequency band can be adjustable independently.
• Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
• Antenna type options, directional or Omni-directional antennas option.
• Easy operation and installation.
• Keep for upgrade module installation.
• Working 24 hours/365days continuously.
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year :5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
