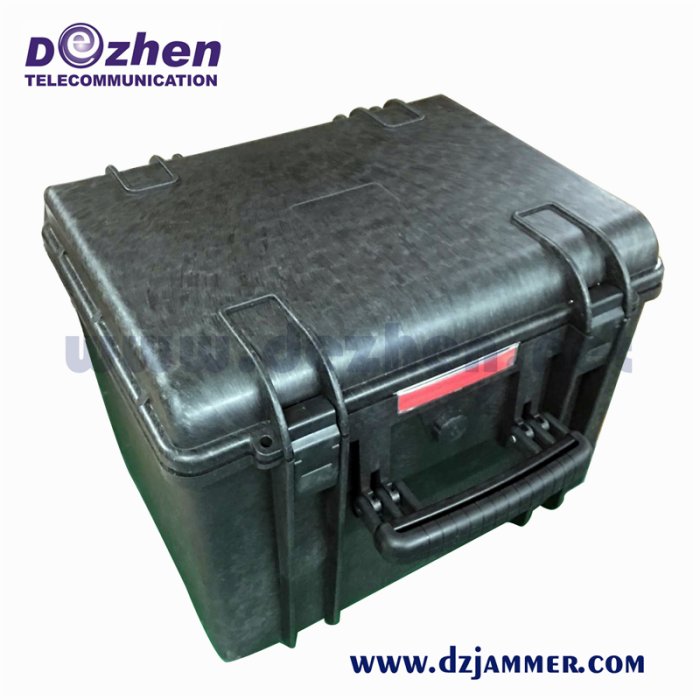

800w 8 Bands Vehicle Jammer Customized Frequency Designed For Cell Phones
Frequency Range | 20-6000MHz/700-2600MHz |
Frequency: | CDMA/GSM/3G Cellphone |
Jammer Type | Vehicle Bomb Jammer |
Channel Number | 10 |
Each Bands Power | 50W |
Total Output Power | 500W |
Jamming Range | 2-90m |
Application | Military Units, Prison, Police, Bomb Disposal |
Specification
Affected Frequency Ranges: (8bands option)
Output Interface | Output Frequency |
CH1 | -CDMA 800: 850 to 894MHz |
CH2 | -GSM 900: 925 to 960MHz |
CH3 | -GSM 1800: 1805 to 1880MHz (DCS) |
CH4 | -GSM 1900: 1920 to 1990MHz (PCS) |
CH5 | -3G: 2110 to 2170MHz |
CH6 | -4G LTE: (USA:725-770MHz) or (Europe:790-826MHz) |
CH7 | -4G Wimax: (USA:2345-2400MHz) or (Europe:2620-2690MHz) |
CH8 | -WiFi: 2400-2500MHz |
CH9 | -VHF: 136-174MHz |
CH10 | -UHF: 400-470MHz |
Total Output Power: | 400~800W |
Jamming range: | up to 500m, the jamming radius still depends on the strength signal in given area |
External double channel directional panel antennas | all the TX frequency covered down link only |
Jammer Module Number | 10 |
Power supply: | 50 to 60Hz, 100 to 240V AC |
With AC adapter: | (AC100-240V-DC27V) |
Dimension: | 420×480×130 mm |
Accessories
- High Power Cell Phone Signal Jammer
- Antennas
- Power cable
Monitor software function: (Option)
· Remote control switches of each machine.
· Remote viewing each machine working state.
· The power output of each machine remote adjustment.
· Remote viewing offline log of each machine.
· Mail receiving each machine working state.
· The system can set permissions to log on.
Terms and conditions:
Delivery Time Schedule | Delivery time is 1 or 2 months, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
Payment Terms | 40% advance, 40% after one month,20% before shipping. |
Terms of Delivery | FOB HONGKONG/ USA. |
Warranty | 36 months. |
Software Updates | Free software updates will be provided for a period of 36 months. |
Extended Warranty | After 4th Year : 5% of total for each years. |
Product Notes
- Make sure to connect all the antennas firstly before the power supply is switched on. Please do not take off antenna when the machine is working.
- Antenna shall be used vertically to the ground for working more efficiently.
- Please don't put the jammer in the bad Condition of over-wet, over-hot, high voltage and high magnetism.
- The jammer shall be installed in the position with good ventilation, and large-scale things shall be avoided to ensure the shielding effect.
Most of us know that in important places like prisons, military meeting and museums, actions have always been taken to prevent the message from being given out.
What kind of device can install in these places to reach the purpose, the Rackmount High Power Cell Phone Signal Jammer must be the one which is most suitable.
A big merit of this rockmount high power cell phone signal jammer is that each band can adjust RF power output level or turn off without influencing the other bands' operation.
The original antenna is external double channel directional panel antennas and you can select antennas to provide more flexibility regarding jamming coverage.
The jamming coverage of this jammer is so strong that the jamming range could reach 500m, but the jamming range is also determined by the strength of signal in given area.
Seen from its function this one jamming device is really a good one. If you are looking for one, come here! High quality and reasonable price is our promise.
