Basic Info.
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Vehicle Bomb Jammer |
| Channel Number | 5 |
| Each Bands Power | 50W |
| Total Output Power | 300W |
| Jamming Range | 2-90m |
| Application | Military Units, Prison, Police, Bomb Disposal |

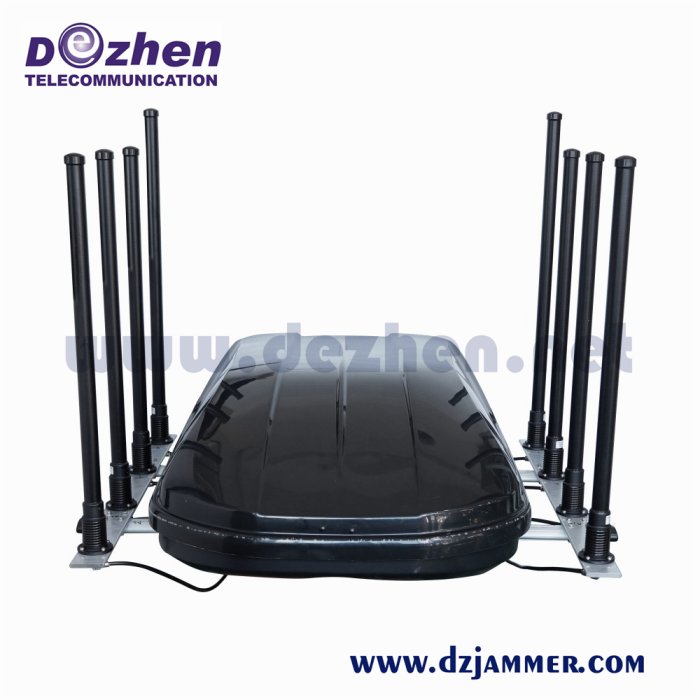

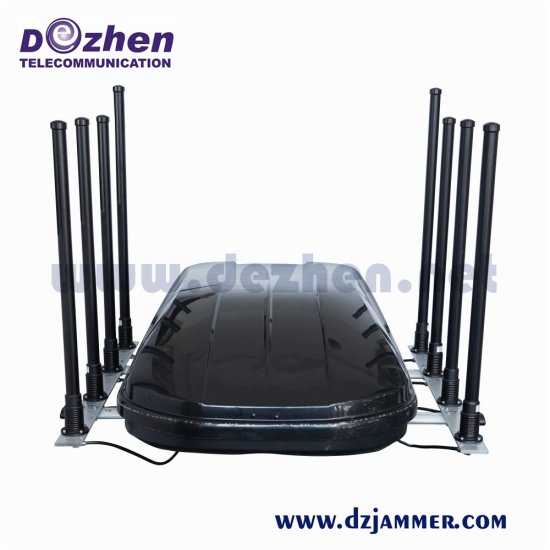

590W Vehicle High-power Wireless Signal Jammer ,Mobile Phone Pelican Jammer,8 Bands
Description:
Because of the variety of jamming targets and a wide range of uncertainties, we have adopted the more advanced and effective jamming signal modulation method, which will increase the jamming efficiency in each band, so that to provide security protection and ensure the safety of VVIPs.
The system use Broadband Omni-Directional antennas for 360 degree protection.
20-500MHZ,Using DDS Jamming technology to make the Frequency setting more precise
With all the mobile signal bands ,and each band 100 watts to keep long distance.
Highly Efficiency output power, long jamming radius Slow start up design of circuit to make the device work stably.
Perfect Self Protection: Over Heat protection – Thermal protection Over current protection High input Voltage and low Voltage protection VSWR protection: against antenna miss-match including open and short circuit portable model jammer, easy to carry.
Specifications:
| DZ-DDS-8028A ( 8 Bands) | DZ-DDS-8028B ( 8 Bands) | |
| DDS 20-100MHz 100W Civil Remote Contorl Toys, |
DDS 20-100MHz: 100W Civil Remote Contorl Toys, |
|
| DDS 100-500MHz 100W: VHF/UHF, Walkie-Talkie, 350MHz TETRA, RC Devices, |
DDS 100-500MHz 100W: VHF/UHF, Walkie-Talkie, 350MHz TETRA, RC Devices, |
|
| 920-965MHz: 100W GSM 900 |
850-895MHz: 100W CDMA 900 |
|
| 1800-1880MHz 100W DCS GSM 1800 |
1920-1990MHz 100W PCS CDMA 1900 |
|
| 2100-2170MHz: 100W 3G UMTS |
2100-2170MHz: 100W 3G UMTS |
|
| 2620-2690MHz: 30W 4G LTE & WiMax |
2620-2690MHz: 30W 4G LTE & WiMax |
|
| 2400-2500MHz: 30W WiFi & Bluetooth |
2400-2500MHz: 30W WiFi & Bluetooth |
|
| 1520-1670MHz: 30W GPS L1, SAT Cell Phone |
1520-1670MHz: 30W GPS L1, SAT Cell Phone |
|
| (Option) 5.0-5.5GHz:10W, 5.5-6.0GHz:10W WiFi 11.a |
(Option) 5.0-5.5GHz:10W, 5.5-6.0GHz:10W WiFi 11.a |
|
| 590 W | 590 W | |
Other Product Details
| Jamming range | 500-1000 meters@－75dBm | |
| Jammer Module Number | 8 | |
| Cooling System | Systematic Smart Cooling System | |
| System Protection | VSWR, Over-voltage, Over-current | |
| Remote Control (Option) | Full System Operation Control | |
| Power supply | 50 to 60Hz, 100 to 240V AC | |
| With AC adapter | (AC100-240V-DC27V) | |
| Design | Customized Jammer | |
| HS Code | 8543709200 | |
| Packing | Neutral Packing | |
| Dimension | 86 × 62 × 69 Centimeters | |
| Weight | 76 Kilograms | |
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year :5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
