Product description:
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | UAV Drone Jammer |
| Channel Number | 6 |
| Each Bands Power | 7W |
| Total Output Power | 40W |
| Jamming Range | 20-50m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product Description

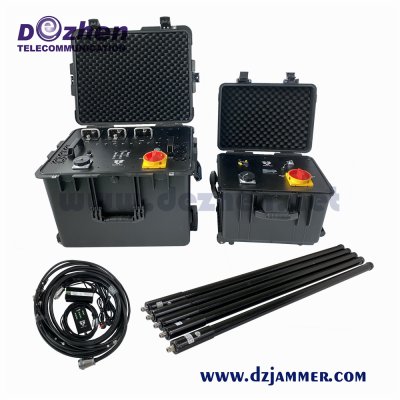

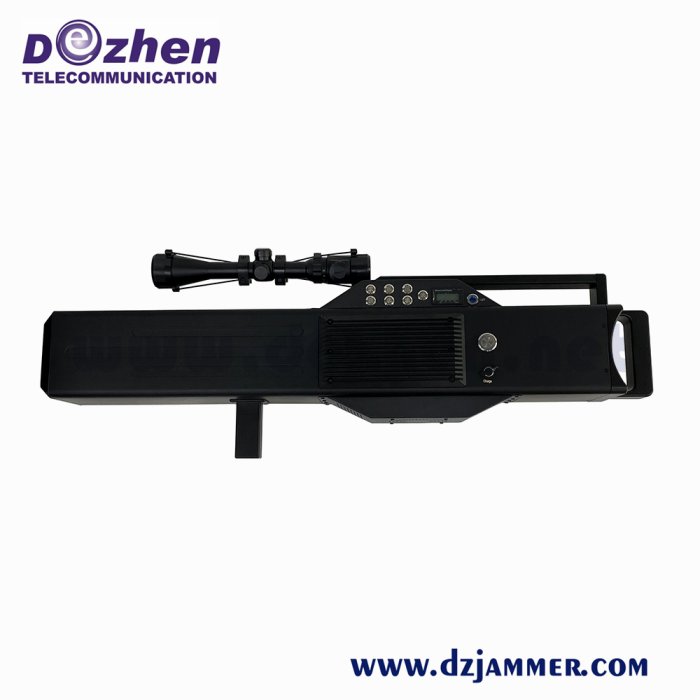

The portable drone jammer is our company's latest product designed by R&D department,the drone jammer disables the targeted drones by remote-control signal and GPS signal, to force the drone fall or return.
Effective interference with UAV's Remote-Control Signal WIFI 2400MHz, GPS signal 1500MHz, Remote-Control Signal and Image Transmission Signal WIFI 5800MHz.
Specification:
| CH1 WIF2.4G 2400-2500MHz 40 dBm 7W |
| CH2 GPS1 1560-1620MHz 40 dBm 7W |
| CH3 WIFI5.8G 5725-5850MHz 37 dBm 8W |
| CH4 GPS2 1200-1300MHz 37 dBm 6W |
| CH5 WIFI5.8G 5725-5850MHz 37 dBm 7W |
| CH6 WIFI5.8G 5725-5850MHz 37 dBm 5W |
| Power supply: AC110~220V/DC-48V (option) | Total RF Power : 30W |
| Built-in battery: DC-24V 8AH/Support 120min | Full Power Working (option). |
| Field strength at -80dBm, Shielding area | 500 ~ 1000m @ according to signal density of mobile network. |
| Power consumption | 90W |
| Weight: | 6.0Kg |
| Size(length × wind × high): | 960×400×230 mm |
| Humidity: | 30%-95% |
| Running Temperature: | -10 to +55 Celsius Degree |
Feature and advantage :
Effective interference with UAV s Remote-Control Signal 2400MHz, GPS signal 1500MHz, Remote-Control Signal and Image Transmission Signal 5800MHz.
Outdoor waterproof case with protection level of IP55
UHF broadband jamming technology: highly effective power & long jamming distance
Separate control of each module, convenient operation.
High quality tubular radiator, effective in radiating heat.
High integration components; the moderating circuit-starting design avoids a spark when the device turns on/off. High integration & Stable operation.
Batteries are separate from the main device, easy to be replaced and maintained.
Taking use of super-high frequency with high effective power.
Effective output power (channel power) and bigger interfere radius.
Only interfere downlink frequency of mobile system,without disturb normally working of Base Stations.
Imported elements: Slow start up design of circuit.
These elements can maintain the stable operation condition with high integration.
Application area:
Mainly applied to prisons, airports, scientific research centers, detention houses, interrogation rooms, courthouses, labor camp, that forbid aerial photography by use of UAVs important security activities, emergency scenes, confidential group security activities, important government agencies, troops, prisons, detention centers ,all kinds of military important places, etc.
