Status / Alarm LEDs Drone Jamming Device WIFI 5.8G GPS 100-240VAC Power Supply
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | UAV Drone Jammer |
| Channel Number | 6 |
| Each Bands Power | 50W |
| Total Output Power | 300W |
| Jamming Range | 20-50m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product Description:

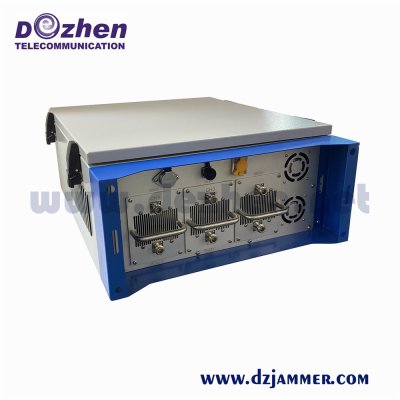

This Six Bands Prison Drone Signal Shield is a versatile signal blocker that can be installed indoors and supported outdoors because its enclosure is waterproof, with a built-in fan and a good cooling system.
The frequency segment can be customized. Its normal frequency setting is 2G,3G,4G + Wi-Fi or 2G,3G ,4G + GPS. The output power of each channel is 10-30W, and the total output power is 300W.
The shielding range of this prison signal shielding device can be Up to 500 meters, and its configuration antenna can also be selected according to your needs.
Applicable place:
• Mainly used in examination rooms, prisons, gas stations, mobile phone bombs, oil depots, LPG stations,detention centers, interrogation rooms, courts,
• Reform-through-labour teams, conference rooms, movie theaters, churches, libraries, school dormitories;
Features:
1.Up to Six Frequency Bands.
2.Scew controls to adjust Output Power
3.Only Interferes w/Downlink Base Station Frequencies
4.Over Temperature and VSWR Protection
5.Fan Cooled Rack Enclosure with Casters
6.Optional Status Monitoring Software for Client PC
Specifications
| Output Interface | Output Frequency |
| CH1 | 2.4G: 2400-2500MHz |
| CH2 | 5.8G: 5725-5850MHz |
| CH3 | GPSL1: 1560-1620MHz |
| CH4 | 868-920: 868-916MHz |
| CH5 | WiFi3.6G: 3500-3600MHz |
| CH6 | 433: 433 MHz |
| Jamming range: | 50-1000m(under Signal level ≤-85dBm)@according to the signal density mobile network |
| HS Code: | 8543709200 |
| Dimensions Of Device: | 530 x 300x 200mm not include antennas |
| Weight Of Product: | 25kg |
| Type: | Drone jammer |
| Total output power: | 300W |
| Packing: | Neutral Packing |
| Signal Jammer for: | 300W 6 bands High Power Drone jammer |
| Power Supply: | AC adapter (50 to 60Hz/100 to 240V AC -DC27V) |
| Antenna Type: | Directional Antenna or Omini-directional antenna |
| Operating Temp : | -20 to +50ºC |
| Storage Temp: | -40 to +60ºC |
| Humidity : | 5%-80% |
We could supply customized service by your detail requirements about frequencies setting. All 6 Frequency modules we can mix very flexibly.
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Package contents:
1 pc One main jammer unit
6 pcs Directional Antennas 90 Degree
1 pc Antennas frame with 1.5m cable
1 pc Power cord
1 pc Wireless OFF/ON remote controller 315MHz
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
