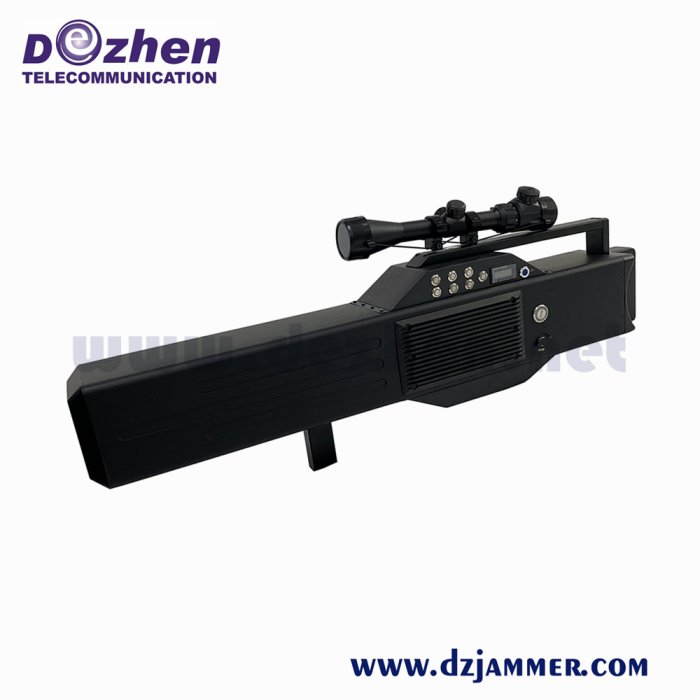

    Portable 6 Channels High Power Drone Jammer

    Price:

    • Model: 101JG-4
    • Shipping Weight: 12.25kg
    • 1000 Units in Stock


    Quantity Discounts

    Store Quantity Discount Policy

    QuantityDiscount
    5 - 1910%
    20 - 4915%
    50 - 9920%
    100 - 19925%
    200 + 30%
    * The way the Order Total modules work is that they show up at checkout time
    (complete orders today,deliverd around 30/12/2024)
    Details

    Product description:

    Frequency Range 20-6000MHz/700-2600MHz
    Frequency: CDMA/GSM/3G Cellphone
    Jammer Type UAV Drone Jammer
    Channel Number 4
    Each Bands Power 10W
    Total Output Power 40W
    Jamming Range 20-50m
    Application Military Units, Prison, Police, Bomb Disposal

    Product description:

    This portable drone jammer is our company  latest product designed by R&D department,the drone jammer disables the targeted drones by remote-control signal and GPS signal, to force the drone fall or return.

    Specification:

    CH1            WIF2.4G     2400-2500MHz            40 dBm    10W
    CH2             GPS1         1560-1620MHz           40 dBm      10W
    CH3            WIFI5.8G    5725-5850MHz           37 dBm      10W
    CH4            GPSL2-5     1200-1500MHz           37 dBm      10W
    Power supply: AC110~220V/DC-48V (option) Total RF Power : 40W
    Built-in battery: DC-24V 8AH/Support 120min Full Power Working (option).
     Field strength at -80dBm, Shielding area 500 ~ 1000m @ according to signal density of mobile network.
    Power consumption 90W
    Weight: 6.0Kg
    Size(length × wind × high): 960×400×230 mm
    Humidity: 30%-95%
    Running Temperature: -10 to +55 Celsius Degree

    Feature and advantage :

    • Effective interference with UAV s Remote-Control Signal 2400MHz, GPS signal 1500MHz,
    • Remote-Control Signal and Image Transmission Signal 5800MHz.
    • Outdoor waterproof case with protection level of IP55
    • UHF broadband jamming technology: highly effective power & long jamming distance
    • Separate control of each module, convenient operation.
    • High quality tubular radiator, effective in radiating heat.
    • High integration components; the moderating circuit-starting design avoids a spark when the device turns on/off. High integration & Stable operation.
    • Batteries are separate from the main device, easy to be replaced and maintained.
    • Taking use of super-high frequency with high effective power.
    • Effective output power (channel power) and bigger interfere radius.
    • Only interfere downlink frequency of mobile system,without disturb normally working of Base Stations.
    • Imported elements: Slow start up design of circuit.
    • These elements can maintain the stable operation condition with high integration.

    Application area:
    Mainly applied to prisons, airports, scientific research centers, detention houses,  interrogation rooms, courthouses, labor camp, that forbid aerial photography by use of UAVs important security activities, emergency scenes, confidential group security activities, important government agencies, troops, prisons, detention centers ,all kinds of military important places, etc.

    R&D Group in USA

    We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.

    Manufacturer in CHINA

    A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.
    We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer,  3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.

    We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed.

    We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.

    Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
