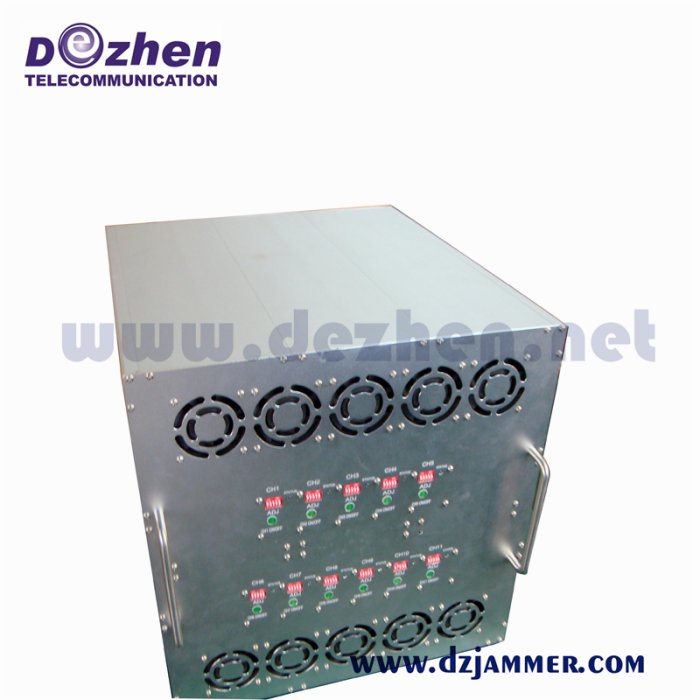

Adjustable Vehicle powerful RF Cell Phone Signal Jammer Blocking All Frequency Signals
Frequency Range | 20-6000MHz/700-2600MHz |
Frequency: | CDMA/GSM/3G Cellphone |
Jammer Type | UAV Drone Jammer |
Channel Number | 12 |
Each Bands Power | 45W |
Total Output Power | 868W |
Jamming Range | 20-50m |
Application | Military Units, Prison, Police, Bomb Disposal |
Product Description:
iIt can cover, continuously and simultaneously, all the RF communication Frequencies 20MHz~6000MHz (or 20-3600MHz) which are most commonly used by terrorists to detonate road-side bombs (RCIEDs).
Adopting the latest jamming technologies, the features ultra-high RF transmission power of 1300 watt, making a bigger shielding range around the vehicle.
Beyond the installation of the convoy protection device itself, the vehicle is customized with special RF protection for full protection of the driver and passengers.
System management, including activation and control and operation is carried out through a wired remote control unit installed covertly inside the driver’s console unit.
Application fields:
-Bomb disposal and military automobile allocation;
-Field operations;
-Special troops;
-VIP protection;
-Bandit suppression.
Specification:
Output Interface | Output Frequency | RF Output watt |
CH1 | -20-30MHz/Radio Control Toys, Analog phones&Alarm | 45W |
CH2 | -30-50MHz/Radio Control Toys, Analog phones&Alarm | 45W |
CH3 | -135-175MHz/Walky-talky ( VHF ) | 55W |
CH4 | -310-350MHz/Walky-talky ( UHF300 ) | 55W |
CH5 | -400-480MHz/Walky-talky ( UHF 350 ) | 55W |
CH6 | -800-850MHz/Walky-Talky(UHF700/800), TETRA | 100W |
CH7 | -850-895MHz/Cellular CDMA/TDMA,alky-Talky ( UHF800/900 ) | 120W |
CH8 | -925-960MHz/Cellular GSM900 | 120W |
CH9 | -1520-1580MHz/GPS & Satellite; Thuraya; Iridium; Odyssey; GlobalStar; Inmarsat; Aces; Elipso | 45W |
CH10 | -1805-1990MHz/Cellular HGSM1800/ DCS??Cellular GSM1900/ PCS (+ PHS ) | 100W |
CH11 | -2110-2170MHz/Cellular UMTS / WCDMA ( 3G ) | 100W |
CH12 | -2400-2500MHz/WLAN & Bluetooth & Wifi | 28W |
Total RF Power | 868 Watt | |
Antenna Type: | High Gain Omnidirectional Antennas | |
Power Supply Source: | Additional AC Generator ( 5000W) | |
Jammer Module Number | 12 | |
Total Power Consumption ( +28VDC ): | Max 7000VA | |
Total System Weight: Approx. | 180kg | |
Operating Humidity: | Up to 80% |
Accessories:
- Power cable
- Antennas
- User manual
Terms and conditions:
Delivery Time Schedule | Delivery time is 1 or 2 months, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
Payment Terms | 40% advance, 40% after one month,20% before shipping. |
Terms of Delivery | FOB HONGKONG/ USA. |
Warranty | 36 months. |
Software Updates | Free software updates will be provided for a period of 36 months. |
Extended Warranty | After 4th Year : 5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
