    Military Waterproof Outdoor 6 bands 600W High Power WiFi GPS RF Signal Drone Jammer up to 1500m

    Price:

    • Model: DZ808JB-8
    • Shipping Weight: 26.82kg
    • 1000 Units in Stock


    Quantity Discounts

    Store Quantity Discount Policy

    QuantityDiscount
    5 - 1910%
    20 - 4915%
    50 - 9920%
    100 - 19925%
    200 + 30%
    * The way the Order Total modules work is that they show up at checkout time
    (complete orders today,deliverd around 30/11/2024)
    Details

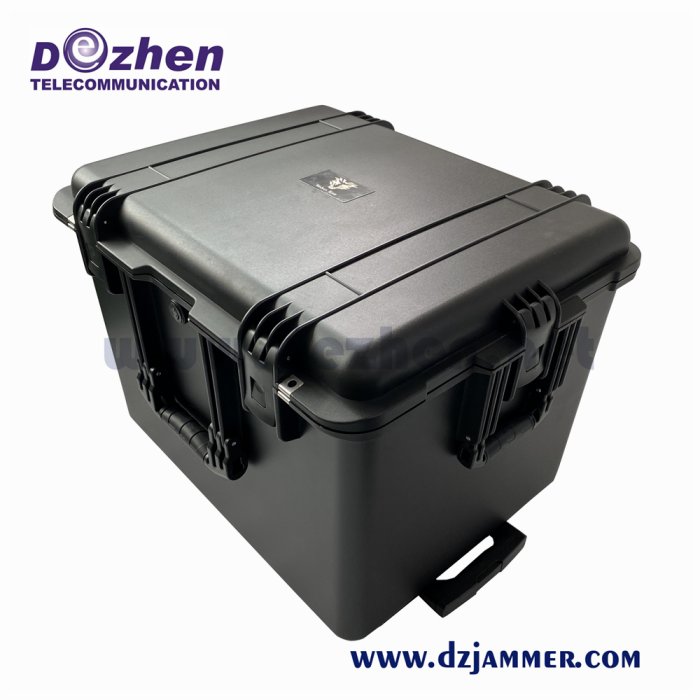

    Military Waterproof Outdoor 600W High Power WIFI GPS RF Signal Drone Jammer Up To 1500M

    Frequency Range 20-6000MHz/700-2600MHz
    Frequency: CDMA/GSM/3G Cellphone
    Jammer Type UAV Drone Jammer
    Channel Number 6
    Each Bands Power 50W
    Total Output Power 300W
    Jamming Range 20-50m
    Application Military Units, Prison, Police, Bomb Disposal

    Product Description

    This Six Bands Drone Signal Shield is a versatile signal blocker that can be installed indoors and supported outdoors because its enclosure is waterproof, with a built-in fan and a good cooling system.

    The frequency segment can be customized. Its normal frequency setting is 2G,3G,4G + Wi-Fi or 2G,3G ,4G + GPS. The output power of each channel is 10-30W, and the total output power is 600W. The shielding range of this prison signal shielding device can be Up to 2500 meters, and its configuration antenna can also be selected according to your needs.

    There are several types of antennas. One is a directional antenna. The coverage of this type of antenna is relatively long, and the signal can be covered for the orientation you need, rather than covering the signal centered on a certain point. Another type of antenna is a fiberglass omnidirectional antenna that radiates a signal outward at a certain point. The range in which the gain of the antenna is also different is also different. These are all you can customize as needed. Please contact us if you need it.

    Applicable place:

    Jammers for prisons and other large sensitive locations such as military or governmental compounds.

    Homeland Security, Correctional Centers,Petrochemical Industry, Sports Venues and Theaters, VIP Convoy Protection, Bomb Prevention/Disposal, Schools and Universities Government and Military, Power Generating Plants...etc.

    Features:

    1.Up to Six Frequency Bands.

    2.PLL Synthesized Signal Source

    3.Scew controls to adjust Output Power

    4.10dBi Directional Antennas each Band

    5.Only Interferes w/Downlink Base Station Frequencies

    6.Slow Start-up Circuitry for Long Term Reliability

    7.Over Temperature and VSWR Protection

    8.Status/Alarm LEDs

    9.Fan Cooled Rack Enclosure with Casters

    10.100-240VAC Power Supply Source

    11.Optional Status Monitoring Software for Client PC

    Specifications

    Output Interface Output Frequency
    CH1 2.4G: 2400-2500MHz
    CH2 5.8G: 5725-5850MHz
    CH3 GPSL1: 1560-1620MHz
    CH4 868-920: 868-916MHz
    CH5 WiFi3.6G: 3500-3600MHz
    CH6 433: 433 MHz
    Jamming range: Up to 2500m(under Signal level ≤-85dBm)@according to the signal density mobile network
    HS Code: 8543709200
    Dimensions Of Device: 530 x 300x 200mm not include antennas
    Weight Of Product:  25kg
    Type: Drone jammer
    Total output power: 600W
    Packing: Neutral Packing
    Signal Jammer for: 600W 6 bands High Power Drone jammer
    Power Supply:  AC adapter (50 to 60Hz/100 to 240V AC -DC27V)
    Antenna Type: Directional Antenna or Omini-directional antenna
    Operating Temp : -20 to +50ºC
    Storage Temp: -40 to +60ºC
    Humidity : 5%-80%

    We could supply customized service by your detail requirements about frequencies setting. All 6 Frequency modules we can mix very flexibly.

    CDMA 800: 851-894MHz
    GSM 900: 925-960MHz
    DCS 1800: 1800-1880MHz
    PHS 1900: 1920-1990MHz
    3G 2100(UMTS): 2110-2170MHz
    WIFI 2.4G Bluetooth: 2400-2500MHz
    WiFi3.6G:  3500-3600MHz
    Wi-Fi5.2G:  5100-5500MHz
    WIFI 5.8G 5725-5850MHz
    4G/LTE 700M: 725-770MHz(US)
    4G/LTE 800M: 790-826MHz(EU)
    4G Wimax: 2300-2400MHz(US)
    4G Wimax: 2620-2690MHz(EU)
    GPS/L1: 1500-1600MHz
    GPS/L2: 1200-1300MHz
    GPS/L3: 1300-1400MHz
    GPS/L4: 1100-1200MHz
    VHF: 135-174MHz
    UHF: 400-470MHz
    Lojack: 167-175MHz
    RF315: 315MHz
    RF433: 433MHz
    RF868: 868MHz

    Package contents:

    1 pc One main jammer unit
    6 pcs Directional Antennas 90 Degree
    1 pc Antennas frame with 1.5m cable
    1 pc Power cord
    1 pc Wireless OFF/ON remote controller 315MHz

    Terms and conditions:

    Delivery Time Schedule

    Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.

    Payment Terms

    40% advance, 40% after one month,20% before shipping.

    Terms of Delivery

    FOB HONGKONG/ USA.

    Warranty

    36 months.

    Software Updates

    Free software updates will be provided for a period of 36 months.

    Extended Warranty

    After 4th Year : 5% of total for each years.

    Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.

    Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .

    R&D Group in USA

    We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.

    Manufacturer in CHINA

    A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.

    We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer,  3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed. We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
    Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
