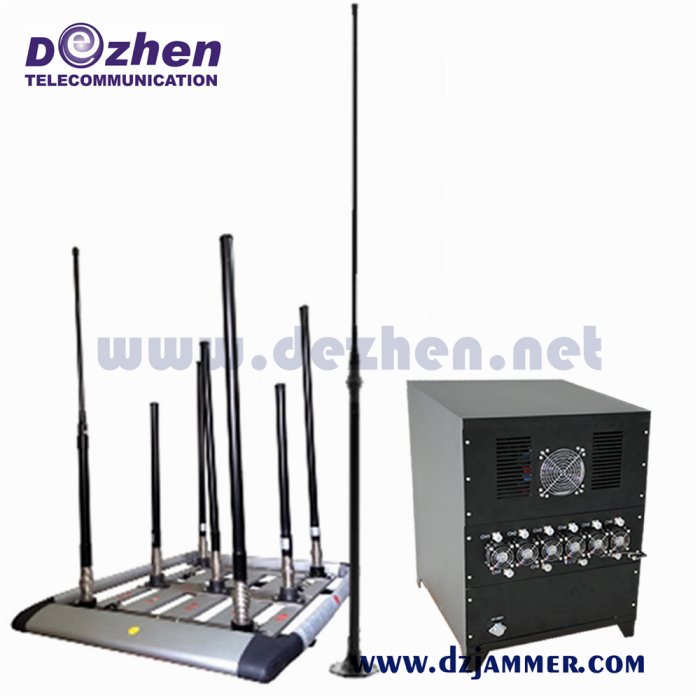

Military 600W High Power WIFI5.8G GPS Cell Phone Signal Jammer Waterproof Outdoor UAV Signal Drone Jammer
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | UAV Drone Jammer |
| Channel Number | 6 |
| Each Bands Power | 50W |
| Total Output Power | 300W |
| Jamming Range | 20-50m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product Description
This Six Bands Drone Signal Shield is a versatile signal blocker that can be installed indoors and supported outdoors because its enclosure is waterproof, with a built-in fan and a good cooling system.
The frequency segment can be customized. Its normal frequency setting is 2G,3G,4G + Wi-Fi or 2G,3G ,4G + GPS. The output power of each channel is 10-30W, and the total output power is 600W.
The shielding range of this prison signal shielding device can be Up to 2500 meters, and its configuration antenna can also be selected according to your needs.
There are several types of antennas. One is a directional antenna. The coverage of this type of antenna is relatively long, and the signal can be covered for the orientation you need, rather than covering the signal centered on a certain point.
Another type of antenna is a fiberglass omnidirectional antenna that radiates a signal outward at a certain point. The range in which the gain of the antenna is also different is also different. These are all you can customize as needed. Please contact us if you need it.
Applicable place:
Jammers for prisons and other large sensitive locations such as military or governmental compounds.
Homeland Security, Correctional Centers,Petrochemical Industry, Sports Venues and Theaters, VIP Convoy Protection, Bomb Prevention/Disposal, Schools and Universities Government and Military, Power Generating Plants...etc.
Features:
1.Up to Six Frequency Bands.
2.PLL Synthesized Signal Source
3.Scew controls to adjust Output Power
4.10dBi Directional Antennas each Band
5.Only Interferes w/Downlink Base Station Frequencies
6.Slow Start-up Circuitry for Long Term Reliability
7.Over Temperature and VSWR Protection
8.Status/Alarm LEDs
9.Fan Cooled Rack Enclosure with Casters
10.100-240VAC Power Supply Source
11.Optional Status Monitoring Software for Client PC
Specifications
| Output Interface | Output Frequency |
| CH1 | 2.4G: 2400-2500MHz |
| CH2 | 5.8G: 5725-5850MHz |
| CH3 | GPSL1: 1560-1620MHz |
| CH4 | 868-920: 868-916MHz |
| CH5 | WiFi3.6G: 3500-3600MHz |
| CH6 | 433: 433 MHz |
| Jamming range: | Up to 2500m(under Signal level ≤-85dBm)@according to the signal density mobile network |
| HS Code: | 8543709200 |
| Dimensions Of Device: | 530 x 300x 200mm not include antennas |
| Weight Of Product: | 25kg |
| Type: | Drone jammer |
| Total output power: | 600W |
| Packing: | Neutral Packing |
| Signal Jammer for: | 600W 6 bands High Power Drone jammer |
| Power Supply: | AC adapter (50 to 60Hz/100 to 240V AC -DC27V) |
| Antenna Type: | Directional Antenna or Omini-directional antenna |
| Operating Temp : | -20 to +50ºC |
| Storage Temp: | -40 to +60ºC |
| Humidity : | 5%-80% |
We could supply customized service by your detail requirements about frequencies setting. All 6 Frequency modules we can mix very flexibly.
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Package contents:
1 pc One main jammer unit
6 pcs Directional Antennas 90 Degree
1 pc Antennas frame with 1.5m cable
1 pc Power cord
1 pc Wireless OFF/ON remote controller 315MHz
Terms and conditions:
|
Delivery Time Schedule |
Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
|
Payment Terms |
40% advance, 40% after one month,20% before shipping. |
|
Terms of Delivery |
FOB HONGKONG/ USA. |
|
Warranty |
36 months. |
|
Software Updates |
Free software updates will be provided for a period of 36 months. |
|
Extended Warranty |
After 4th Year : 5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
