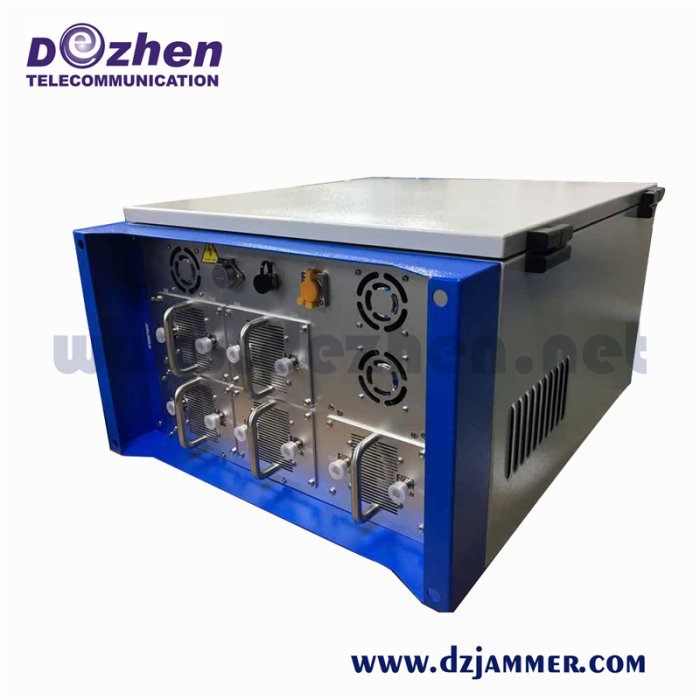

Outdoor Drone UAV Jammer/Anti jammer 4/ 5/ 6/ 8 Bands Omni Antennas
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | UAV Drone Jammer |
| Channel Number | 4 |
| Each Bands Power | 30W |
| Total Output Power | 120W |
| Jamming Range | 20-50m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product description:
This is a portable type signal shielding device .It is easy to carry, flexible to use, also with optional built-in high capacity battery ,
Detonation and confidence leaking, threaten from Road-side Remote Improvised Explosive Device (RCIED) have been a serious risk for the lives' safety of the bomb disposal troop and law enforcement quality of anti-terrorism unit. To ensure the smooth process of law enforcement task and keep people’s lives safety, have been the tremendous challenge and task in many parts of the world.
These are the reasons that this model of jammer is so important!
so it especially suitable for application in: large venue, infantry troop and military security force, the SWAT team, counter-terrorism unit, the drug control unit, explosion-proof, EOD team, checkpoint, the hostage negotiation, and border control, etc.
Specifications:
| DZ–3084-OMN (4 bands) |
DZ–3085-OMN (5 bands) |
DZ–3086-OMN (6 bands) |
DZ–3088-OMN (8 bands) |
| 433MHz: 50W Remote Control |
433MHz: 50W Remote Control |
433MHz: 50W Remote Control |
433MHz: 50W Remote Control |
| 5.8GHz: 2W WiFi 11.a |
5.8GHz: 2W WiFi 11.a |
5.8GHz: 2W WiFi 11.a |
5.8GHz: 2W WiFi 11.a |
| 2.4-2.5GHz:20W WiFi 11.g, b, Bluetooth |
2.4-2.5GHz:20W WiFi 11.g, b, Bluetooth |
2.4-2.5GHz:20W WiFi 11.g, b, Bluetooth |
2.4-2.5GHz:20W WiFi 11.g, b, Bluetooth |
| GPS L1 + GLONASS L1 Hz:40W | GPS L1 + GLONASS L1 Hz:40W | GPS L1 + GLONASS L1 Hz:40W | GPS L1 + GLONASS L1 Hz:40W |
| N/A | 868-915MHz:25 W Remote Cotrol |
868-915MHz:25 W Remote Cotrol |
868-915MHz:25 W Remote Cotrol |
| N/A | N/A | GPS L2 + GLONASS L2:15W | GPS L2 + GLONASS L2 :15W |
| N/A | N/A | N/A | GPS L5 1176MHz :15W |
| N/A | N/A | N/A | GPS L3 + L4:15W 1370-1385MHz |
| Total : 112W | Total : 137 W | Total : 152 W | Total : 182 W |
Product Details
| Jamming range | Radius 300-800+ meters | ||
| Jammer Module Number | 4,5,6,8 | ||
| Cooling System | Systematic Smart Cooling System | ||
| System Protection | VSWR, Over-voltage, Over-current | ||
| Remote Control (Option) | Full System Operation Control | ||
| Power supply | 50 to 60Hz, 100 to 240V AC | ||
| With AC adapter | (AC100-240V-DC27V) | ||
| Design | Customized Jammer | ||
| HS Code | 8543.70.00 | ||
| Packing | Neutral Packing | ||
| Dimension | 470 x 380 x 290mm | ||
| Weight | 19Kg | ||
Main Export Markets:
- Asia
- Australasia
- Central/South America
- Eastern Europe
- Mid East/Africa
- North America
- Western Europe
Any third-party trademarks or images shown here are for reference purposes only. We are not authorized to sell any items bearing such trademarks.
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year :5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
