Product description:
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | UAV Drone Jammer |
| Channel Number | 4 |
| Each Bands Power | 10W |
| Total Output Power | 40W |
| Jamming Range | 20-50m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product description:

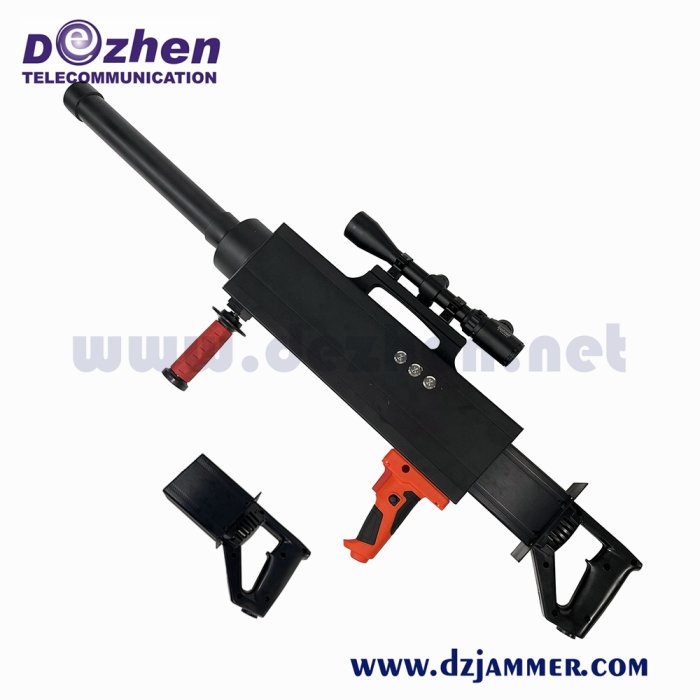

This portable drone jammer is our company latest product designed by R&D department,the drone jammer disables the targeted drones by remote-control signal and GPS signal, to force the drone fall or return.
Specification:
| CH1 WIF2.4G 2400-2500MHz 40 dBm 10W |
| CH2 GPS1 1560-1620MHz 40 dBm 10W |
| CH3 WIFI5.8G 5725-5850MHz 37 dBm 10W |
| Power supply: AC110~220V/DC-48V (option) | Total RF Power : 30W |
| Built-in battery: DC-24V 8AH/Support 120min | Full Power Working (option). |
| Field strength at -80dBm, Shielding area | 500 ~ 1000m @ according to signal density of mobile network. |
| Power consumption | 90W |
| Weight: | 6.0Kg |
| Size(length × wind × high): | 960×400×230 mm |
| Humidity: | 30%-95% |
| Running Temperature: | -10 to +55 Celsius Degree |
Feature and advantage :
Effective interference with UAV s Remote-Control Signal 2400MHz, GPS signal 1500MHz,
Remote-Control Signal and Image Transmission Signal 5800MHz.
Outdoor waterproof case with protection level of IP55
UHF broadband jamming technology: highly effective power & long jamming distance
Separate control of each module, convenient operation.
High quality tubular radiator, effective in radiating heat.
High integration components; the moderating circuit-starting design avoids a spark when the device turns on/off. High integration & Stable operation.
Batteries are separate from the main device, easy to be replaced and maintained.
Taking use of super-high frequency with high effective power.
Effective output power (channel power) and bigger interfere radius.
Only interfere downlink frequency of mobile system,without disturb normally working of Base Stations.
Imported elements: Slow start up design of circuit.
These elements can maintain the stable operation condition with high integration.
Application area:
Mainly applied to prisons, airports, scientific research centers, detention houses, interrogation rooms, courthouses, labor camp,that forbid aerial photography by use of UAVs important security activities, emergency scenes, confidential group security activities, important government agencies, troops, prisons, detention centers ,all kinds of military important places, etc.
R&D Group in USA
We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.
Manufacturer in CHINA
A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.
We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer, 3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.
We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed.
We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
