Basic Info.
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | UAV Drone Jammer |
| Channel Number | 8 |
| Each Bands Power | 100W |
| Total Output Power | 720W |
| Jamming Range | 20-50m |
| Application | Military Units, Prison, Police, Bomb Disposal |

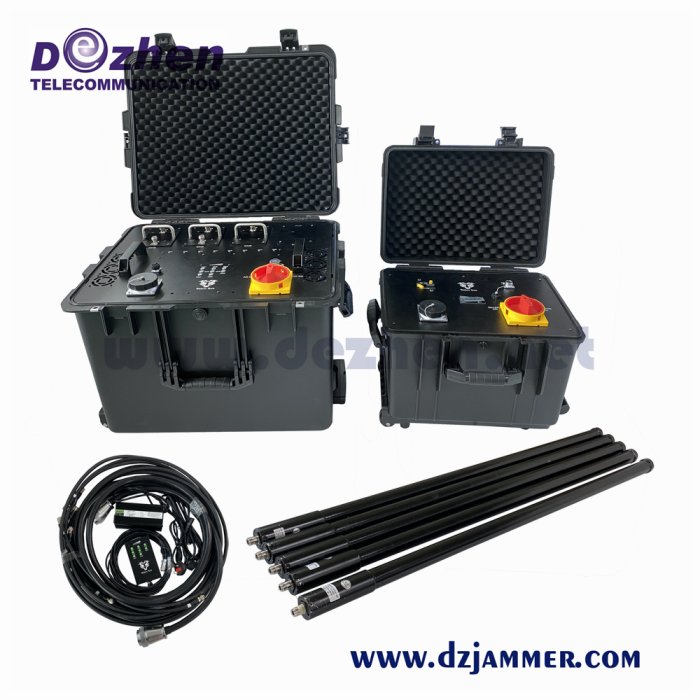

Drone Jammer 5.8GHz, 2.4GHz, 433MHz , Max 720W 8 Bands Signal detector,Glonass L1+L2
Description:
This is a portable type mobile phone signal shielding device . It is easy to carry, flexible to use, also with optional built-in high capacity battery , so it especially suitable for application in: large venue, infantry troop and military security force, the SWAT team, counter-terrorism unit, the drug control unit, explosion-proof, EOD team, checkpoint, the hostage negotiation, and border control, etc.
Functional characteristics:
1. High RF power, shielding all 2G, 3G, 4G signals, frequencies can be customized by customers.
2. it can with multiple power supplies :if with built-in battery, it can provide power for the jammer working about 2 hours. Also it can be powered by 220V AC or an on-board power supply.
3. Efficient cooling heat dissipation system ,including high performance aluminum alloy heat sink and several wind fans, so the jammer can non-stopped work for long time.
4. this jammer can be customized as 4 0r 5 or 6 bands ,and each band could be 50 watts or 100watts as customer’s request.
Specifications:
| Output Interface | Output Frequency | RF Output watt | Description |
| CH1 | 433MHz | 100W | |
| CH2 | 868-912MHz | 100W | |
| CH3 | 2400-2500MHz | 100W | WiFi 11.b,g & Bluetooth |
| CH4 | 1560-1620MHz | 100W | GPS L1 + Glonass L1 + GALILEO : E1 + BeiDou B1 Freq |
| CH5 | 1220-1290MHz | 100W | GPS L2 + Glonass L2 + BeiDou B3 Freq + GALILEO:E6 |
| CH6 | 1370-1390MHz | 100W | GPS L3 + GPS L4 |
| CH7 | 1160-1210MHz | 100W | GPS L5 + BeiDou B2 + GALILEO: E5 + E5A, + GALILEO :E5B |
| CH8 | 5.8GHz | 20W | WiFi 11.a |
| Total output power | 720W | ||
| Jamming range | 1000-3000 meters for Omni Antennas,3000-8000 Meters Higher Gain Directional Antennas | ||
| Jammer Module Number | 8 | ||
| Cooling System | Systematic Smart Cooling System | ||
| System Protection | VSWR, Over-voltage, Over-current | ||
| Remote Control (Option) | Full System Operation Control | ||
| Power supply | 50 to 60Hz, 100 to 240V AC | ||
| With AC adapter | (AC100-240V-DC27V) | ||
| Design | Customized Jammer | ||
| HS Code | 8543709200 | ||
| Packing | Neutral Packing | ||
| Dimension | 63 × 50 × 35 Centimeters | ||
| Weight | 45 Kilograms | ||
Cover Most Commercial Used Drones / UAVs
Most professional Drones/UAVs (Distance 1-3Km) use 2.4GHz for Remote Control System Like Dji Phantom 4, Phantom 3 Professional, Advanced Series, Inspire Series...
Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)
100% Safe VSWR over protection (Isolator) for each modular
Main Export Markets:
- Asia
- Australasia
- Central/South America
- Eastern Europe
- Mid East/Africa
- North America
- Western Europe
Any third-party trademarks or images shown here are for reference purposes only. We are not authorized to sell any items bearing such trademarks.
Primary Competitive Advantages:
Military Specifications
Packaging
Prompt Delivery
Service
Small Orders Accepted
Monitor software function: (Option)
· Remote control switches of each machine.
· Remote viewing each machine working state.
· The power output of each machine remote adjustment.
· Remote viewing offline log of each machine.
· Mail receiving each machine working state.
· The system can set permissions to log on.
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year :5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
R&D Group in USA
We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.
Manufacturer in CHINA
A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.
We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer, 3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed. We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
