Product Description
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | UAV Drone Jammer |
| Channel Number | 10 |
| Each Bands Power | 50W |
| Total Output Power | 500W |
| Jamming Range | 20-50m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Full bands Vehicle Mounted bomb Jammer with wire control,20-3000MHZ ,for military
Description:

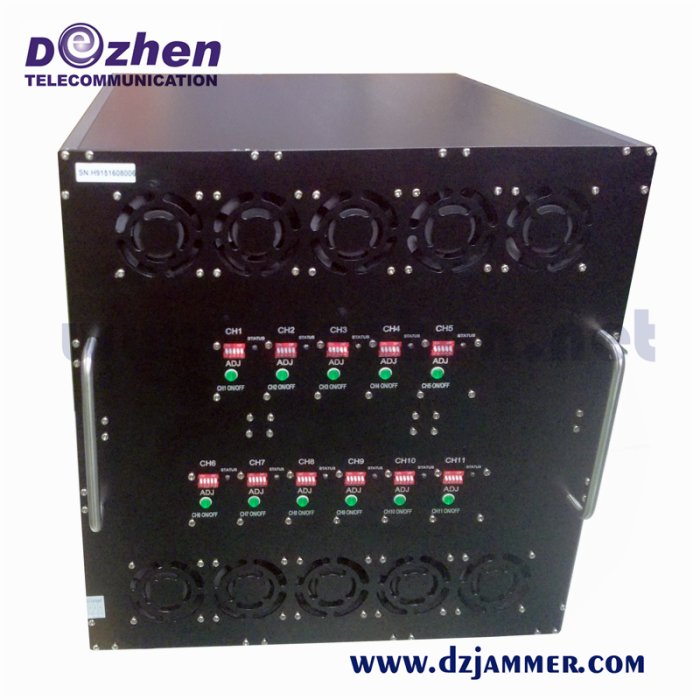

1000W Digitial VIP Protection Bomb Jammer DZ-101VIP-1000
The DZ-101VIP-1000 is a high power jammer designed for blocking remote controlled improvised explosive devices used by terrorist.
The jammer is constructed to block continuously and simultaneously up to ten frequency bands.
Its smart active cooling system enables non-stopped use even in a very hard climatic and weather condition.
The user-friendly system is integrated into a trolley type weatherproof and shockproof pelican case1620.
Frequency bands include all the cellular phone system, Wifi / Satellite system optional (Or any customerized frequency bands from 20-3000 MHz)
The system use Broadband Omni-Directional antennas for 360º protection.
Because of the variety of jamming targets and a wide range of uncertainties, we have adopted the more advanced and effective jamming signal modulation method, which will increase the jamming efficiency in each band, so that to provide security protection and ensure the safety of VVIPs.
Specifications:
|
Channel |
Frequency Range |
Output Power |
|
CH1 |
500-1000 MHz |
50 dBm |
|
CH2 |
1000-1500 MHz |
50 dBm |
|
CH3 |
1500-2000 MHz |
50 dBm |
|
CH4 |
2000-2500 MHz |
50 dBm |
|
CH5 |
2500-3000 MHz |
50 dBm |
|
CH6 |
20-500 MHz |
50 dBm |
|
CH7 |
851-894 MHz |
51.3 dBm |
|
CH8 |
925-960 MHz |
51.3 dBm |
|
CH9 |
2110-2170 MHz |
51.3 dBm |
|
CH10 |
2400-2500 MHz |
51.3 dBm |
|
Power Supply:AC220V or AC220V,or DC28V Jamming radius: 50-500M depending on the specific signal strength |
||
|
Power Consumption: 3000W Host Weight :45Kg Host Size(L×H×W)::640×400×400 mm |
||
|
Humidity: 30%-95% Working temp: -10 to +55 degree Celsius |
||
Competitive Advantage:
1. with good cooling system, can operate for long time.
2. Using digital interference technology, overall effective suppression of target spectrum.
3. independent module design. Each module can separate switch,disassemble. So it is convenient for maintenance and update.
4. Use the wired control.With the control panel,we can adjust the output power and frequency in the boot state for each module.It is convenient for operating and personnel management.
5. Perfect Alarm System, fully protected circuit in case of disconnection of antennas.
Applications:
1. VIP convoy protection
2. Military camp
3. Government building
4. Police Checkpoints
5. Bomb disposal and vehicle mounting for military complexes.
6. Filed Operation activity
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year :5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
R&D Group in USA
We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.
Manufacturer in CHINA
A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.
We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer, 3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed. We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
