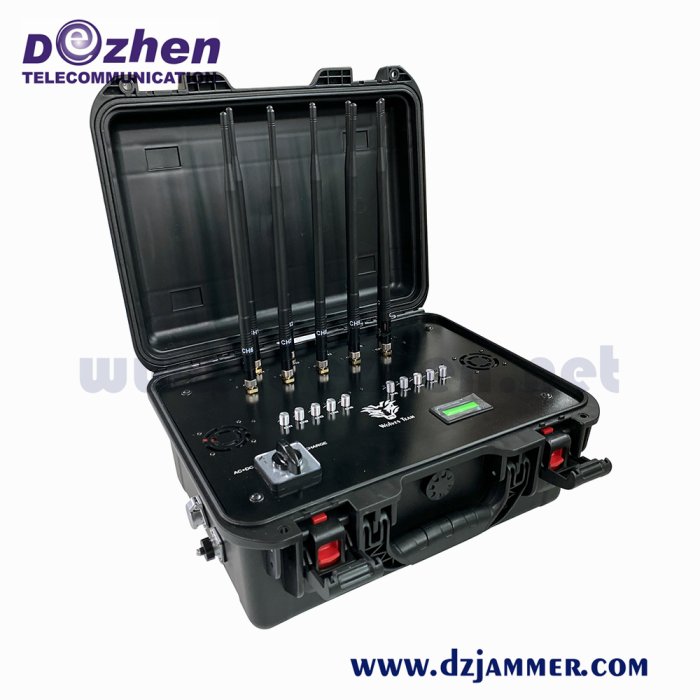

Military Vehicle Bomb Jammer , Portable Frequency Cell Phone Signal Jammer
Product description :
This High Power Full Band Vehicle Military Convoy Protection Roof Mounted Jammer System is a High
Power DDS Convoy Jamming System, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
It is designed for Protect military and country leaders VVIP team,EOD,police investigation and arrestprisons,government buildings, wireless remote bomb and some occasions for a temporary protection to respond to some emergencies.
Features:
1,Field programmability for rapid adjustment frequency and output power.
2,Jam up to six different jamming modules simultaneously, and cover up to 20 different frequency bands. Each module with LCD display to show its working frequency ,output power and etc.
3,Equipped with a wired remote control unit. The operator can ON/OFF each module through the wired remote controller.
4,Supplied by AC mains or DC power source.Backup battery system or generator system can be optional.
5,Based on our general design, we can further customize our systems to be client-specified scenarios both for military and civil applications in order to provide the best individual solution.
Technical Specifications
| Type | Portable Jammer |
| Frequency Range | 20-3600MHz |
| Total RF Power | 260-360Watt, Max: 550Watt |
| Jamming Radius | 50-800M, the jamming radius still depends on the strength signal in given area |
| Jammer Module Number | 6 |
| Channel Frequency Number | 15Bands, Max: 24Bands |
| Cooling System | Systematic Smart Cooling System |
| System Protection | VSWR, Over-voltage, Over-current, |
| Jamming Source | Digital Signal Source Synthesize Technology Adjust Frequency and Output Watt |
| Remote Control | Full System Operation Control With Battery Led display |
| Antenna Type | High Gain Omnidirectional Antennas |
| Number of Antennas | 6 |
| External Battery | 35AH/24-28VDC |
| Jammer Module | Each Jammer module with antenna can be used as a single jammer. All modules are controlled separately. |
| Jammer Size | 63×49.2×35.2cm |
| Jamming System Weight | Approx.36kg |
| Operating Temperature | -35°C ~ +80°C |
| Operating Humidity | Up to 80% |
| HS Code | 8543709200 |
| Packing | Box |
Applicable Area:
• Reform-through-labour teams, conference rooms, movie theaters, churches, libraries, school dormitories;
• Special security and confidential occasions (confidential office, negotiation room, mobile vehicles, mobile political and business dignitaries guarding the scene;
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
