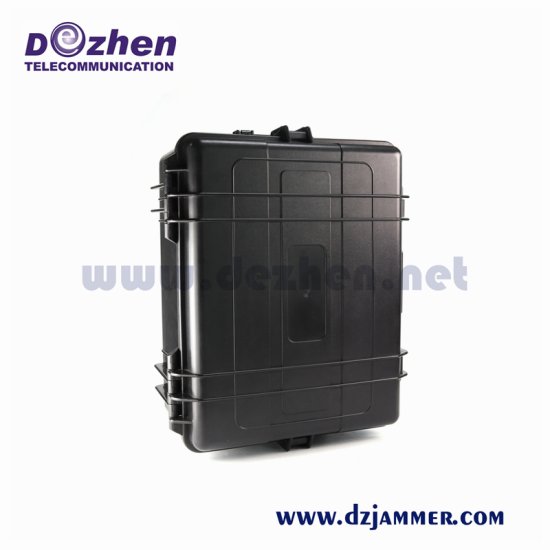

Military Portable VIP Protection Defence Vehicle Bomb Jammer
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Portable Jammer |
| Channel Number | 12 |
| Each Bands Power | 50W |
| Total Output Power | 500W |
| Jamming Range | 2-90m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Key Specifications/ Special Features:
Product Description:
This device is not only bomb jammers, but also high power portable DDS convoy jamming system,portable RF jammer,portable vehicle bomb jammer. This jammer can implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
It can cove all RF communication Frequencies between 20MHz to 6000MHz continuously and simultaneously.
Features:
1. High-power portable multi-band jammer.
2. Field programmability for rapid adjustment frequence with output Watt.
3. Modular construction for easy maintenance,repair and upgrade.
4. Jammer up to five different jamming modules simultaneously,and cover up to 10 different frequency bands.
5. Each module with LED display to show its working frequency ,output power and etc.
6. 250-300 watt total RF output power.
7. Equipped with a remote control unit. The operator can ON/OFF each module through the wired remote controller.
8. Fully portable trolley-type case.
9. Internal battery, AC mains or DC power.
10. External LED display to indicate the batterylevel.
11. Designed with external backup battery input, adapted to external battery. Facilitating to change the battery timely for field use.
Specification:
Affected Frequency Ranges: (12bands option)
We could supply customized service by your detail requirements about frequencies setting. All 6-12 Frequency modules we can mix very flexibly.
|
Output Interface |
Output Frequency |
RF Output watt |
|
CH1 |
20-80mhz |
100W |
|
CH2 |
80-200MHz |
100W |
|
CH3 |
200-500MHz |
100W |
|
CH4 |
500-1000MHz |
50W |
|
CH5 |
1000-1500MHz |
50W |
|
CH6 |
1500-2000MHz |
50W |
|
CH7 |
2000-2500MHz |
50W |
|
CH8 |
2500-3000MHz |
50W |
|
CH9 |
3000-4000MHz |
50W |
|
CH10 |
4000-4500MHz |
50W |
|
CH11 |
4500-5000MHz |
50W |
|
CH12 |
5000-6000MHz |
50W |
|
Jammed Signal Freqency: |
20 - 6000MHz Cell Phone Signal Jammer |
|
|
Type: |
Vehicle jammer |
|
|
Jammer Module Number |
12 |
|
|
Total output power |
600~1200W |
|
|
Power Consumption: |
330W |
|
|
Parameter Shielding Range: |
50-800M, the jamming radius still depends on the strength signal in given area |
|
|
HS Code: |
8543709200 |
|
|
Packing: |
Box |
|
|
Weight |
35kg |
|
|
Dimension (not including antennae): |
420×480×130 mm |
|
|
Power supply |
50 to 60Hz, 100 to 240V AC |
|
|
External double channel directional panel antennas |
all the TX frequency covered down link only |
|
|
With AC adapter |
(AC100-240V-DC27V) |
|
|
Design |
Customized Jammer |
|
|
Humidity: |
5%-95% |
|
|
Working Temp: |
-20℃ to +55℃ |
|
|
Antenna |
External- Omni-directional for 360° |
|
Application:
• Mainly used in examination rooms, prisons, gas stations, mobile phone bombs, oil depots, LPG stations,detention centers, interrogation rooms, courts,
• Reform-through-labour teams, conference rooms, movie theaters, churches, libraries, school dormitories;
• Special security and confidential occasions (confidential office, negotiation room, mobile vehicles, mobile political and business dignitaries guarding the scene;
• All kinds of military sites and other prohibited places to use mobile phones.
|
Terms and conditions: |
|
|
Delivery Time Schedule |
Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
|
Payment Terms |
40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
|
Terms of Delivery |
FOB HONGKONG/ USA. |
|
Warranty |
36 months. |
|
Software Updates |
Free software updates will be provided for a period of 36 months. |
|
Extended Warranty |
After 4th Year :5% of total for each years. |
