Product Description:
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Portable Jammer |
| Channel Number | 10 |
| Each Bands Power | 50W |
| Total Output Power | 500W |
| Jamming Range | 2-90m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Key Specifications/ Special Features:
Product Description:

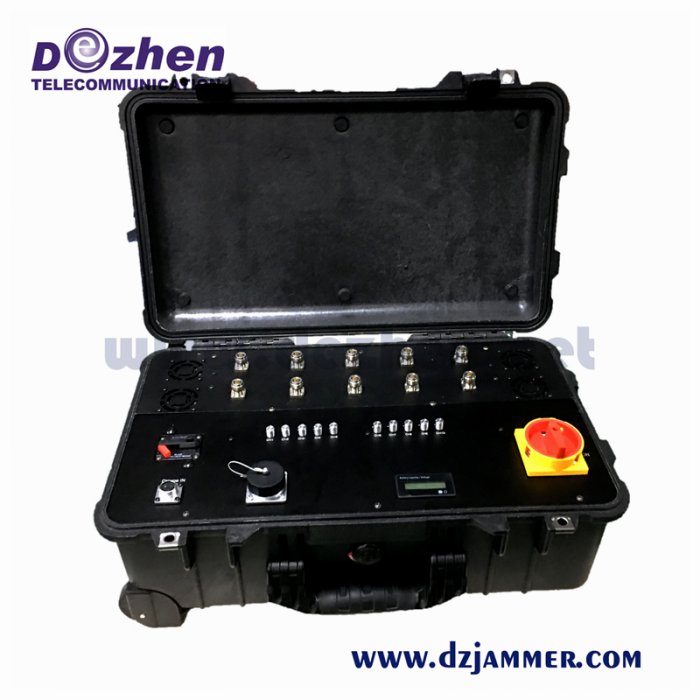

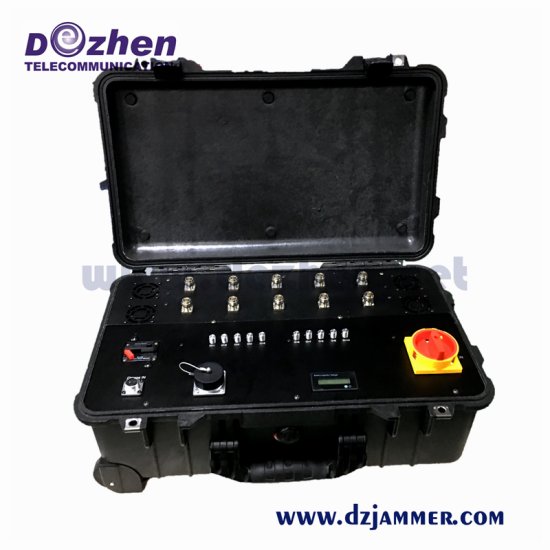

High Power Draw Bar Box 8 Channels Mobile Signal Jammer 200W up to 300 meters is the latest professional signal jammer of high power.This type of frequncies is sepcially suitable for Drone Jammer.
Built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,hostage negotiations,border control,etc...
Features:
1,Large coverage, covering CDMA,GSM,PCS,DCS,3G,4G LTE,4G Wimax,GPS,WIFI.
2,Draw-bar box designed for portability and easy moving;
3,Built-in rechargeable battery can be used for 90~120 minutes after being fully charged;
4,Military standard casing, which is anti-throw, pressure-resistant and durable;
5,AC110-220V/Built-in battery supply (DC24V);
6,Built-in efficient cooling fan and cooling fans ensures the product work stably in a long service life;
Specification:
Affected Frequency Ranges: (12bands option)
We could supply customized service by your detail requirements about frequencies setting. All 4-12 Frequency modules we can mix very flexibly.
|
Output Interface |
Output Frequency |
|
CH1 |
CDMA:850-894MHZ |
|
CH2 |
GSM:925~960MHz |
|
CH3 |
GPS L1:1570-1580MHz |
|
CH4 |
WIFI:2400-2500MHz |
|
CH5 |
3G:2110-2170MHz |
|
CH6 |
PCS/DCS:1805-1990MHz |
|
CH7 |
4G LTE:725-770MHZ or 790-826MHZ |
|
CH8 |
4G Wimax:2345-2400MHZ or 2496-2690MHZ |
|
Jammed Signal Freqency: |
CDMA,GSM,PCS,DCS,3G,4G LTE,4G Wimax,GPS,WIFI |
|
Type: |
Suitcase jammer |
|
Jammer Module Number |
8 |
|
Total output power |
200W |
|
Transmission Power: |
Integrated Equipment≥200W,each channel≥25W |
|
Parameter Shielding Range: |
Radius 100-300 meters(-75dBm,depending on the distance of base station in an open filed) |
|
HS Code: |
8543709200 |
|
Packing: |
Box |
|
Weight |
35kg |
|
Dimension (not including antennae): |
556*455*266cm (Protrusions excluded) |
|
Material: |
Pelican case |
|
Technical Parameters: |
|
|
Power supply |
50 to 60Hz, 100 to 240V AC |
|
External double channel directional panel antennas |
all the TX frequency covered down link only |
|
With AC adapter |
(AC100-240V-DC27V) |
|
Design |
Customized Jammer |
|
Humidity: |
≤80% |
|
Ambient Temperature |
-10ºC - +50ºC |
|
Power Consumption |
≤360W |
|
Battery |
24V,33AH,Built-in standby battery can used for 90~120 minutes |
|
Antenna Parameters |
Omni antennas,gain:4~5dBi |
|
Switch Control |
Manually |
Application:
• Mainly used built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,hostage negotiations,border control,etc...
• Reform-through-labour teams, conference rooms, movie theaters, churches, libraries, school dormitories;
• Special security and confidential occasions (confidential office, negotiation room, mobile vehicles, mobile political and business dignitaries guarding the scene;
• All kinds of military sites and other prohibited places to use mobile phones.
|
Terms and conditions: |
|
|
Delivery Time Schedule |
Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
|
Payment Terms |
40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
|
Terms of Delivery |
FOB HONGKONG/ USA. |
|
Warranty |
36 months. |
|
Software Updates |
Free software updates will be provided for a period of 36 months. |
|
Extended Warranty |
After 4th Year :5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
