High output Power Cell phone GSM CDMA Bluetooth GPS Jammer

Product Description

 Key Specifications/ Special Features:

Product description:

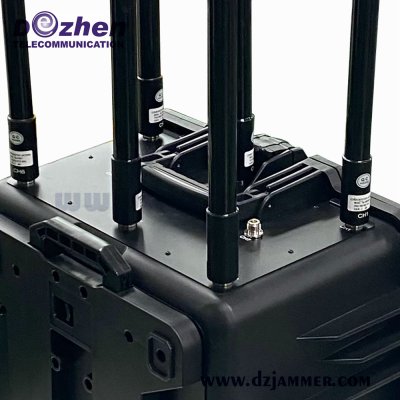

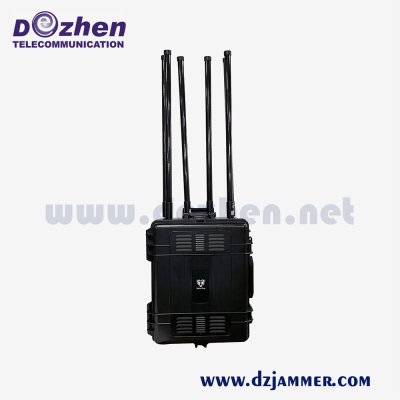

This Portable cell phone jammer provides  cell phone jamming High power. It is designed for prisons, Omni antenna or detention centers, and penal institutions, etc.

It can greatly reduce the possibility of break prison. What's more, it has metal enclosure which prevents sabotage. With the integrated incoming air filter, it makes sure the device cooling system operation normally.

This is an optimal choice for you to take this High power portable cell phone jamming system which is specially designed for GSM 2G 3G 4G LET 5G and WIFI GPS signal ! Besides, you will also be content with the easy operation method and high working efficiency as well!

Specification

Affect frequency:

CH-CDMA: 851-960MHz
CH-GSM: 925-960MHz
CH-DCS: 1805-1880MHz
CH-PCS: 192-1990MHz
CH-3G: 2110-2170MHz
CH-4G LTE: 725-770MHz(US) or 790-826MHz(EU)
CH-4G Wimax: 2300-2400MHz(US) or 2620-2690MHz(EU)
CH-5G LTE : 3500: 3500-3600 MHz
CH-WiFi2.4g: 2400-2500MHz
CH-GPS:1500-1600MHz

• Total output power: 900W
• Jamming range: up to  100-1000m, the jamming radius still depends on the strength signal in given area
• Power supply: AC110-240V,
• Housing: Waterproof & shockproof design suitable indoor or outdoor use
• Dimension: 56*46*57 cm
• Full set weight: 45.00kg

Products Application Fields:

High quality jammers widely use in Military Units, Prison, Police, Bomb Disposal and Security Services.
It can also be used in places like Prison, Gas Stations, Guard, Schools, Churches, Invigilate Meeting Room, Library, Hospitals, Theater, Class Room and other important places and situations.

Advantages and Features:

Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
Heat sink designing combing with the fans to make system in a cooling status.
Special technology to prevent interference between each frequency band.
Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
Frequency bands and output power selectable.
Each frequency band controlled by independent RF ON/OFF switches.
Power of each frequency band can be adjustable independently.
Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
Antenna type options, directional or Omni-directional antennas option.
Easy operation and installation.
Keep for upgrade module installation.
Working 24 hours/365days continuously.

Main Function
 High-power portable multi-band jammer.
 Upgraded jamming signal source (DDS technology) to provide utmost efficiency. (option)
 Field programmability for rapid adjustment to frequency and output power.
 Fully modular compact design with extremely high efficiency cooling system provides system stability even in extreme climate conditions. The modular design also facilitates easy maintenance, repairs and upgrades.
 Jam up to six different jamming modules simultaneously, covering up to 20 different frequency bands.
 Increased total RF output power up to 900 Watts.
 Remote control can control each module working frequency, output power, etc.
 Equipped with a wired remote control unit. The operator can ON/OFF each module through the wired remote control.

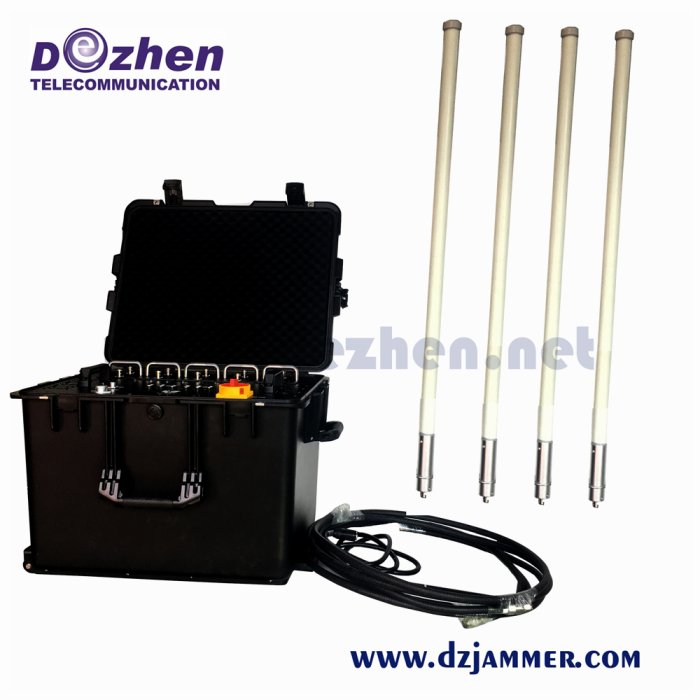

 Fully portable trolley-type case for easy transportation and rapid deployment.
 Supplied by AC mains or DC power source.
 Backup battery system and generator system are optional.
 The jamming system has an active smart cooling system in a continuous working cycle.
 Based on our general design, we can further customize our systems for client-specific scenarios both for military and civil applications in order to provide the best individualized solution.
