Product Description
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Portable Jammer |
| Channel Number | 8 |
| Each Bands Power | 30W-50W |
| Total Output Power | 240W-400W |
| Jamming Range | 2-90m |
| Application | Military Units, Prison, Police, Bomb Disposal |

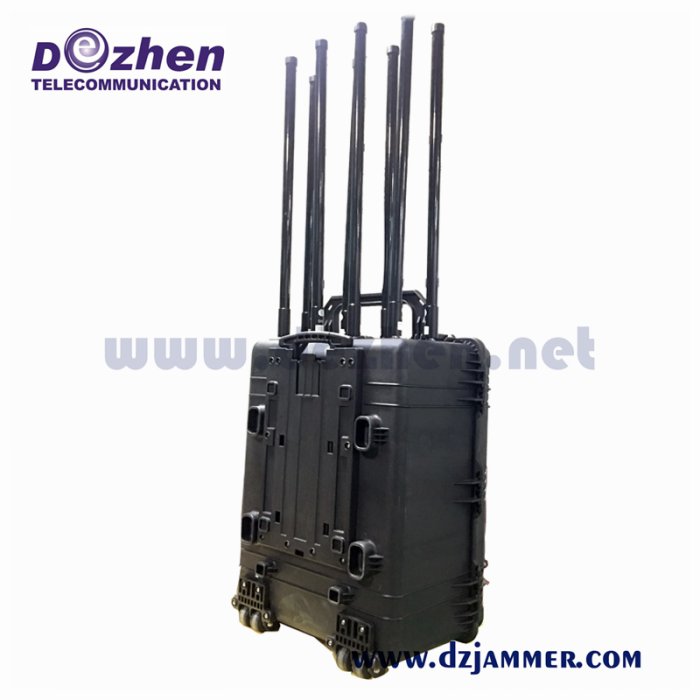

Portable Cell Phone Jammer Wireless GSM WiFi 3G 4G GPS Bluetooth RF Blocking Range 500 Meters
Product Description:
The High-power portable multi-band Wireless Signal jammer.
Fully modular compact design with extremely high efficient cooling system provides system stability even in extreme climate conditions.
The modular design also facilitates easy maintenance, repairs and upgrades.
Jam up to eight different jamming modules simultaneously, covering up to 20 different frequency bands.
Increased total RF output power up to 240-400 Watts.Equipped with a wired remote control unit.
The operator can ON/OFF each module through the wired remote control.
Fully portable trolley-type case for easy transportation and rapid deployment.Supplied by AC mains or DC power source.
The jamming system has an active smart cooling system in a continuous working cycle.
Products Application Fields:
High quality jammers widely use in Military Units, Prison, Police, Bomb Disposal and Security Services.
It can also be used in places like Prison, Gas Stations, Guard, Schools, Churches, Invigilate Meeting Room, Library, Hospitals, Theater, Class Room and other important places and situations.
Advantages and Features
Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
Heat sink designing combing with the fans to make system in a cooling status.
Special technology to prevent interference between each frequency band.
Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
Frequency bands and output power selectable.
Each frequency band controlled by independent RF ON/OFF switches.
Power of each frequency band can be adjustable independently.
Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
Antenna type options, directional or Omni-directional antennas option.
Easy operation and installation.
Keep for upgrade module installation.
Working 24 hours/365days continuously.
Specification:
Affected Frequency Ranges:
| Output Interface | Output Frequency | RF Output watt |
| CH1 | CDMA/GSM: 851-960MHz | 30W-50W |
| CH2 | DCS: 1805-1880MHz | 30W-50W |
| CH3 | PCS: 1930-1990MHz | 30W-50W |
| CH4 | 3G: 2110-2170MHz | 30W-50W |
| CH5 |
4G LTE:(USA:725-770MHz) or (Europe:790-826MHz) |
30W-50W |
| CH6 | 4G Wimax:(USA:2345-2400MHz) or (Europe:2620-2690MHz) | 30W-50W |
| CH7 | WIFI 2.4:2400-2500MHZ | 30W-50W |
| CH8 | GPS :1570-1580MHZ | 30W-50W |
| Total output power | 240W-400W | |
| Jamming range | up to 500m,still depends on the strength signal in given area | |
| Jammer Module Number | 8 | |
| External double channel directional panel antennas | all the TX frequency covered down link only | |
| Power supply | 50 to 60Hz, 100 to 240V AC | |
| With AC adapter | (AC100-240V-DC27V) | |
| Dimension | 420×480×230 mm | |
Accessories
- High Power Cell Phone Signal Jammer
- Antennas
- Power cable
Terms and conditions:
| Delivery Time Schedule | Delivery time is 1 month, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
