Product Description:
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Portable Jammer |
| Channel Number | 10 |
| Each Bands Power | 60W |
| Total Output Power | 600W |
| Jamming Range | 2-90m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Portable High power 600w mobile phone Jammer Block GSM 3G 4G 5G
Product Description:

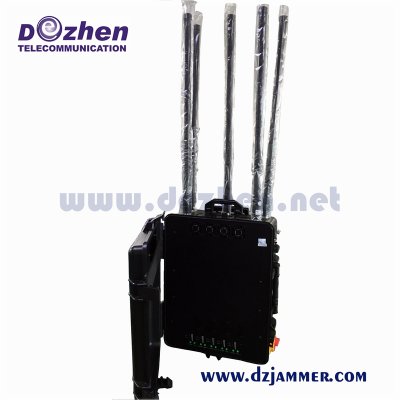

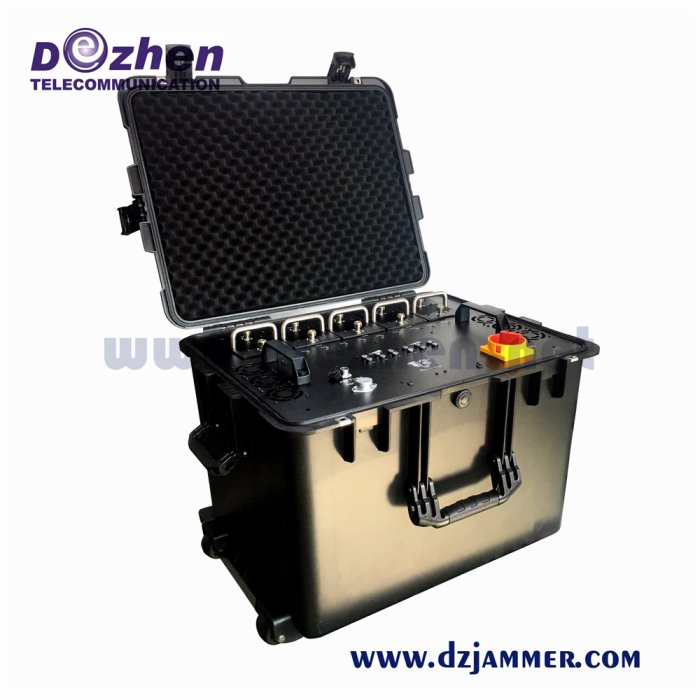

DZ-808L-8 is the HIGH POWER OUTDOOR Portable Remote-Bomb & Cell Phone WiFi GPS jamming system, implementing the most highly effective and extremely reliable signal jamming technology.
By cutting off the data transmission of wireless signals of all kinds, it can protect military, police and VIP convoys from the threat of Remote Control Improvised Explosive Devices (RCIEDs) and road-side bombs.
Specification:
Affected Frequency Ranges:
| CH1 | CDMA/GSM: 851-960MHz | |
| CH2 | DCS: 1805-1880MHz | |
| CH3 | PCS: 1930-1990MHz | |
| CH4 | 3G: 2110-2170MHz | |
| CH5 | 4G LTE:(USA:725-770MHz) or (Europe:790-826MHz) | |
| CH6 | 4G Wimax:(USA:2345-2400MHz) or (Europe:2620-2690MHz) | |
| CH7 | WiFi 2.4G: 2400-2500MHz | |
| CH8 | WiFi 5.8G: 5200-5800MHz | |
| CH9 | VHF 135-175MHz (option frequency) | |
| CH10 | UHF 400-470MHz (option frequency) | |
| Total output power | 600W | |
| Jamming range | up to 500m,still depends on the strength signal in given area | |
| Jammer Module Number | 8-10 | |
| External double channel directional panel antennas | all the TX frequency covered down link only | |
| Power supply | 50 to 60Hz, 100 to 240V AC | |
| With AC adapter | (AC100-240V-DC27V) | |
| Dimension | 420×480×230 mm | |
Accessories
High Power Cell Phone Signal Jammer
Antennas
Power cable
Advantages and Features
Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
Heat sink designing combing with the fans to make system in a cooling status.
Terms and conditions:
Special technology to prevent interference between each frequency band.
Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
Frequency bands and output power selectable.
Each frequency band controlled by independent RF ON/OFF switches.
Power of each frequency band can be adjustable independently.
Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
Antenna type options, directional or Omni-directional antennas option.
Easy operation and installation.
Keep for upgrade module installation.
Working 24 hours/365days continuously.
|
Delivery Time Schedule |
Delivery time is 1 month, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
|
Payment Terms |
40% advance, 40% after one month,20% before shipping. |
|
Terms of Delivery |
FOB HONGKONG/ USA. |
|
Warranty |
36 months. |
|
Software Updates |
Free software updates will be provided for a period of 36 months. |
|
Extended Warranty |
After 4th Year : 5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
