Product Description
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Portable Jammer |
| Channel Number | 5 |
| Each Bands Power | 20W |
| Total Output Power | 100W |
| Jamming Range | 2-90m |
| Application | Military Units, Prison, Police, Bomb Disposal |

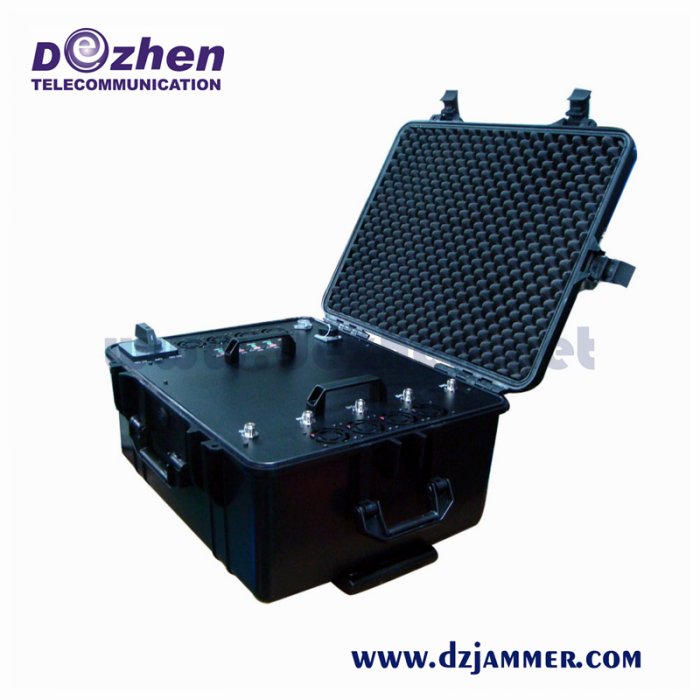

500w manpack portable Signal Jammer For Prisons / Military,5 bands jammer
Description:
1. High RF power, shielding all 2G, 3G, 4G signals, frequencies can be customized by customers.
2. it can with multiple power supplies :if with built-in battery, it can provide power for the jammer working about 2 hours. Also it can be powered by 220V AC or an on-board power supply.
3. Efficient cooling heat dissipation system ,including high performance aluminum alloy heat sink and several wind fans, so the jammer can non-stopped work for long time.
4. this jammer can be customized as 4 0r 5 or 6 bands ,and each band could be 50 watts or 100watts as customer’s request.
This is a portable type mobile phone signal shielding device .
It is easy to carry, flexible to use, also with optional built-in high capacity battery , so it especially suitable for application in: large venue, infantry troop and military security force, the SWAT team, counter-terrorism unit, the drug control unit, explosion-proof, EOD team, checkpoint, the hostage negotiation, and border control, etc.
Specifications:
|
Output interface |
Shield band of frequency |
RF output power |
Output power/channel |
|
CH1 |
851-894 MHz |
50 dBm |
17 dBm/30KHz(min) |
|
CH2 |
1805-1880 MHz |
50 dBm |
14 dBm/30KHz(min) |
|
CH3 |
2110-2170 MHz |
50 dBm |
15.5 dBm/30KHz(min) |
|
CH4 |
2100-2170 MHZ |
50 dBm |
15.5 dBm/30KHz(min) |
|
CH5 |
925-960 MHz |
50 dBm |
17.5 dBm/30KHz(min) |
|
Power supply: AC110-220V Shielding area: 30-500M @ according to signal density of mobile network |
|||
|
Power consumption: 1020W Weight:25Kg Size(length × wind × high):390×390×240mm |
|||
|
Humidity: 30%-95% Running Temperature: -20 to +55 Celsius Degree |
|||
Competitive Advantage:
- Easy of mobility, can be carried like a trolley.
- High Power RF amplifiers with VSWR and temperature self-protection technology.
- with good cooling system, can operate for long time.
- Using digital interference technology, overall effective suppression of target spectrum
- independent module design. Each module can separate switch,disassemble. So it is convenient for maintenance and update.
- Perfect Alarm System, fully protected circuit in case of disconnection of antennas.
Applications:
large venue, infantry troop and military security force, the SWAT team, counter-terrorism unit, the drug control unit, explosion-proof, EOD team, checkpoint, the hostage negotiation, and border control, etc.
