    Brief Caes Portable Mobile Signal Jammer 30-200m Range 350W 7 Bands For SWAT Team / Police

    Price:

    • Model: DZ808L-7A
    • Shipping Weight: 22.5kg
    • 1000 Units in Stock


    Quantity Discounts

    Store Quantity Discount Policy

    QuantityDiscount
    5 - 1910%
    20 - 4915%
    50 - 9920%
    100 - 19925%
    200 + 30%
    * The way the Order Total modules work is that they show up at checkout time
    (complete orders today,deliverd around 28/11/2024)
    Details

    Product Description

    Frequency Range 20-6000MHz/700-2600MHz
    Frequency: CDMA/GSM/3G Cellphone
    Jammer Type Portable Jammer
    Channel Number 7
    Each Bands Power 50W
    Total Output Power 350W
    Jamming Range 2-90m
    Application Military Units, Prison, Police, Bomb Disposal

    brief caes signal jammer , portable Signal Jammer  For SWAT team,police

    Description:

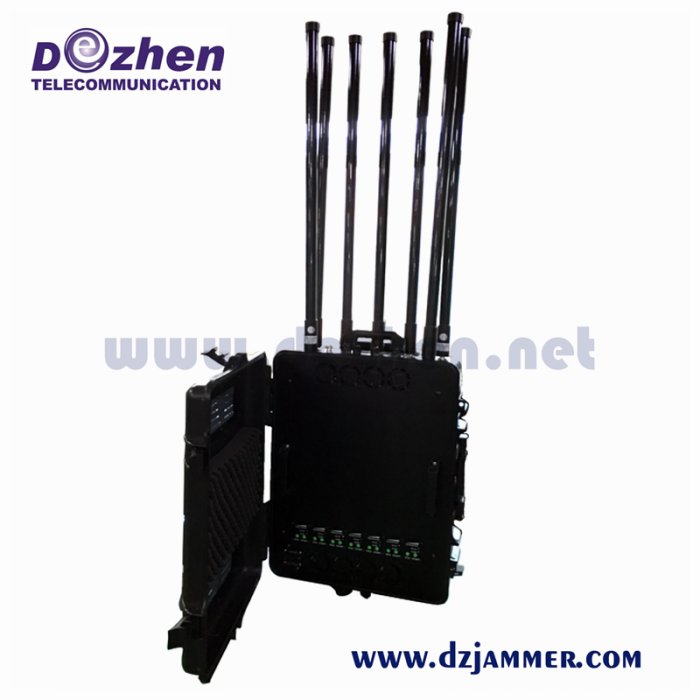

    This is a portable type mobile phone signal shielding device .

    It is  easy to carry, flexible to use, also with optional built-in high capacity battery , so it especially suitable for application in: large venue, infantry troop and military security force, the SWAT team, counter-terrorism unit, the drug control unit, explosion-proof, EOD team, checkpoint, the hostage negotiation, and border control, etc.

    Functional characteristics:

           1. High RF power, shielding all 2G, 3G, 4G signals, frequencies can be customized by customers.

           2. it can with multiple power supplies :if with built-in battery, it can provide power for the jammer working about 2 hours. Also it can be powered by 220V AC or an on-board power supply.

           3. Efficient cooling heat dissipation system ,including high performance aluminum alloy heat sink and several wind fans, so the jammer can non-stopped work for long time.

           4. this jammer can be customized as 6 0r  7 or 8bands ,and each band could be 50 watts or 100watts as customer’s  request.

    Specifications:

    Output interface

    Shield band of frequency

    RF output power

    Output power/channel

    CH1

    851-894 MHz

    46 dBm

    17 dBm/30KHz(min)

    CH2

    1805-1880 MHz

    46 dBm

    14 dBm/30KHz(min)

    CH3

    2110-2170 MHz

    46 dBm

    15.5 dBm/30KHz(min)

    CH4

    2100-2170 MHZ

    46 dBm

    15.5 dBm/30KHz(min)

    CH5 2300-2400 MHZ 46 dBm 15.5 dBm/30KHz(min)
    CH6 2400-2500 MHZ 46 dBm 15.5 dBm/30KHz(min)

    CH7

    925-960 MHz

    46 dBm

    17.5 dBm/30KHz(min)

    Power supply: AC110-220V,or 24V DC, Shielding area: 30-500M @ according to signal density of mobile network

    Power consumption: 720W  Weight:22Kg  Size(length × wind × high):390×390×240mm

    Humidity: 30%-95%                   Running Temperature: -20 to +55 Celsius Degree

    Competitive Advantage:

    1.  Easy of mobility, can be carried like a trolley.
    2.  High Power RF amplifiers with VSWR and temperature self-protection technology.
    3.  with good cooling system, can operate for long time.
    4.  Using digital interference technology, overall effective suppression of target spectrum
    5. independent module design. Each module can separate switch,disassemble. So it is convenient for maintenance and update.
    6.  Perfect Alarm System, fully protected circuit in case of disconnection of antennas.
    7.  With good quantity ,high gain antenna ,keep the long  jamming range.

    Applications:

    large venue, infantry troop and military security force, the SWAT team, counter-terrorism unit, the drug control unit, explosion-proof, EOD team, checkpoint, the hostage negotiation, and border control, etc.
