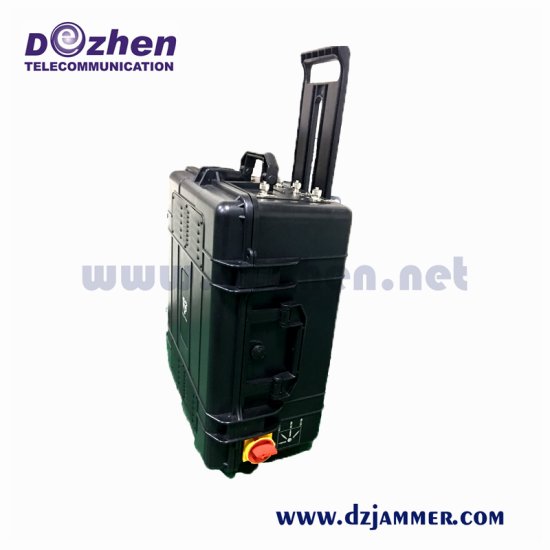

600W RF Cell Phone Reception Blocker CE/FCC Approval , Cell Phone Military Portable Signal Jammer
Frequency Range | 20-6000MHz/700-2600MHz |
Frequency: | CDMA/GSM/3G Cellphone |
Jammer Type | Portable Jammer |
Channel Number | 10 |
Each Bands Power | 60W |
Total Output Power | 600W |
Jamming Range | 2-90m |
Application | Military Units, Prison, Police, Bomb Disposal |
Product description :
This device is not only bomb jammers, but also high power portable DDS convoy jamming system, portable RF jammer,portable vehicle bomb jammer.
This jammer can implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
It can cove all RF communication Frequencies between 20MHz to 3600MHz continuously and simultaneously.
Features:
1. High-power portable multi-band jammer.
2. Field programmability for rapid adjustment frequence with output Watt.
3. Modular construction for easy maintenance,repair and upgrade.
4. Jammer up to five different jamming modules simultaneously,and cover up to 10 different frequency bands.
5. Each module with LED display to show its working frequency ,output power and etc.
6. 250-300 watt total RF output power.
7. Equipped with a remote control unit. The operator can ON/OFF each module through the wired remote controller.
8. Fully portable trolley-type case.
9. Internal battery, AC mains or DC power.
10. External LED display to indicate the batterylevel.
11. Designed with external backup battery input, adapted to external battery. Facilitating to change the battery timely for field use.
Technical Specifications:
11 bands for option: The frequencies can be from 20-6000MHZ
Output Interface | Frequency Range | Out Power | RF Output dBm |
CH1 | 20-108MHz | Wireless ,FM Radio | 100W |
CH2 | 135-174MHz | Wilkie-talkie(VHF) | 100W |
CH3 | 300-400MHz | Remote Control, Drone | 100W |
CH4 | 400-470MHz | Wilkie-talkie(UHF),Car alarm | 100W |
CH5 | 851-894MHz | CDMA | 100W |
CH6 | 925-960MHz | GSM | 100W |
CH7 | 1570-1580MHz | GPSL1 | 50W |
CH8 | 1805-1920MHz | DCS,PCS | 100W |
CH9 | 2110-2170MHz | WCDMA | 50W |
CH10 | 2400-2485MHz | WIFI,Drone,Bluetooth | 50W |
CH11 | 5725-5850MHz | WIFI,Drone | 15W |
Jamming Radius: | 50-800M, the jamming radius still depends on the strength signal in given area | ||
HS Code: | 8543709200 | ||
Total output power: | 600~1200W | ||
Power Consumption: | 330W | ||
Type: | Vehicle Jammer | ||
Dimension: | 640×540×550 mm | ||
Packing: | Neutral Packing | ||
Signal Jammer for: | 20 - 6000MHz Cell Phone Signal Jammer | ||
Power supply: | AC110 240V | ||
Weight: | 75 Kg | ||
Humidity: | 5%-95% | ||
Working Temp: | -20℃ to +55℃ |
RF Characteristics:
RF Characteristics | Description |
Output Power | 915 Watts |
Internal Modulation | FM Hopping Frequency |
Signal Source | VCO Synthesized |
Power Supply | AC110-240V,24V or 48V DC |
Modules Per Unit | 11 |
Contol | ON/OFF with Switch |
Monitoring | Adjusted output power by DIP switch |
Antenna | External- Omni-directional for 360° |
Power Amplifier Protectors | Full VSWR Protector |
Operating Hours | Unlimited |
