Basic Info.
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Portable Jammer |
| Channel Number | 14 |
| Each Bands Power | 21W |
| Total Output Power | 300W |
| Jamming Range | 2-90m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product Description
Military / Police / Government / Convoy Portable RCIED Jammer 14 bands
Applications :
Anti-terror units, Bomb squads, VIP protection, Convoys protection, Military forces, SWAT teams, Police forces, Anti-drug units, Riot-control units, Embassies protection, Roadblock protection, Checkpoint protection
It is designed for Protect military and country leaders VIP team,EOD,police investigation and arrestprisons,government buildings, wireless remote bomb and some occasions for a temporary protection to respond to some emergencies.
Affected Frequency Ranges:(14 bands )
|
CH1 20-200mhz |
|
CH2 200-500 |
|
CH3 500-1000 |
|
CH4 1000-1500 |
|
CH5 1500-2000 |
|
CH6 2000-2500 |
|
CH7 2500-3000 |
|
CH8 3000-3500 |
|
CH9 3000-3600 |
|
CH10 720 - 826 4G LTE |
|
CH11 GSM 900 935-960 MHZ |
| CH12 GSM850 870- 880 MHZ |
| CH13 4G LTE 2345-2400 MHZ (US) or 2570-2690 MHZ (EU) |
| CH14 3G 2100-2170 MHZ |
| (option) WIFI 2.4G 2400-2500 MHZ |
|
(option) WIFI 5.8G 5700-5800 MHZ |
Total RF output power: 300W (Adjustable output power for each band)
Jamming Range: 100-300 meters@-75dBm
Power supply: AC adapter (AC220V-DC27V or 24V/ 40-50 Amp)
Adjustable Output Power each Band, Stand-alone modular design and individual power control.
Temperature over protection.
Working status indicator for each band modular.
Dimension: 69cm(L)×69cm(W)×39cm(D)
Weight: 45 Kg (approximately) just main unit not included antenna & all accessories
Operating temperature: -20ºC ~ +60ºC
Humidity: 5% ~ 90%
(Option frequency)
| 5.0-5.5GHz: | 5.5-6.0GHz: |
| WiFi 11.a, 20-50MHz: | 66-88MHz: |
| Civil Remote Control Toys: 200-300MHz : | 300-400MHz: |
| VHF 130-180MHz: | UHF 420-480MHz: |
| GPS L1 L2 L3 L4 L5: |
Advantages and Features
- Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
- Jammer is available in various models as per the frequency and output power. However these jammers can be customized as per the user requirements.•
- Heat sink designing combing with the fans to make system in a cooling status.
- Special technology to prevent interference between each frequency band.
- Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
- Frequency bands and output power selectable.
- Each frequency band controlled by independent RF ON/OFF switches.
- Power of each frequency band can be adjustable independently.
- Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
- Antenna type options, directional or Omni-directional antennas option.
- Easy operation and installation.
- Keep for upgrade module installation.
- Working 24 hours/365days continuously.

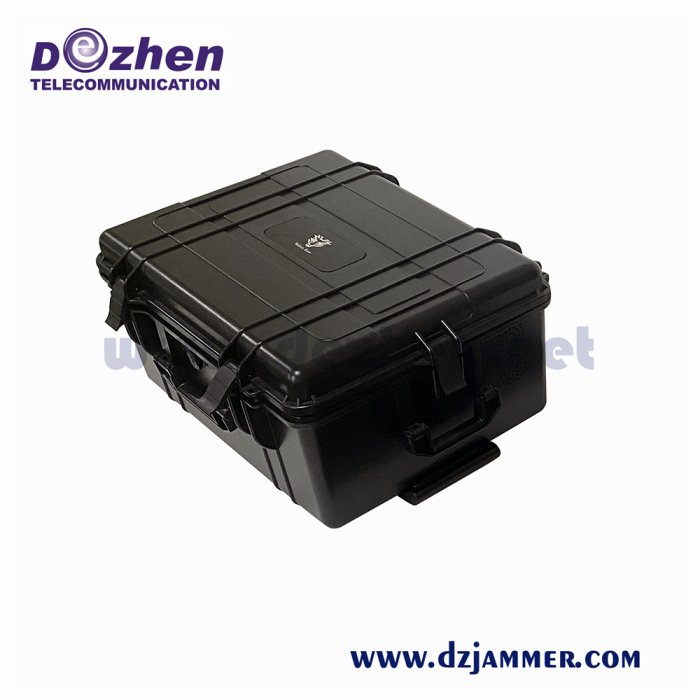

Portable case RCIED Jammer is a wide-band portable jamming system, designed for the protection of VIP's and groups of people from radio controlled improvised explosion by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks.
Briefcase Jammer transmits RF interference and creates a "Radio Frequency Protected Zone" around the object that prevents remote controlled bomb activation by various RF means in its vicinity with a sufficient jamming safety radius, in order to save lives and prevent serious injuries. Case Jammers are also deployed to guard forces in the field, Dignitaries and VIP's, checkpoint and border crossings, roadblocks, Embassies, Police and Government offices etc.
Case Jammer is available in various models as per the frequency and output power. However these jammers can be customized as per the user requirements
