Product Description
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | Handheld Signal Jammer |
| Channel Number | 6 |
| Each Bands Power | 5W |
| Total Output Power | 30W |
| Jamming Range | 20~100m |
| Application | Military Units, Prison, Police, Bomb Disposal |

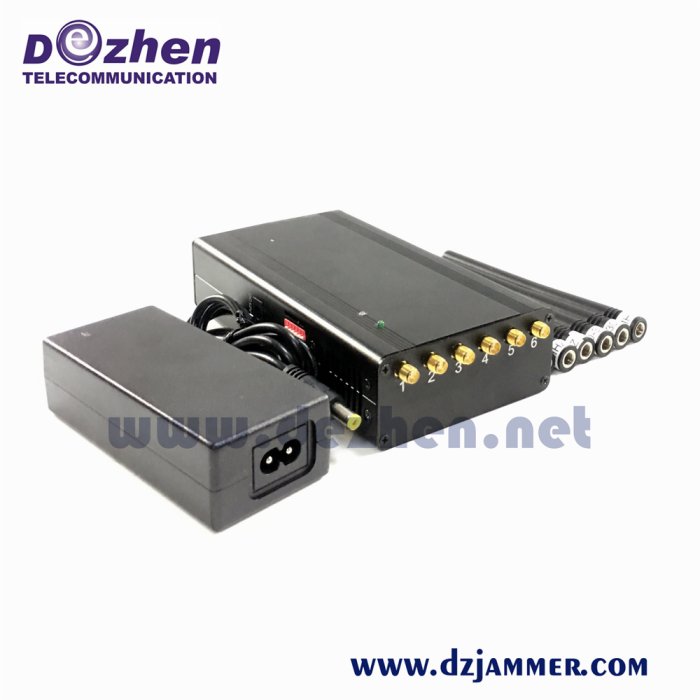

6 Antenna Portable WiFi 3G 4G Phone Signal Jammer
Product Description
Multi-band cell phone signal jammer can work to isolate the specified unwanted frequency bands when there is the demand for signal free zone.
The 6 antenna portable Wifi 3G 4G phone signal jammer is one of the multifunctional signal blocking units available with well-built compact construction and delicately combined functionality.
The powerful jammer has a wide affected frequency ranges to include CDMA/GSM, DCS/PCS, 3G, 4G LTE, 4G Wimax and Wifi.
It also has a jamming range up to 20m, depending on the signal strength in the given area.
Within the range, just turn on the jammer, all wireless connection to 2G, 3G, 4G or Wifi network will be disabled at the same time.
Also, the jammer is a selectable unit. In other word, user can choose to allow operation of one or a few of frequency bands.
Adjustment of ON or OFF any of the single bands will not cause any disruption to the operation of others.
The jammer is flexibly applicable for its portability and ease of charging.
It can be applied at meeting rooms, conference rooms, trains, bus and more location as you want, powered by universally using AC adapter or by 4000mA/h rechargeable battery.
The well-designed cooling system will further ensure you a lasting service time.
Specifications
Affected Frequency Ranges:
-CDMA/GSM: 850 to 960MHz
-DCS/PCS:1805 to 1990MHz
-3G:2,110 to 2,170MHz
-4G LTE:725-770MHz(US) or 790-826MHz(EU)
-4G Wimax:2345-2400MHz(US) or 2620-2690MHz(EU)
-WiFi:2400-2500MHz
Total output power:5W
Jamming range: up to 20m, the jamming radius still depends on the strength signal in given area
External Omni-directional antennas all the TX frequency covered down link only
Power supply:50 to 60Hz, 100 to 240V AC
With AC adapter (AC100-240V-DC12V),4000mA/H battery
Dimension:126x76x35mm and not include antennas
Inner box dimension:220x202x65mm
Full set weight:0.65kg
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
