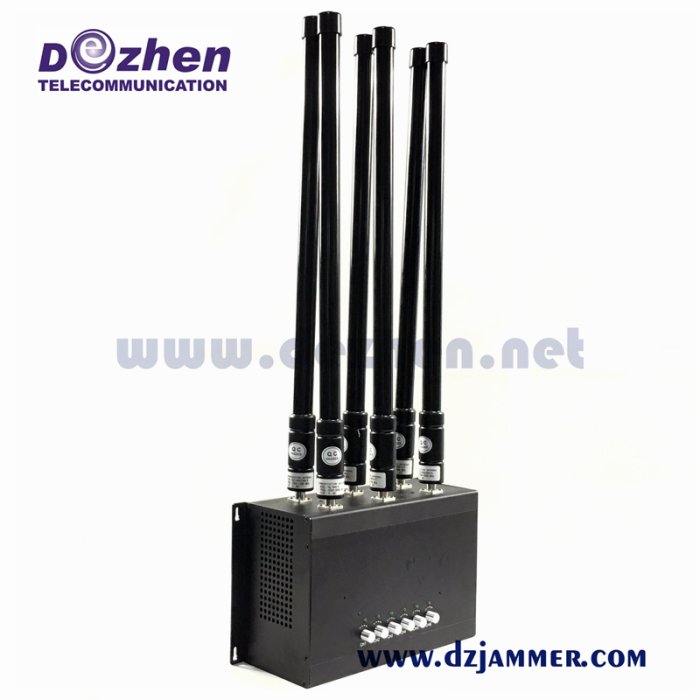

    Omni Directional Patch 6 Antennas 157W Drone Signal Jamming Device

    Price:

    • Model: DZ101H10-6
    • Shipping Weight: 3.58kg
    • 1000 Units in Stock


    Quantity Discounts

    Store Quantity Discount Policy

    QuantityDiscount
    5 - 1910%
    20 - 4915%
    50 - 9920%
    100 - 19925%
    200 + 30%
    * The way the Order Total modules work is that they show up at checkout time
    (complete orders today,deliverd around 30/12/2024)
    Details

    Omni Directional Patch 6 Antennas 157W Drone Signal Jamming Device

    Frequency Range 20-6000MHz/700-2600MHz
    Frequency: CDMA/GSM/3G Cellphone
    Jammer Type Desktop Indoor Jammer
    Channel Number 6
    Each Bands Power 4W
    Total Output Power 25W
    Jamming Range 2-45m
    Application Military Units, Prison, Police, Bomb Disposal

    Product Description

    Drone Jammer UAV 6 / 8 157 W Bands Jamming range 400~1000 Meters Omni or Directional Patch Antennas
    The adjustable high power WiFi, GPS, mobile phone jammer creates powerful and advanced multifunction blocking signal. This jammer prohibits all signals from bothering your life, or tracking your current location. For those purposes, this jammer is your optimal choice.

    This device can block signals which comes from kinds of phone systems, including CDMA, GSM, 3G systems, also it can jam all applications of Wi-Fi (2400-2500 MHz) and GPS signals 1570-1580 (GPSL1). It has removable jammer antennas. Adjust or turn off any single band without influencing the other bands operation.

    The usage of cooling fan makes it becoming effective equipment. With DC12V car adaptor allows this jammer charging in cars and works continuously. These features allow you to use the powerful jamming device. It is really an ideal choice for conference rooms, churches, temples, theatres, concert halls, classrooms and banks, museums, etc.



    CPB-3016N-UAV 6 Band

    CPB-3018N-UAV 8 Band

    Output Interface

    Output Frequency

    RF Output watt

    Output Frequency

    RF Output watt

    CH1

    433MHz

    20W Remote Control

    433MHz

    20W Remote Control

    CH2

    868-915MHz

    25W Remote Control

    868-915MHz

    25W Remote Control

    CH3

    2.4-2.5GHz

    20W WiFi 11.g, b, Bluetooth

    2.4-2.5GHz

    20W WiFi 11.g, b, Bluetooth

    CH4

    2.4-2.5GHz

    20W WiFi 11.g, b, Bluetooth

    2.4-2.5GHz

    20W WiFi 11.g, b, Bluetooth
    (or GPS L3 + L4:15W)

    CH5

    1570-1620MHz

    40W GPS L1 + GLONASS L1

    1570-1620MHz

    40W GPS L1 + GLONASS L1

    CH6

    5.8GHz

    2W

    5.8GHz

    2W

    CH7

    N/A

    N/A

    1176MHz

    15W GPS L5

    CH8

    N/A

    N/A

    GPS L2 + GLONASS L2

    15W

    Total output power

    127W

    157W

    Jamming range

    Radius 400~1000 Meters

    Jammer Module Number

    6,8

    Cooling System

    Systematic Smart Cooling System

    System Protection

    VSWR, Over-voltage, Over-current

    Remote Control (Option)

    Full System Operation Control

    Power supply

    50 to 60Hz, 100 to 240V AC

    With AC adapter

    (AC100-240V-DC27V)

    Design

    Customized Jammer

    HS Code

    8543709200

    Packing

    Neutral Packing

    Dimension

    255*255*45mm

    Weight

    1.1kg

     Terms and conditions:

    Delivery Time Schedule Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
    Payment Terms 40% advance, 40% after one month,20% before shipping.
    Terms of Delivery FOB HONGKONG/ USA.
    Warranty 36 months.
    Software Updates Free software updates will be provided for a period of 36 months.
    Extended Warranty After 4th Year : 5% of total for each years.

    Accessories

    • High Power Cell Phone Signal Jammer
    • Antennas
    • Power cable

    Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.

    Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .

    R&D Group in USA

    We have strong and excellent R&D group in USA, who dedicated to the research and development of our new products.We are consumer-oriented and do our best to offer satisfying products to customers.

    Manufacturer in CHINA

    A full line of products - We have a full line of cellular jamming products from low-cost portable units to high-spec industrial units.

    We are the specialists in cell phone Jammers and GPS Jammer, WIFI Jammer,  3G Jammer, 4G Jammer, Lojack Jammer, UHF/VHF Jammer, RF Jammer, Audio Jammer,Wireless Video Jammer and signal Repeater/Amplifier/Booster etc.We offer unparalleled professional service and advice for our personal and commercial products. 10+ years of industry experience makes us the specialists you can trust. We pioneered all kind of jammers online sales, and offer the best cellular jamming prices worldwide - guaranteed. We are a developer, manufacturer and reseller of cell phone jamming devices and signal Repeater devices. products include GSM Jammer, CDMA jammer, DCS/PCS Jammer, GPS Jammer, WIFI Jammer, 3G Jammer, Audio Jammer, Wireless Video Jammer, Dual Band Repeater,Tri Band Repeater etc.
    Our Jammer type have Portable Jammers, Desktop Jammer, Prison Jamme, Vehicular jammer, Bomb Jammer, IED Jammer and RF Jammer.
