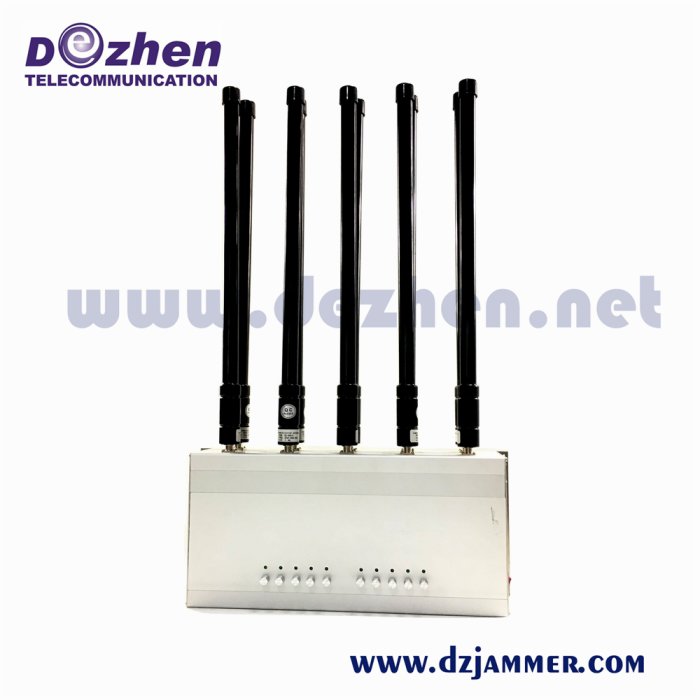

Indoor 10 Bands Adjustable All GSM CDMA 3G 4G Cell Phone UHF VHF WiFi GPS Lojack Signal Jammer
Frequency Range | 20-6000MHz/700-2600MHz |
Frequency: | CDMA/GSM/3G Cellphone |
Jammer Type | Desktop Indoor Jammer |
Channel Number | 10 |
Each Bands Power | 3W |
Total Output Power | 24W |
Jamming Range | 2-45m |
Application | Military Units, Prison, Police, Bomb Disposal |
Product Description:
This high power output of 50W so that this high power signal blocker owns up to 50 -60 meters jamming distance depending on the signal strength in the given area.
Besides as this high power multi-purpose signal blocker owns 10 antennas so that it can cut off the signals of CDMA/GSM, DCS/PCS, 3G, WiFi, 4G LTE,4G Wimax, and WIFI UHF
VHF,GPS Jammer at the same time, which is really powerful. what's more, the adjustable button has also been used on this high power signal blocker so that you can decide the
jamming frequency bands and jamming distance according to your real situation.
Advantages and Features
1. All the RF frequencies only blocking the downlink band, never to the uplink.
2. Good cooling system. Work 24 hours/365days continuously.
3. Easy and Fast Installation.
Applications:
Meeting Room, Oil and Gas Storage Facilities and fields, Hospitals, Theatres, Recording Studios, Banks, Contract Tendering Rooms, Churches, Conference Rooms, Classrooms, Testing Facilities, Security Services, Military Units, Secret Services, News Conference Rooms, Libraries, Museums, Prisons, Courts, Border Patrol and Drug Enforcement, Customs, House, Small prison areas.
Specifications
Output Interface |
RF Frequency Band(MHz) |
Application |
RF Output Power (Watt) |
CH1 |
850-960 MHz |
GSM/CDMA |
5W |
CH2 |
1805-1900 MHz |
DCS/PCS |
5W |
CH3 |
1570-1580 MHz |
GPSL1 |
5W |
CH4 |
2100-2170 MHz |
3G/UMTS |
5W |
CH5 |
725-770MHz(US) or 790-826MHz(EU) |
4G LET |
5W |
CH6 |
2300-2400MHz(US) or 2620-2690MHz(EU) |
4G Wimax |
5W |
CH7 |
2400-2500MHz |
WIFI |
5W |
CH8 |
167-175MHz |
Lojack |
5W |
CH9 |
420MHz-480 MHz |
UHF |
5W |
CH10 |
140MHz-180 MHz |
VHF |
5W |
Total Output Power:50 Watt
Output power Adjustable could adjust the jamming range
Cover Radius: 10-60m(under Signal level ≤-85dBm)@according to the signal density mobile network
Jamming type: Sweep Jamming
Antenna Type: omni-directional
Power Supply: AC adapter (50 to 60Hz/100 to 240V AC -DC27V)
Working Time:Not-stop Working
Electric Filed (SAR): Compatible with ICNIRP Standards (Human safe)
Operating Temp:-20 to +50ºC
Storage Temp:-40 to +60ºC
Humidity: 5%-80%
Product Dimension(LXWXH): 280 x 250x 120mm not include antennas
Weight: appr.8kg ( not include antennas 7kg and battery about 5kg ) ,
Advantages and Features
• Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
• Heat sink designing combing with the fans to make system in a cooling status.
• Special technology to prevent interference between each frequency band.
Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
• Frequency bands and output power selectable.
• Each frequency band controlled by independent RF ON/OFF switches.
• Power of each frequency band can be adjustable independently.
• Circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
• Antenna type options, directional or Omni-directional antennas option.
• Easy operation and installation.
• Keep for upgrade module installation.
• Working 24 hours/365days continuously.
