Product description:
Frequency Range | 20-6000MHz/700-2600MHz |
Frequency: | CDMA/GSM/3G Cellphone |
Jammer Type | BackPack Jammer |
Channel Number | 5 |
Each Bands Power | 40W |
Total Output Power | 200W |
Jamming Range | 2-100m |
Application | Military Units, Prison, Police, Bomb Disposal |

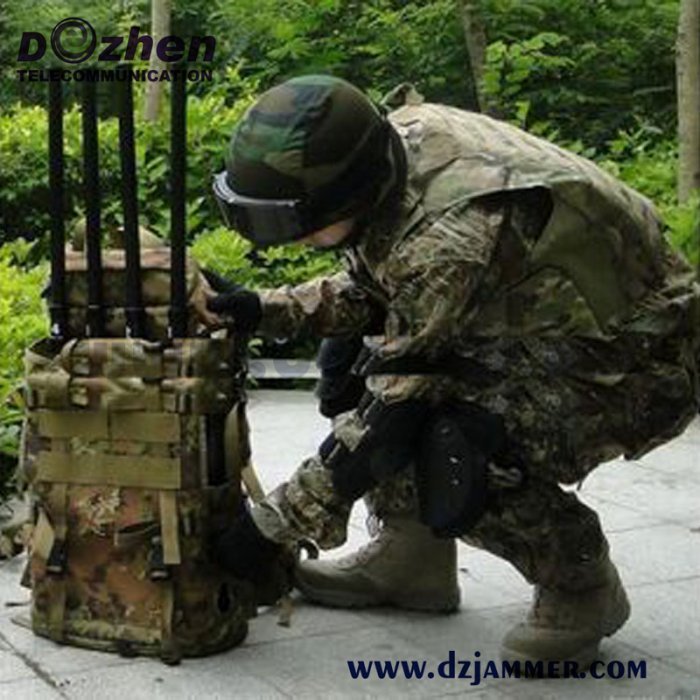

90W High Power GPS WIFI5.8G Drone Signal Jammer Durable Waterproof Backpack UAV Jammer
Product Description:
High Power Backpack 8 Channels Mobile Signal Jammer 90W up to 200 meters is the latest professional signal jammer of high power.
This type of frequncies is sepcially suitable for Cell Phone Jammer. It is suitable to protect important leadership or VIP security, individual combat, SWAT teams, EOD teams, anti-terrorist units, anti-drug units, bomb squad, security checkpoints, administrative law enforcement, hostage negotiations, border control and military security forces and other application areas.
Features:
1. Max 220 watt total RF output power.
2. High portable, back pack type.
3. Internal battery, AC mains or DC power.
4. External LCD display to indicate the battery level.
5. Systematic Smart Cooling System.
6. The general design of the system meets military requirements.
Specifications:
Output Interface | Output Frequency |
CH1 | -WIFI2.4G: 2400-2500MHz |
CH2 | -WIFI5.8G: 5725-5825MHz |
CH3 | -GPS: 1550 -1580MHz |
CH4 | -GPS L2-L5:1100-1300MHz |
CH5 | -GSM : 850-920MHz |
Jammed Signal Freqency: | CDMA,GSM,2.4G WIFI,5.8G WIFI,GPS L1,GPS L2-L5,VHF,UHF.... |
Type: | Backpack jammer |
Output Channel: | 5 output channels |
Output power: | 90 watt |
Parameter Shielding Range: | Radius 5-2000 meters (-75dBm,depending on the distance of base station in an open filed) |
Jammer Module Number | 5 |
HS Code: | 8543709200 |
Packing: | Box |
Dimension (not including antennae): | 30 *45 *15cm |
Antenna: | Omnil Antenna |
Technical Parameters: | |
Net Weight | 12kg |
Total Weight | 15kg Aviation Case included |
Ambient Temperature | -10ºC - +50ºC |
Relative Humidity | ≤80% |
Power Consumption | ≤220W |
Power Input | AC100~240V,DC24V |
Battery | 24V,30AH,Built-in standby battery can used for 90~180 minutes |
Antenna Parameters | Omni antennas,gain:4~5dBi |
Switch Control | Manually |
Equipment Chassis | Metallic Paint |
Cooling system | Active "smart" with integrated incoming air filter |
Antennae type: | External high gain Omni directional Antenna |
We could supply customized service by your detail requirements about frequencies setting. 4-8
Frequency modules we can mix very flexibly.Frequency Ranges Selectable:
CDMA 800: | 851-894MHz |
GSM 900: | 925-960MHz |
DCS 1800: | 1800-1880MHz |
PHS 1900: | 1920-1990MHz |
3G 2100(UMTS): | 2110-2170MHz |
WIFI 2.4G Bluetooth: | 2400-2500MHz |
WiFi3.6G: | 3500-3600MHz |
Wi-Fi5.2G: | 5100-5500MHz |
WIFI 5.8G | 5725-5850MHz |
4G/LTE 700M: | 725-770MHz(US) |
4G/LTE 800M: | 790-826MHz(EU) |
4G Wimax: | 2300-2400MHz(US) |
4G Wimax: | 2620-2690MHz(EU) |
GPS/L1: | 1500-1600MHz |
GPS/L2: | 1200-1300MHz |
GPS/L3: | 1300-1400MHz |
GPS/L4: | 1100-1200MHz |
VHF: | 135-174MHz |
UHF: | 400-470MHz |
Lojack: | 167-175MHz |
RF315: | 315MHz |
RF433: | 433MHz |
RF868: | 868MHz |
Application:
Built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,hostage negotiations,border control,etc...
Terms and conditions:
Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
Payment Terms | 40% advance, 40% after one month,20% before shipping. |
Terms of Delivery | FOB HONGKONG/ USA. |
Warranty | 36 months. |
Software Updates | Free software updates will be provided for a period of 36 months. |
Extended Warranty | After 4th Year : 5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
