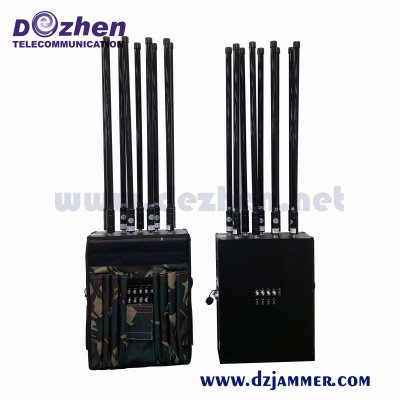

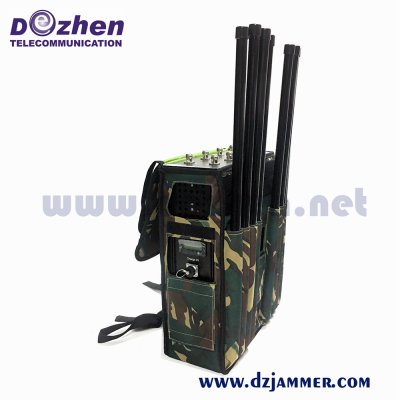

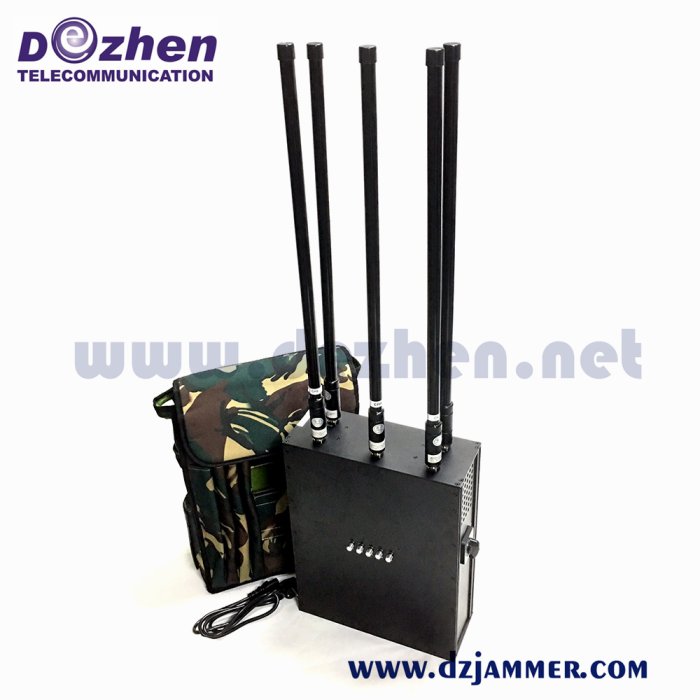

High Power VIP Protection Security Cell Phone Signal Backpack Jammer
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | BackPack Jammer |
| Channel Number | 5 |
| Each Bands Power | 40W |
| Total Output Power | 200W |
| Jamming Range | 2-100m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product Description:
This Manpack jammer is a High Power Frequency ScanJamming System, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system. Backpack jammer is highly portable and light weight. Easy for backpack.
It plays an important role to use the heavily loaded vehicle and trolley-type devices in some extreme hard situation. The operator can carry it forward through the hills and muddy road, as well as Climbing steep mounts and stairs avoid casualties and improve the combat efficiency.
Features:
Aluminum-alloy casing with high protection has high resistance to dust, water and corroding.
Heat sink designing combing with the fans to make system in a cooling status
Special technology to prevent interference between each frequency band.
Only interfere downlink frequency of mobile system, without disturb normally working of Base Stations.
Frequency bands and output power selectable.
Each frequency band controlled by independent RF ON/OFF switches.
Power of each frequency band can be adjustable independently.
Specifications:
| Output Interface | Output Frequency |
| CH1 | -WIFI2.4G: 2400-2500MHz |
| CH2 | -WIFI5.8G: 5725-5825MHz |
| CH3 | -GPS: 1550 -1580MHz |
| CH4 | -GPS L2-L5:1100-1300MHz |
| CH5 | -GSM : 850-920MHz |
| Jammed Signal Freqency: | CDMA,GSM,2.4G WIFI,5.8G WIFI,GPS L1,GPS L2-L5,VHF,UHF.... |
| Type: | Backpack jammer |
| Output Channel: | 5 output channels |
| Output power: | 90 watt |
| Parameter Shielding Range: | Radius 5-2000 meters (-75dBm,depending on the distance of base station in an open filed) |
| Jammer Module Number | 5 |
| HS Code: | 8543709200 |
| Packing: | Box |
| Dimension (not including antennae): | 30 *45 *15cm |
| Antenna: | Omnil Antenna |
| Technical Parameters: | |
| Net Weight | 12kg |
| Total Weight | 15kg Aviation Case included |
| Ambient Temperature | -10ºC - +50ºC |
| Relative Humidity | ≤80% |
| Power Consumption | ≤220W |
| Power Input | AC100~240V,DC24V |
| Battery | 24V,30AH,Built-in standby battery can used for 90~180 minutes |
| Antenna Parameters | Omni antennas,gain:4~5dBi |
| Switch Control | Manually |
| Equipment Chassis | Metallic Paint |
| Cooling system | Active "smart" with integrated incoming air filter |
| Antennae type: | External high gain Omni directional Antenna |
We could supply customized service by your detail requirements about frequencies setting.
4-8 Frequency modules we can mix very flexibly.Frequency Ranges Selectable:
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Application
Mainly used in examination rooms, prisons, gas stations, mobile phone bombs, oil depots, LPG stations, detention centers, interrogation rooms, courts, Reform-through-labour teams, conference rooms, movie theaters, churches, libraries, school dormitories;
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year : 5% of total for each years. |
Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.
Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
