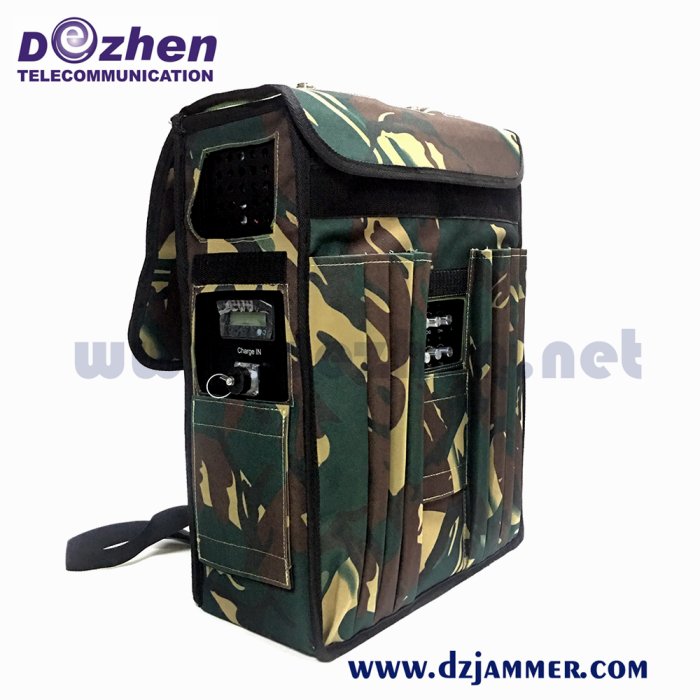

Product Description
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | BackPack Jammer |
| Channel Number | 5 |
| Each Bands Power | 20W |
| Total Output Power | 90W |
| Jamming Range | 2-90m |
| Application | Military Units, Prison, Police, Bomb Disposal |
Product Description
1,High Power Freqeuncy Scan Convoy Jamming System, implementing the most effective and reliable RF jammer technology and equipped with a fully-integrated broadband jamming system. This is highly portable and light weight. Easy for backpack.
2,It plays an important role to use the heavily loaded vehicle and backpack type devices in some extreme hard situation.The operator can carry it forward through the hills and muddy road, as well as Climbing steep mounts and stairs avoid casualties and improve the combat efficiency.
3,This is full manpack multi band Jamming system is designed with a ruggedized case, light weight, highly mobility and reliance. This device is configured with 5 different jamming modules, the jamming frequency can be more than 8 Bands.
4,It is especially easy to install and operate: simply attach the selected antennas and activate the desired frequency bands. The general design of the system meets military requirements as well as international quality standards and requirements. Our industrial in-house quality management system guarantees highest quality standards in terms of performance, reliable and long-life cycles.
5,Based on our general design, we can further customize our systems to client-specified scenarios both for military and civil applications in order to provide the best individual solution.
Features:
1. High-power Manpack multi-band RF signal jammer.
2. Modular construction for easy maintenance, repair and upgrade.
3. Jam up to four different jamming modules.
4. Max 80 watt total RF output power.
5. High portable, back pack type.
6. Internal battery, AC mains or DC power.
7. External LCD display to indicate the battery level.
8. Systematic Smart Cooling System.
9. The general design of the system meets military requirements.
Specifications:
| Output Interface | Output Frequency |
| CH1 | -WIFI2.4G: 2400-2500MHz |
| CH2 | -WIFI5.8G: 5725-5825MHz |
| CH3 | -GPS: 1550 -1580MHz |
| CH4 | -GPS L2-L5:1100-1300MHz |
| CH5 | -GSM : 850-920MHz |
| Jammed Signal Freqency: | CDMA,GSM,2.4G WIFI,5.8G WIFI,GPS L1,GPS L2-L5,VHF,UHF.... |
| Type: | Backpack jammer |
| Output Channel: | 5 output channels |
| Output power: | 90watt |
| Parameter Shielding Range: | Radius 5-2000meters (-75dBm,depending on the distance of base station in an open filed) |
| Jammer Module Number | 5 |
| HS Code: | 8543709200 |
| Packing: | Box |
| Dimension (not including antennae): | 30 *45 *15cm |
| Antenna: | Omnil Antenna |
| Technical Parameters: | |
| Net Weight | 12kg |
| Total Weight | 15 kg Aviation Case included |
| Ambient Temperature | -10ºC - +50ºC |
| Relative Humidity | ≤80% |
| Power Consumption | ≤360W |
| Power Input | AC100~240V,DC24V |
| Battery | 24V,30AH,Built-in standby battery can used for 90~180 minutes |
| Antenna Parameters | Omni antennas,gain:4~5dBi |
| Switch Control | Manually |
| Equipment Chassis | Metallic Paint |
| Cooling system | Active "smart" with integrated incoming air filter |
| Antennae type: | External high gain Omni directional Antenna |
We could supply customized service by your detail requirements about frequencies setting. 4-8 Frequency modules we can mix very flexibly.Frequency Ranges Selectable:
| CDMA 800: | 851-894MHz |
| GSM 900: | 925-960MHz |
| DCS 1800: | 1800-1880MHz |
| PHS 1900: | 1920-1990MHz |
| 3G 2100(UMTS): | 2110-2170MHz |
| WIFI 2.4G Bluetooth: | 2400-2500MHz |
| WiFi3.6G: | 3500-3600MHz |
| Wi-Fi5.2G: | 5100-5500MHz |
| WIFI 5.8G | 5725-5850MHz |
| 4G/LTE 700M: | 725-770MHz(US) |
| 4G/LTE 800M: | 790-826MHz(EU) |
| 4G Wimax: | 2300-2400MHz(US) |
| 4G Wimax: | 2620-2690MHz(EU) |
| GPS/L1: | 1500-1600MHz |
| GPS/L2: | 1200-1300MHz |
| GPS/L3: | 1300-1400MHz |
| GPS/L4: | 1100-1200MHz |
| VHF: | 135-174MHz |
| UHF: | 400-470MHz |
| Lojack: | 167-175MHz |
| RF315: | 315MHz |
| RF433: | 433MHz |
| RF868: | 868MHz |
Application:
Built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,hostage negotiations,border control,etc...
Terms and conditions:
|
Delivery Time Schedule |
Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
|
Payment Terms |
40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
|
Terms of Delivery |
FOB HONGKONG/ USA. |
|
Warranty |
36 months. |
|
Software Updates |
Free software updates will be provided for a period of 36 months. |
|
Extended Warranty |
After 4th Year :5% of total for each years. |
