Product description:
| Frequency Range | 20-6000MHz/700-2600MHz |
| Frequency: | CDMA/GSM/3G Cellphone |
| Jammer Type | BackPack Jammer |
| Channel Number | 6 |
| Each Bands Power | 35W |
| Total Output Power | 220W |
| Jamming Range | 2-100m |
| Application | Military Units, Prison, Police, Bomb Disposal |

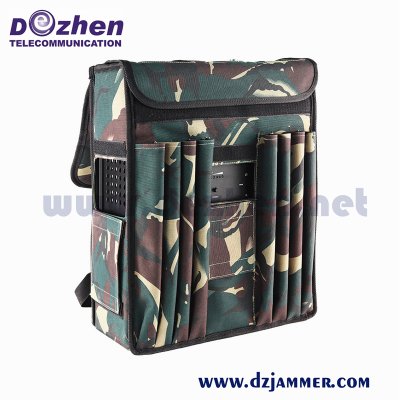

Cell Phone Signal Backpack Jammer Manually Switch Control For Police 50-150 Meters
Product Description
1,This jammer is especially easy to install and operate: simply attach the selected antennas and activate the desired frequency bands. The general design of the system meets military requirements as well as international quality standards and requirements. Our industrial in-house quality management system guarantees highest quality standards in terms of performance, reliable and long-life cycles.
2,High Power Freqeuncy Scan Convoy Jamming System, implementing the most effective and reliable RF jammer technology and equipped with a fully-integrated broadband jamming system.This is highly portable and light weight. Easy for backpack.
Features:
1. Internal battery, AC mains or DC power.
2. External LCD display to indicate the battery level.
3. Systematic Smart Cooling System.
4. The general design of the system meets military requirements.
Specifications:
| Output Interface | Output Frequency |
| CH1 | -CDMA: 851-960MHz /-GSM: 925-960MHz |
| CH2 | -DCS: 1805-1880MHz |
| CH3 | -PCS: 192-1990MHz |
| CH4 | -3G: 2110-2170MHz |
| CH5 | -4G Wimax: 2300-2400MHz(US) or 2620-2690MHz(EU) |
| CH6 | -4G LTE: 725-770MHz(US) or 790-826MHz(EU) |
| Jammed Signal Freqency: | CDMA,GSM,2.4G WIFI,5.8G WIFI,GPS L1,GPS L2-L5,VHF,UHF.... |
| Type: | Backpack jammer |
| Output Channel: | 6 output channels |
| Power Consumption: | Max: 220W |
| Output power: | 80watt |
| Parameter Shielding Range: | Radius 50-150 meters (-75dBm,depending on the distance of base station in an open filed) |
| Jammer Module Number | 6 |
| HS Code: | 8543709200 |
| Packing: | Box |
| Dimension (not including antennae): | 30 *45 *15cm |
| Technical Parameters: | |
| Net Weight | 20kg |
| Total Weight | 25kg Aviation Case included |
| Ambient Temperature | -10ºC - +50ºC |
| Relative Humidity | ≤80% |
| Power Consumption | ≤360W |
| Power Input | AC100~240V,DC24V |
| Battery | 24V,30AH,Built-in standby battery can used for 90~180 minutes |
| Antenna Parameters | Omni antennas,gain:4~5dBi |
| Switch Control | Manually |
| Equipment Chassis | Metallic Paint |
| Cooling system | Active "smart" with integrated incoming air filter |
| Antennae type: | External high gain Omni directional Antenna |
We could supply customized service by your detail requirements about frequencies setting. 4-8
Frequency modules we can mix very flexibly.Frequency Ranges Selectable:
|
CDMA 800: |
851-894MHz |
|
GSM 900: |
925-960MHz |
|
DCS 1800: |
1800-1880MHz |
|
PHS 1900: |
1920-1990MHz |
|
3G 2100(UMTS): |
2110-2170MHz |
|
WIFI 2.4G Bluetooth: |
2400-2500MHz |
|
WiFi3.6G: |
3500-3600MHz |
|
Wi-Fi5.2G: |
5100-5500MHz |
|
WIFI 5.8G |
5725-5850MHz |
|
4G/LTE 700M: |
725-770MHz(US) |
|
4G/LTE 800M: |
790-826MHz(EU) |
|
4G Wimax: |
2300-2400MHz(US) |
|
4G Wimax: |
2620-2690MHz(EU) |
|
GPS/L1: |
1500-1600MHz |
|
GPS/L2: |
1200-1300MHz |
|
GPS/L3: |
1300-1400MHz |
|
GPS/L4: |
1100-1200MHz |
|
VHF: |
135-174MHz |
|
UHF: |
400-470MHz |
|
Lojack: |
167-175MHz |
|
RF315: |
315MHz |
|
RF433: |
433MHz |
|
RF868: |
868MHz |
Application:
High quality jammers widely use in Military Units, Prison, Police, Bomb Disposal and Security Services.
It can also be used in places like Prison, Gas Stations, Guard, Schools, Churches, Invigilate Meeting Room, Library, Hospitals, Theater,
Class Room and other important places and situations.
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 40% advance, 40% after one month,20% before shipping./100% advance,paypal,WU, etc. |
| Terms of Delivery | FOB HONGKONG/ USA. |
| Warranty | 36 months. |
| Software Updates | Free software updates will be provided for a period of 36 months. |
| Extended Warranty | After 4th Year :5% of total for each years. |
