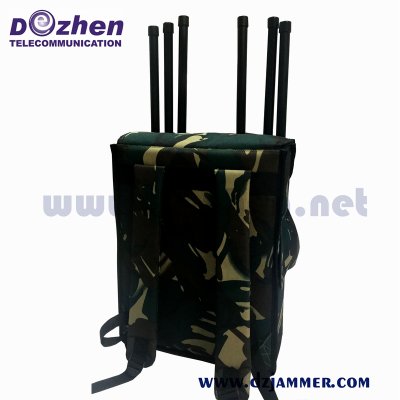

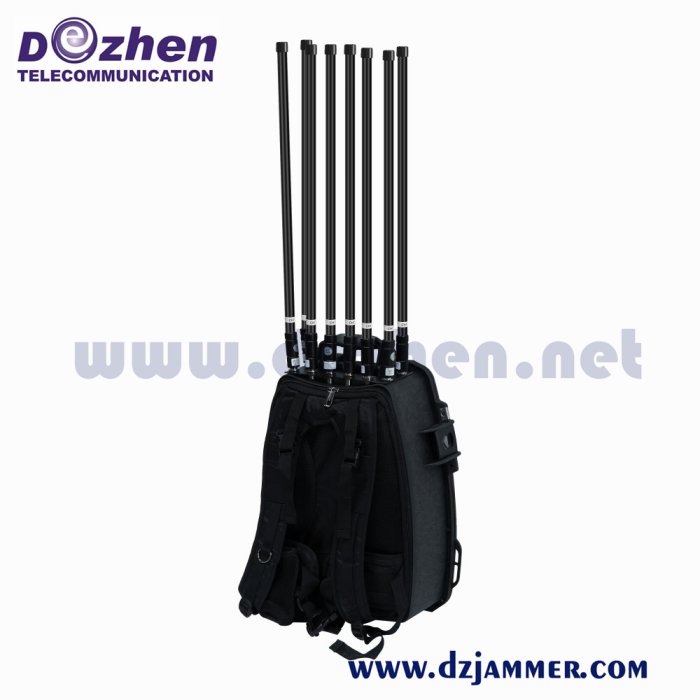

Battery Built In 5 Bands Max 130W VHF UHF Mobile Phone Backpack|DZ808B-5B|BackPack Jammer

Details

Product Description:

Frequency Range	20-6000MHz/700-2600MHz
Frequency:	CDMA/GSM/3G Cellphone
Jammer Type	BackPack Jammer
Channel Number	5
Each Bands Power	25W
Total Output Power	120W
Jamming Range	2-100m
Application	Military Units, Prison, Police, Bomb Disposal

5 Bands, Man Pack VHF UHF Mobile Phone jammer WiFi/GPS Jammer 1-2 Hours Built-in Battery

This signal jamming device that you are viewing here is the 5 Bands Adjustable All Frequency 3G 4G Wimax Phone Blocker WiFi Jammer & GPS VHF UHF Jammer which is a powerful signal jamming device and can help people a lot.

Firstly, since designed with high power output of 16W so that this high power signal blocker owns up to 150 meters jamming distance depending on the signal strength in the given area. Besides as this high power multi-purpose signal blocker owns 8 antennas so that it can cut off the signals of CDMA/GSM, DCS/PCS, 3G, WiFi, 4G Wimax, GPSL1, VHF and UHF at the same time, which is really powerful. what’s more, the adjustable button has also been used on this high power signal blocker so that you can decide the jamming frequency bands and jamming distance according to your real situation.

Also the design of the good cooling system for this high power adjustable multi-purpose jammer also makes it easy to achieve the 24/7 continuously working goal. For more details of this high power adjustable multi-purpose jammer just come here to gain the useful information.

Product specification

PCB-4035E

Europe 900MHz

PCB-4035A

America 850MHz

PCB-4035 Eur

GPS L1

PCB-4035VU

VHF UHF

920-960MHz: 25W

GSM900

850-895MHz 25W

920-960MHz: 25W

GSM900

920-960MHz: 25W

GSM900

1800-1880MHz 20 W PCS GSM 1800

1920-1990MHz

20 W

1800-1880MHz 20 W PCS GSM 1800

2100-2170MHz 30 W

3G UMTS

2100-2170MHz

30 W 3G UMTS

2100-2170MHz 30 W

3G UMTS

2100-2170MHz 30 W

3G UMTS

2620-2690MHz:20W

4G LTE High (2400-2690MHz:20W)

700-800MHz:15W

(AT&T & Verizon)

GPS L1 1575MH: 40W

(1520-1670MHz: 30W)

130-180MHz: 20W

VHF Walkie Talkie

790-870MHz:20W

4G LTE Low

2500-2700MHz:20W

4G WiMax Sprint+WiFi (2400-2700MHz:20W)

GPS L2 1227MH: 15W

420-480MHz: 20W

UHF Walkie Talkie

Total : 115 W

Total : 110 W

Total : 130 W

Total : 115 W

Product details

Jamming range	50-150 meters@－75dBm
Jammer Module Number	5
Cooling System	Systematic Smart Cooling System
System Protection	VSWR, Over-voltage, Over-current
Remote Control (Option)	Full System Operation Control
Power supply	50 to 60Hz, 100 to 240V AC
With AC adapter	(AC100-240V-DC27V)
Design	Customized Jammer
HS Code	8543709200
Packing	Neutral Packing
Dimension	390 x 340 x 130 mm (H × W × D)
Weight	15 Kg (approximately) just main unit not included antenna & all accessories

Antennas

Antennas Spec	450-470Mhz :Omni 360	4dBi, 110cm long, 0.8Kg weight
	851-960Mhz :Omni 360	5dBi, 50cm long, 0.8Kg weight
	1805-1990Mhz :Omni 360	6dBi, 50cm long, 0.8Kg weight
	130-180Mhz :Omni 360	3dBi, 110 cm long, 0.8Kg weight
	2100-2170MHz: Omni 360	6dBi, 50cm long, 0.8Kg weight
	2400-2500Mhz :Omni 360	8dBi, 50cm long, 0.8Kg weight
Military Antenna	130-180MHz: Omni 360	2dBi 55cm Long 0.4kg weight

Main Export Markets:

Asia
Australasia
Central/South America
Eastern Europe
Mid East/Africa
North America
Western Europe

Any third-party trademarks or images shown here are for reference purposes only. We are not authorized to sell any items bearing such trademarks.

Terms and conditions:

Delivery Time Schedule	Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
Payment Terms	40% advance, 40% after one month,20% before shipping.
Terms of Delivery	FOB HONGKONG/ USA.
Warranty	36 months.
Software Updates	Free software updates will be provided for a period of 36 months.
Extended Warranty	After 4th Year : 5% of total for each years.

Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.

Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
