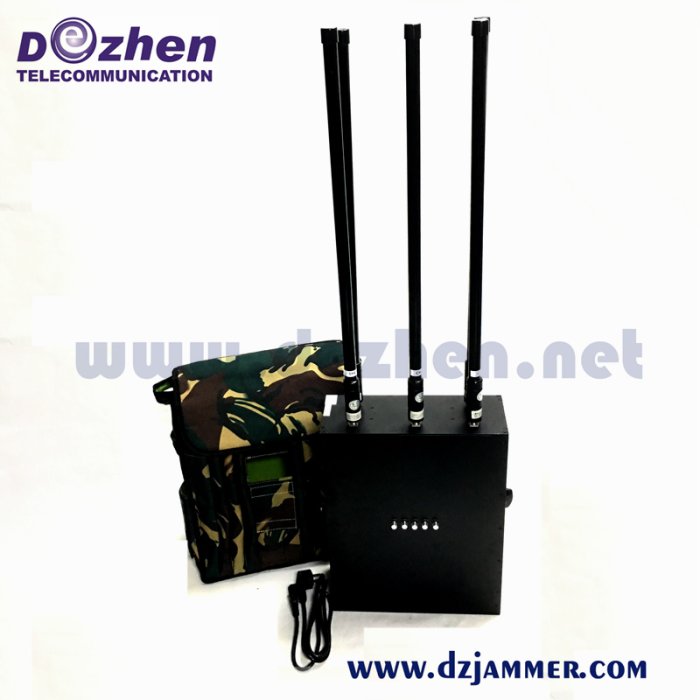

    90W Military Waterproof High Power 5 Bands GPS WiFi5.8g Drone Signal Backpack Jammer

    Price:

    • Model: DZ808B-5
    • Shipping Weight: 26.8kg
    • 1000 Units in Stock


    Quantity Discounts

    Store Quantity Discount Policy

    QuantityDiscount
    5 - 1910%
    20 - 4915%
    50 - 9920%
    100 - 19925%
    200 + 30%
    * The way the Order Total modules work is that they show up at checkout time
    (complete orders today,deliverd around 30/12/2024)
    Details

    Product Description

    Frequency Range 20-6000MHz/700-2600MHz
    Frequency: CDMA/GSM/3G Cellphone
    Jammer Type BackPack Jammer
    Channel Number 5
    Each Bands Power 20W
    Total Output Power 90W
    Jamming Range 2-90m
    Application Military Units, Prison, Police, Bomb Disposal

    Product Description
    1,High Power Freqeuncy Scan Convoy Jamming System, implementing the most effective and reliable RF jammer technology and equipped with a fully-integrated broadband jamming system. This is highly portable and light weight. Easy for backpack.
    2,It plays an important role to use the heavily loaded vehicle and backpack type devices in some extreme hard situation.The operator can carry it forward through the hills and muddy road, as well as Climbing steep mounts and stairs avoid casualties and improve the combat efficiency.
    3,This is  full manpack multi band Jamming system is designed with a ruggedized case, light weight, highly mobility and reliance. This device is configured with 5 different jamming modules, the jamming frequency can be more than 8 Bands.
    4,It is especially easy to install and operate: simply attach the selected antennas and activate the desired frequency bands. The general design of the system meets military requirements as well as international quality standards and requirements. Our industrial in-house quality management system guarantees highest quality standards in terms of performance, reliable and long-life cycles.
    5,Based on our general design, we can further customize our systems to client-specified scenarios both for military and civil applications in order to provide the best individual solution.

    Features:
    1. High-power Manpack multi-band RF signal jammer.
    2. Modular construction for easy maintenance, repair and upgrade.
    3. Jam up to four different jamming modules.
    4. Max 80 watt total RF output power.
    5. High portable, back pack type.
    6. Internal battery, AC mains or DC power.
    7. External LCD display to indicate the battery level.
    8. Systematic Smart Cooling System.
    9. The general design of the system meets military requirements.

    Specifications:

    Output Interface Output Frequency
    CH1 -WIFI2.4G: 2400-2500MHz
    CH2 -WIFI5.8G: 5725-5825MHz
    CH3 -GPS: 1550 -1580MHz
    CH4 -GPS L2-L5:1100-1300MHz
    CH5 -GSM : 850-920MHz
    Jammed Signal Freqency: CDMA,GSM,2.4G WIFI,5.8G WIFI,GPS L1,GPS L2-L5,VHF,UHF....
    Type: Backpack jammer
    Output Channel: 5 output channels
    Output power: 90watt
    Parameter Shielding Range: Radius 5-2000meters (-75dBm,depending on the distance of base station in an open filed)
    Jammer Module Number 5
    HS Code: 8543709200
    Packing: Box
    Dimension (not including antennae):  30 *45 *15cm
    Antenna: Omnil Antenna
    Technical Parameters:
    Net Weight 12kg
    Total Weight 15 kg Aviation Case included
    Ambient Temperature -10ºC - +50ºC
    Relative Humidity ≤80%
    Power Consumption ≤360W
    Power Input AC100~240V,DC24V
    Battery 24V,30AH,Built-in standby battery
    can used for 90~180 minutes
    Antenna Parameters Omni antennas,gain:4~5dBi
    Switch Control Manually
    Equipment Chassis Metallic Paint
    Cooling system  Active "smart" with integrated incoming air filter
    Antennae type:  External high gain Omni directional Antenna

     We could supply customized service by your detail requirements about frequencies setting. 4-8 Frequency modules we can mix very flexibly.Frequency Ranges Selectable:

    CDMA 800: 851-894MHz
    GSM 900: 925-960MHz
    DCS 1800: 1800-1880MHz
    PHS 1900: 1920-1990MHz
    3G 2100(UMTS): 2110-2170MHz
    WIFI 2.4G Bluetooth: 2400-2500MHz
    WiFi3.6G: 3500-3600MHz
    Wi-Fi5.2G: 5100-5500MHz
    WIFI 5.8G 5725-5850MHz
    4G/LTE 700M: 725-770MHz(US)
    4G/LTE 800M: 790-826MHz(EU)
    4G Wimax: 2300-2400MHz(US)
    4G Wimax: 2620-2690MHz(EU)
    GPS/L1: 1500-1600MHz
    GPS/L2: 1200-1300MHz
    GPS/L3: 1300-1400MHz
    GPS/L4: 1100-1200MHz
    VHF: 135-174MHz
    UHF: 400-470MHz
    Lojack: 167-175MHz
    RF315: 315MHz
    RF433: 433MHz
    RF868: 868MHz

    Application:
    Built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,hostage negotiations,border control,etc...

    Terms and conditions:

    Delivery Time Schedule Delivery time is 3 weeks, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank.
    Payment Terms 40% advance, 40% after one month,20% before shipping.
    Terms of Delivery FOB HONGKONG/ USA.
    Warranty 36 months.
    Software Updates Free software updates will be provided for a period of 36 months.
    Extended Warranty After 4th Year : 5% of total for each years.

    Important Notes for Jamming Distance: The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.

    Important Notes for Portable Jammers with No Cooling Fan: Do not use the jammer when it is charging, or it will burn the jammer as it has no built-in fan. If because of this factor due to the broken of the jammer, the customer will lose the authority of free repairation .
